Toyota SPRINTER — HEATING & AIR CONDITIONING - SET

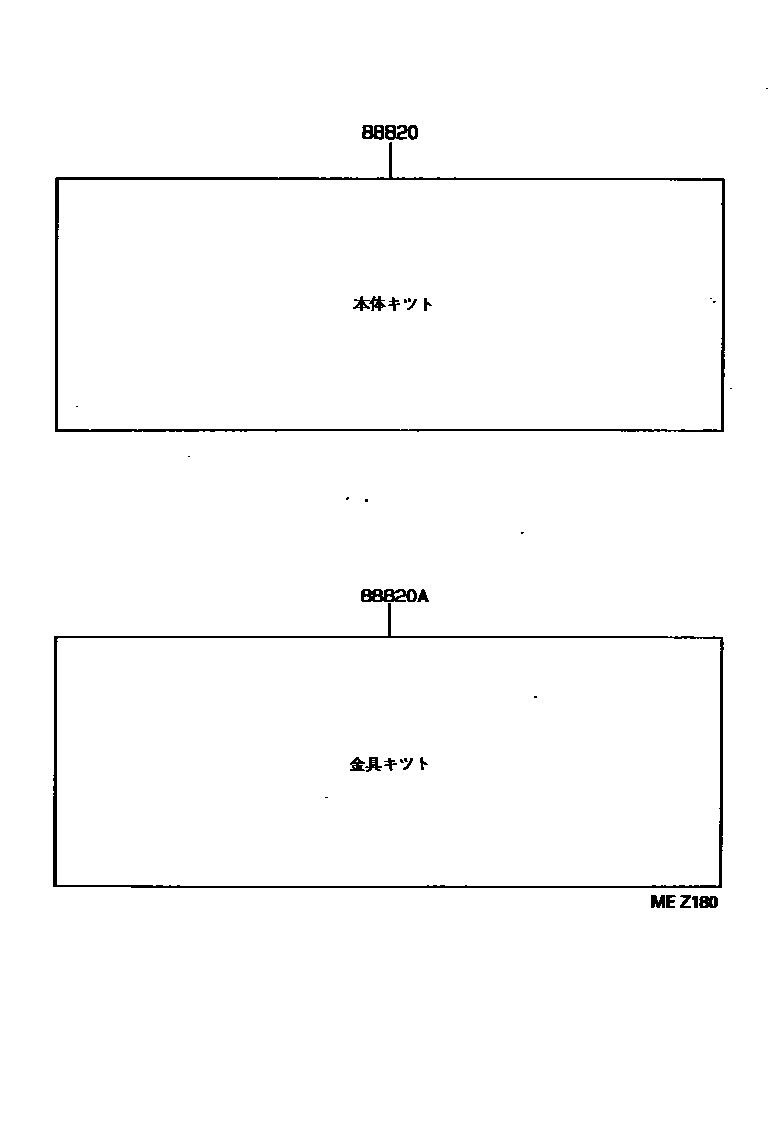

Parts diagram

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-12530i199505-199704

main88820-12570i199804-200008

88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2

main88830-1K830i199505-199704

main88830-1K840i199505-199704

main88830-1K850i199505-199704

main88830-1K860i199605-199704

main88830-1K890i199505-199704

main88830-1L170i199505-199605

main88830-1L180i199505-199704

main88830-1L420i199704-200008

main88830-1L430i199704-200008

main88830-1L440i199704-200008

main88830-1L470i199704-199804

main88830-1L480i199704-199804

main88830-1L500i199804-200008

2 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota SPRINTER

This section contains 2 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota SPRINTER. Key components include: AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2.
