Toyota SPRINTER — HEATING & AIR CONDITIONING - SET

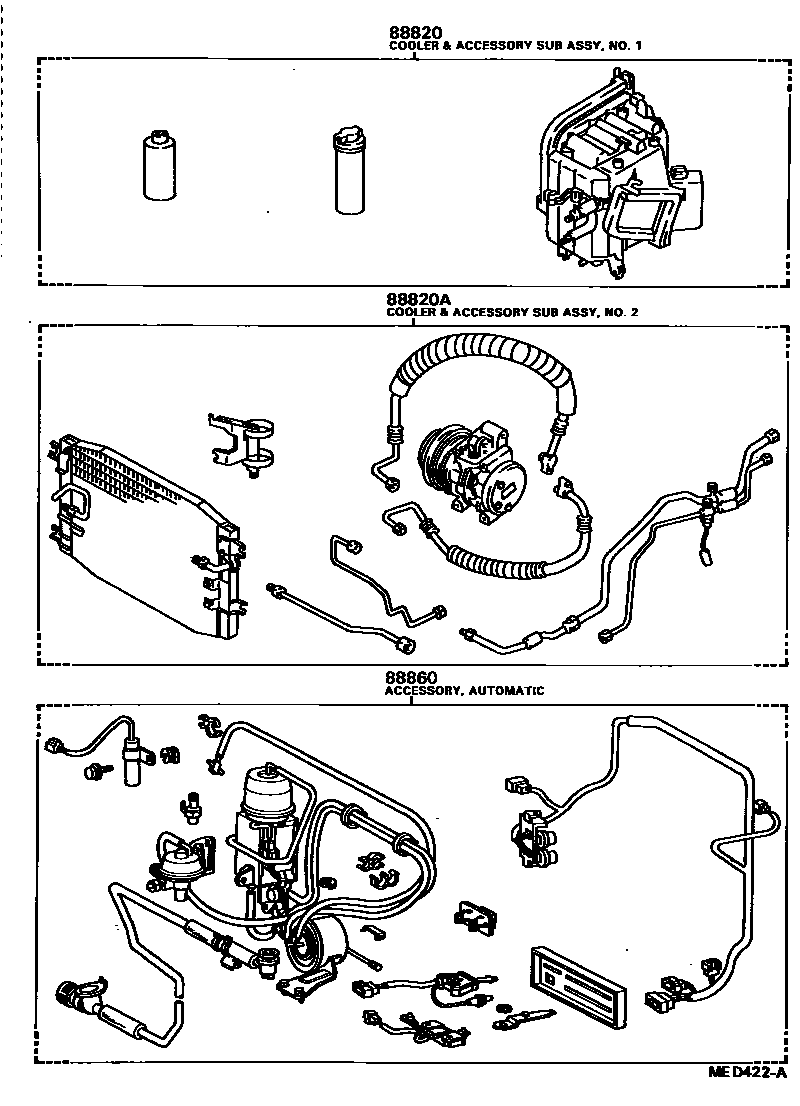

Parts diagram
88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
main88820-12010i198305-198505
main88820-12011i198505-198704
88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
main88830-12010i198305-198401
main88830-12020i198305-198505
main88830-12030i198305-198505
COOLER SWITCH=2-BUTTON; W/KNOCK CONTROL
main88830-12040i198305-198505
W/PS
main88830-12050i198305-198505
main88830-12320i198401-198505
COOLER SWITCH=1-BUTTON
main88830-12330i198401-198505
COOLER SWITCH=1-BUTTON
main88830-12350i198401-198505
main88830-12360i198410-198505
W/PS
main88830-12370i198410-198505
main88830-12410i198505-198604
W/PS,COOLER SWITCH=2-BUTTON
main88830-12411i198604-198704
W/PS,COOLER SWITCH=2-BUTTON
main88830-12420i198505-198604
W/PS,COOLER SWITCH=1-BUTTON
main88830-12421i198604-198704
W/PS,COOLER SWITCH=1-BUTTON
main88830-12430i198505-198604
COOLER SWITCH=2-BUTTON
main88830-12431i198604-198704
COOLER SWITCH=2-BUTTON
main88830-12440i198505-198604
COOLER SWITCH=1-BUTTON
main88830-12441i198604-198704
COOLER SWITCH=1-BUTTON
main88830-12460i198505-198704
main88830-12480i198505-198704
main88830-12490i198505-198704
W/PS
main88830-12500i198505-198704
main88830-12510i198505-198704
W/PS
main88830-12520i198505-198704
88860ACCESSORY ASSY, AUTOMATIC AIR CONDITIONER
main88860-12040i198305-198505
main88860-12050i198305-198505
main88860-12060i198305-198505
W/PS
main88860-12070i198305-198505
main88860-12080i198410-198505
W/PS
main88860-12090i198410-198505
main88860-12100i198505-198511
main88860-12101i198511-198704
main88860-12110i198505-198511
main88860-12111i198511-198704
main88860-12120i198505-198511
W/PS
main88860-12121i198511-198704
W/PS
main88860-12130i198505-198511
main88860-12131i198511-198704
main88860-12140i198505-198511
W/PS
main88860-12141i198511-198704
W/PS
main88860-12150i198505-198511
main88860-12151i198511-198704

3 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota SPRINTER

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota SPRINTER. Key components include: AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2, ACCESSORY ASSY, AUTOMATIC AIR CONDITIONER.
