Toyota SPRINTER — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1603

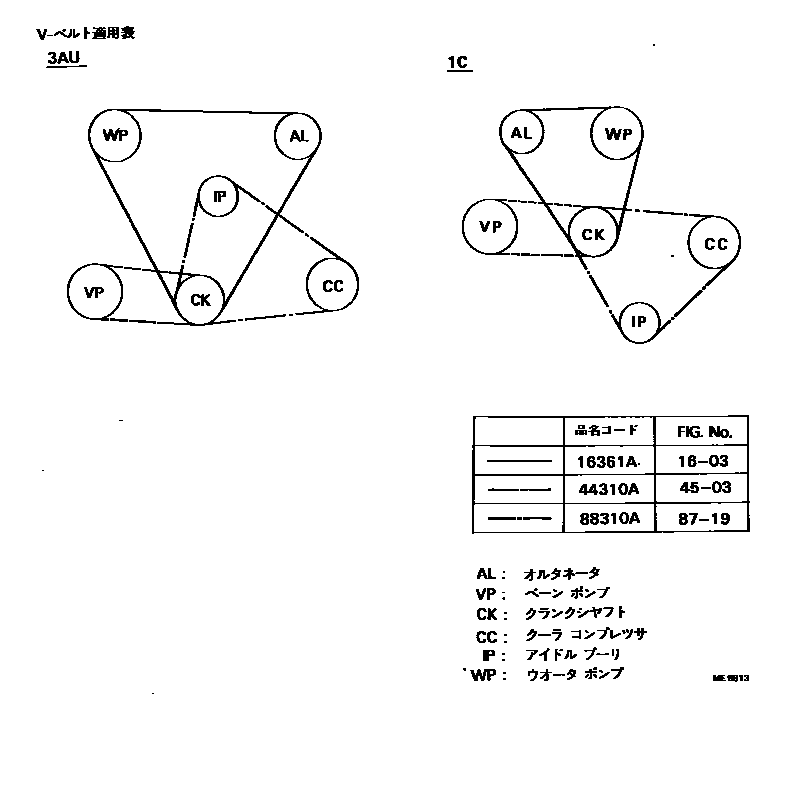

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02123i1C..CE70198206-198304

main99321-00850i2TGEU..TE71197903-198304

main99321-00870i4KU..KE70197903-198108

L=870

main99321-00885i13TU..TE70197908-198108

main99321-01000i3AU..AE70197903-198304

W/COOLER,L=100

sub99321-51000

main99321-50975i3AU..AE70198205-198304

L=975

main99321-50985i3AU..AE70197903-198205

L=985

main99332-60975i1C..CE70198202-198206

44310ABELT, V(FOR VANE PUMP)

main99332-00805iAE70198108-198304

main99332-01080iTE70..SE,ST,XL197908-198108

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00890iAE70197903-198304

main99322-00930iKE70197903-198304

main99322-00950iTE7#197903-198304

main99322-50830iCE70198202-198304

6 parts on this diagram · 3 diagrams in section
