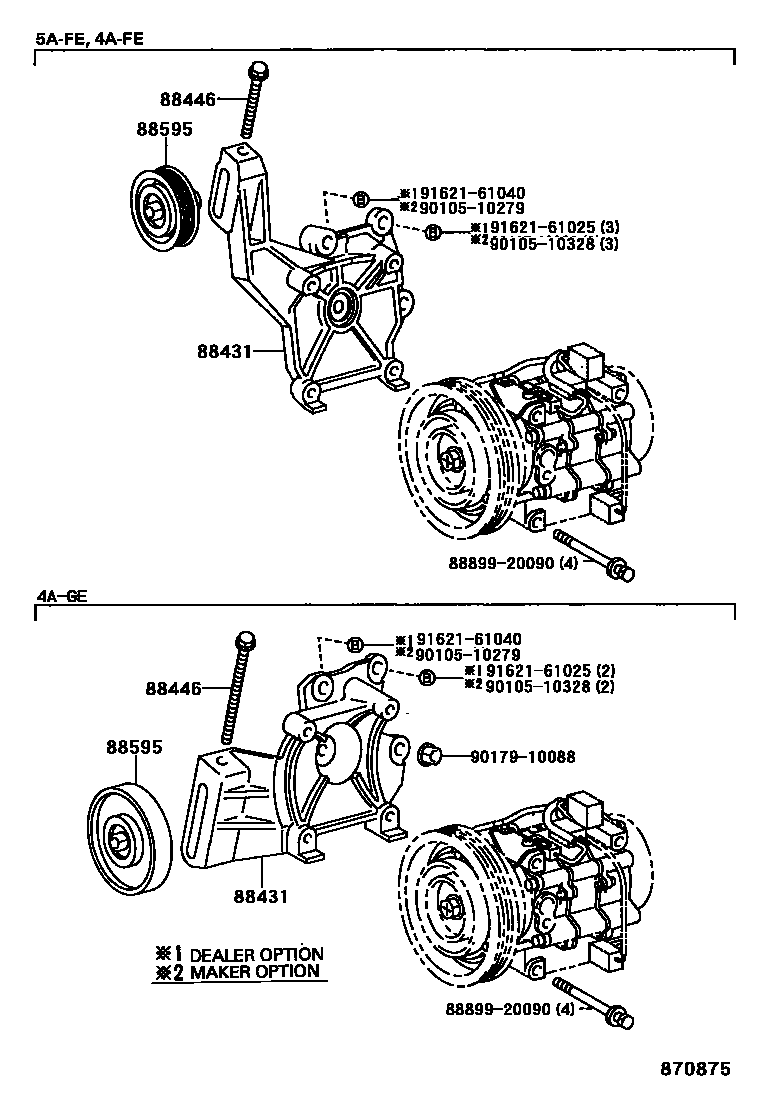

Toyota SPRINTER — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12370iEE10#199106-199305

main88431-12390iAE101..GT199106-199305

main88431-12500iAE10#..DX,LX,SEG,SEL,XE199106-199505

main88431-12510iCE10#199106-199812

main88431-12511iCE10#199812

main88431-12540iEE10#199305

main88431-12560iAE109199605

88446BOLT, IDLE PULLEY

main88446-12020iCE100..DX;CE106..CTD199106-199305

main88446-12030iEE101..DX;AE10#,EE102,106..CTD,DX,DXJ,LX,SEG,SEL,XE199106

main88446-35010iAE101..GT199106-199505

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12100iCE100..DX;CE106..CTD199106-199305

main88440-12170iEE101,106..CTD,DX199106-199305

main88440-12200iAE101..GT199305-199505

main88440-12210iEE101,102..DX,DXJ199402-199508

main88440-12230iEE102;CE106,107..CTD,DXJ199508-200206

main88440-17010iAE10#..DX,LX,SEG,SEL,XE199106-199505

main88440-20160iAE109199605-200203

main88440-20170iAE109200008-200206

main88440-32030iAE101..GT199106-199305

8889920090COVER, EVAPORATOR

main88899-20090

9010510279

main90105-10279

9010510328

main90105-10328

9017910088

main90179-10088

9162161025

main91621-61025

9162161040

main91621-61040

9 parts on this diagram · 3 diagrams in section
