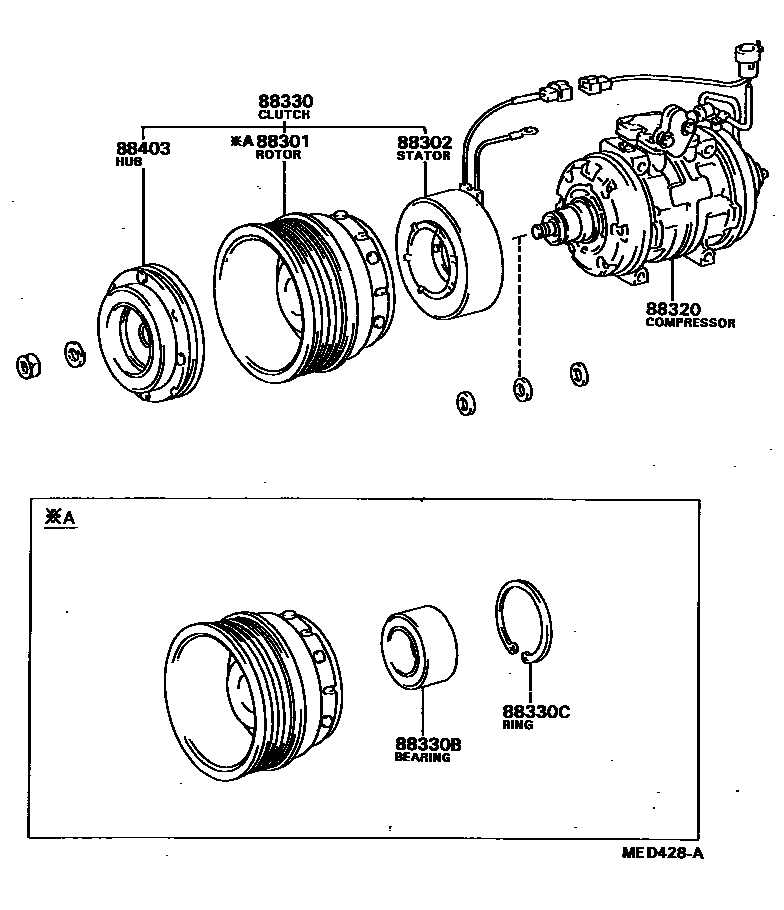

Toyota SPRINTER — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14030iAE8#..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main88412-28010iEE80198505-198704

main88412-32010iCE80198305-198704

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12090iCE80198305-198704

main88411-12100iAE8#..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main88411-12130iEE80198505-198704

main88411-14050iCE80198505-198704

W/PS

88320COMPRESSOR ASSY, COOLER

main88320-12250iCE80..SE,SX,XL198305-198505

W/PS

main88320-12260iCE80198305-198505

main88320-12290iAE8#198305-198401

main88320-12310iAE8#..DX,SE,SPD,SR,SX,XL,ZX198401-198505

main88320-12330iAE82..GT198410-198505

W/PS

main88320-12340iAE82..GT198410-198505

main88320-12350iCE80198505-198704

W/PS

main88320-12360iCE80198505-198704

sub88320-35H90

main88320-12370iAE82..GT198505-198704

W/PS

main88320-12380iAE82..GT198505-198704

main88320-12390iAE8#..DX,SE,XL,ZX198505-198704

88330CLUTCH ASSY, MAGNET

main88410-12160iCE80..SE,SX,XL198305-198505

W/PS

main88410-12170iCE80198305-198704

main88410-12180iAE8#..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main88410-12190iAE82..GT198410-198704

main88410-12220iEE80198505-198704

88330BBEARING, MAGNET CLUTCH

main90099-10133iCE80,EE80198305-198704

main90099-10135iAE8#..DX,SE,SPD,SR,SX,XL,ZX198305-198704

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iAE8#..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main90099-07118iCE80,EE80198305-198704

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iCE80,EE80198305-198704

sub88403-12030

main88403-14040iAE8#..DX,SE,SPD,SR,SX,XL,ZX198305-198704

7 parts on this diagram · 3 diagrams in section
