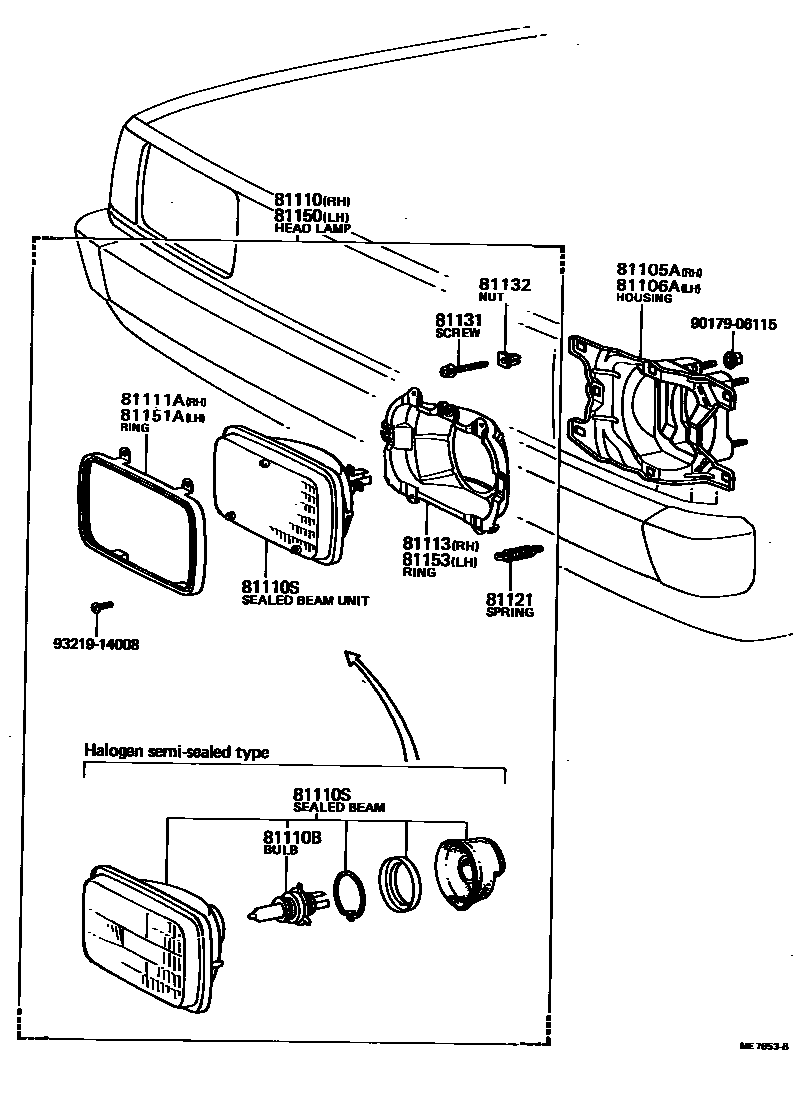

Toyota SPRINTER — HEADLAMP

0001 1 0002 1 0003 1

81105ABRACKET SUB-ASSY, HEADLAMP, RH

main53037-12030iAE70,KE70,TE7#..2D197903-198108

main53037-12050iAE70,KE70,TE7#..4D197903-198108

81106ABRACKET SUB-ASSY, HEADLAMP, LH

main53037-12050iAE70,KE70,TE7#..4D197903-198108

main53038-12030iAE70,KE70,TE7#..2D197903-198108

81110HEADLAMP ASSY, RH

main81110-80023iAE70,KE70,TE7#197903-198108

KOITO

sub81110-12570

main81110-80024iAE70,KE70,TE7#197903-198108

IKI

sub81110-12580

main81110-80025iAE70,KE70,TE7#197903-198108

SEMI-SEALED TYPE,HALOGEN

main81110-80165iAE70,CE70,KE70..4D198108-198304

main81110-80166iAE70,CE70,KE70,TE71..4D198108-198304

HALOGEN

main81110-80167iAE70,KE70,TE71..(DX,SE,SR,SX,TRS,XL)..2D198108-198304

main81110-80168iAE70,KE70,TE71..2D198108-198304

HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iAE70,CE70,KE70,TE7#197903-198304

sub90981-13058

main90981-13022×2iAE70,CE70,KE70,TE71..DX,SE,SPD,SR,SX,TRS,XL198108-198304

81110SSEALED BEAM UNIT, NO.1

main90981-04001×2iAE70,KE70,TE7#197903-198108

sub90981-04H21

sub90981-04H22

main90981-04002×2iAE70,KE70,TE7#197903-198108

12V 65/55W,IKI

sub90981-04029

main90981-04010×2iAE70,KE70,TE7#197903-198108

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-16010iAE70,KE70,TE7#197903-198108

IKI

main81111-16020iAE70,KE70,TE7#197903-198108

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81153-16010iAE70,KE70,TE7#197903-198108

IKI

sub81113-12581

main81153-16020iAE70,KE70,TE7#197903-198108

KOITO

sub81153-16220

81121SPRING, HEADLAMP TENSION

main81121-16010×2iAE70,KE70,TE7#197903-198108

IKI

sub81121-16230

main81121-16020×2iAE70,KE70,TE7#197903-198108

KOITO

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4iAE70,KE70,TE7#197903-198108

KOITO

main81131-16010×4iAE70,KE70,TE7#197903-198108

IKI

sub81131-16230

81132NUT, HEADLAMP SELF LOCKING

main90189-05013×4iAE70,KE70,TE7#197903-198008

main90189-05015×4iAE70,KE70,TE7#198008-198108

81150HEADLAMP ASSY, LH

main81150-80023iAE70,KE70,TE7#197903-198108

KOITO

sub81150-12500

main81150-80024iAE70,KE70,TE7#197903-198108

IKI

sub81150-12510

main81150-80025iAE70,KE70,TE7#197903-198108

SEMI-SEALED TYPE,HALOGEN

main81150-80162iAE70,CE70,KE70..4D198108-198304

main81150-80163iAE70,CE70,KE70,TE71..4D198108-198304

HALOGEN

main81150-80164iAE70,KE70,TE71..(DX,SE,SR,SX,TRS,XL)..2D198108-198304

main81150-80165iAE70,KE70,TE71..2D198108-198304

HALOGEN

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-16010iAE70,KE70,TE7#197903-198108

IKI

main81111-16020iAE70,KE70,TE7#197903-198108

KOITO

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-16010iAE70,KE70,TE7#197903-198108

IKI

sub81153-12511

main81113-16020iAE70,KE70,TE7#197903-198108

KOITO

sub81113-16220

9017906115

main90179-06115

9321914008

main93219-14008

15 parts on this diagram · 3 diagrams in section
