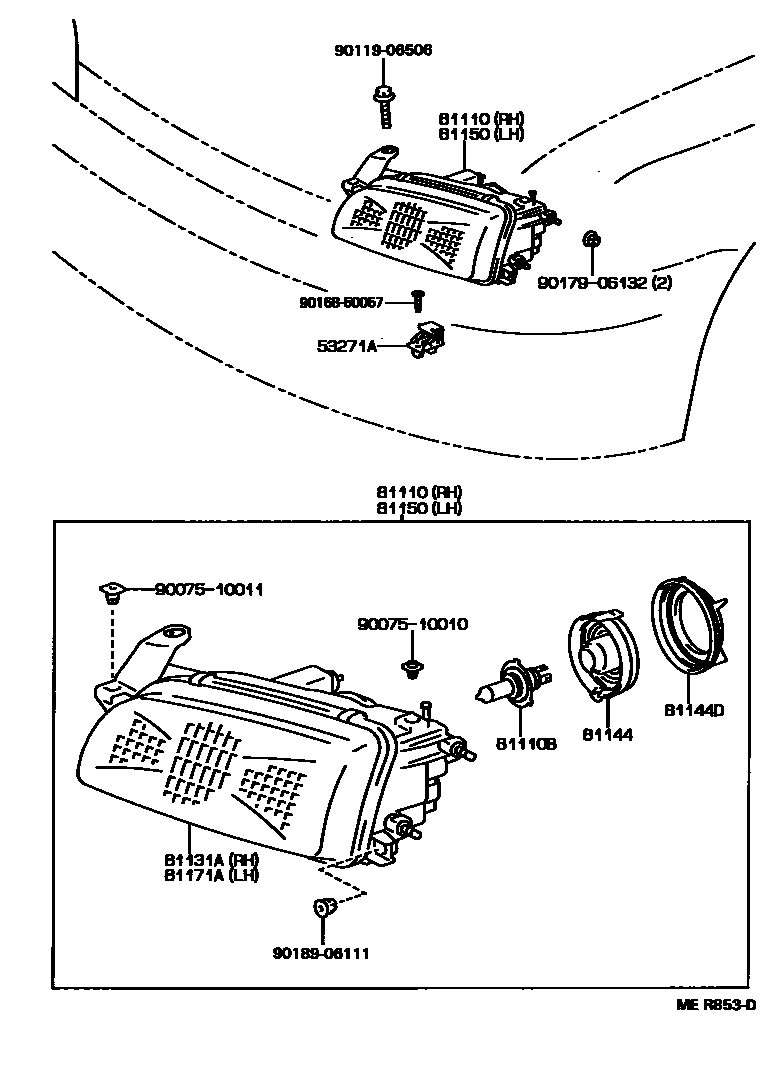

Toyota SPRINTER — HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-12040iAE10#,CE10#,EE10#199106-199309

sub53271-12060

main53271-12060iAE10#,CE10#,EE10#199309

81110HEADLAMP ASSY, RH

main81110-1E180iCE106,108,109,EE106,107,108199109-199305

sub81110-1E181

main81110-1E181iAE109,CE106,108,109,EE102,103,104,106,107,108199305-199704

sub81110-1E182

main81110-1E182iAE109,CE10#,EE10#199704

main81110-1E200iAE10#,CE100,104,EE101199106-199305

sub81110-1E201

main81110-1E201iAE10#,CE100,104,EE101199305-199505

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015iAE10#,CE10#,EE10#199106-199401

sub90981-13058

main90981-22004iAE10#,CE10#,EE10#199401

sub90981-13055

81131AUNIT, HEADLAMP, RH

main81130-1E180iCE106,108,109,EE106,107,108199109-199305

sub81130-1E181

main81130-1E181iAE109,CE106,108,109,EE102,103,104,106,107,108199305-199704

sub81130-1E182

main81130-1E182iAE109,CE10#,EE10#199704

main81130-1E200iAE10#,CE100,104,EE101199106-199305

sub81130-1E201

main81130-1E201iAE10#,CE100,104,EE101199305-199505

81144COVER, HEADLAMP, NO.1

main90075-99058iAE10#,CE10#,EE10#199106

81144DCAP, HEADLAMP LOCKING

main90075-99057iAE10#,CE10#,EE10#199106-199704

81150HEADLAMP ASSY, LH

main81150-1A440iCE106,108,109,EE106,107,108199109-199305

sub81150-1A441

main81150-1A441iAE109,CE106,108,109,EE102,103,104,106,107,108199305-199704

sub81150-1A442

main81150-1A442iAE109,CE10#,EE10#199704

main81150-1A460iAE10#,CE100,104,EE101199106-199305

sub81150-1A461

main81150-1A461iAE10#,CE100,104,EE101199305-199505

81171AUNIT, HEADLAMP, LH

main81170-1A440iCE106,108,109,EE106,107,108199109-199305

sub81170-1A441

main81170-1A441iAE109,CE106,108,109,EE102,103,104,106,107,108199305-199704

sub81170-1A442

main81170-1A442iAE109,CE10#,EE10#199704

main81170-1A460iAE10#,CE100,104,EE101199106-199305

sub81170-1A461

main81170-1A461iAE10#,CE100,104,EE101199305-199505

9007510010

main90075-10010

9007510011

main90075-10011

9011906506

main90119-06506

9016850057

main90168-50057

9017906132

main90179-06132

9018906111

main90189-06111

14 parts on this diagram · 1 diagram in section
