Toyota SPRINTER — HEADLAMP
8104FRONT CLEARANCE LAMP
81110HEADLAMP ASSY, RH
HALOGEN(WHITE)
HALOGEN
HALOGEN(YELLOW)
HALOGEN
HALOGEN
81110BBULB(FOR HEADLAMP, NO.1)
81112ARIM, HEADLAMP, RH
81135UNIT ASSY, HEADLAMP, RH
HALOGEN
HALOGEN
HALOGEN
HALOGEN
81144COVER, HEADLAMP, NO.1
W/COOLER
81150HEADLAMP ASSY, LH
HALOGEN(WHITE)
HALOGEN
HALOGEN(YELLOW)
HALOGEN
HALOGEN
81152ARIM, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
HALOGEN
HALOGEN
HALOGEN
HALOGEN
811181A250NUT, SPRING
main81118-1A250
811261A250PLATE, HEADLAMP
main81126-1A250
811341A250GASKET, HEADLAMP
main81134-1A250
8127820050COVER, LICENSE PLATE LAMP
main81278-20050
9007502702
main90075-02702
9011906276
main90119-06276
9018304016
main90183-04016
9018904022
main90189-04022
9354014012
main93540-14012
9356054016
main93560-54016

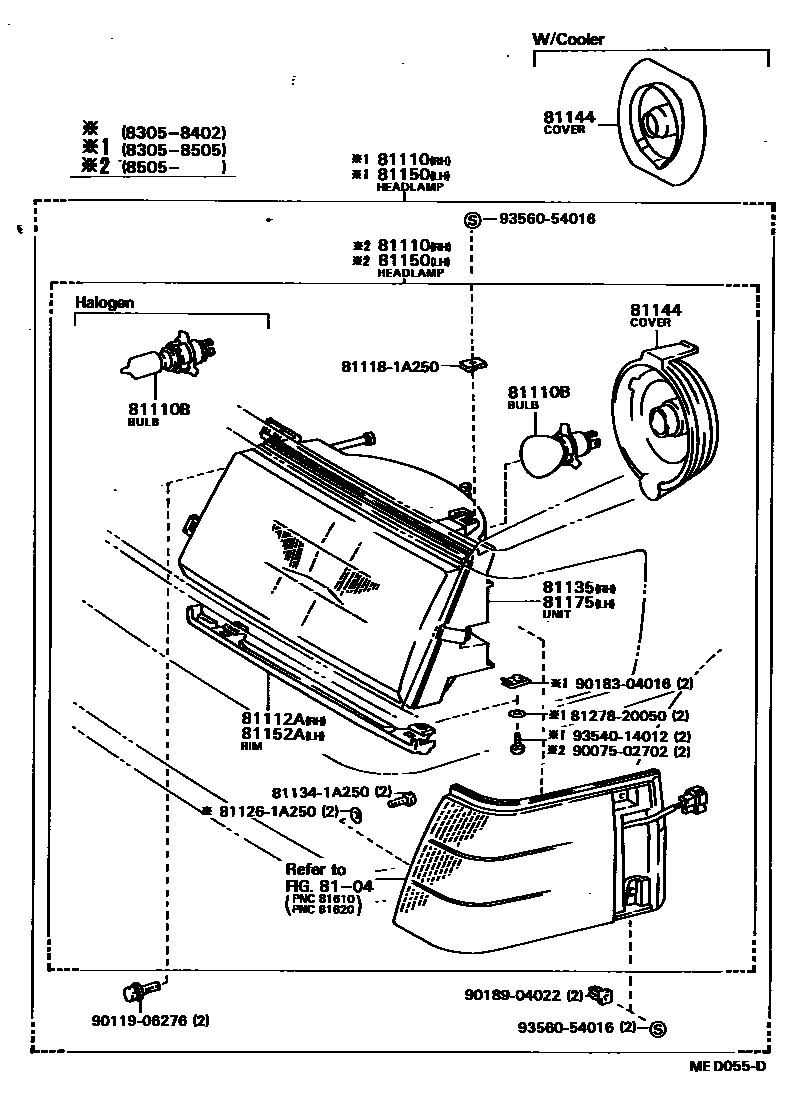

19 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota SPRINTER
This section contains 19 genuine Toyota parts for the HEADLAMP system of the Toyota SPRINTER. Key components include: FRONT CLEARANCE LAMP, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), RIM, HEADLAMP, RH, UNIT ASSY, HEADLAMP, RH.
