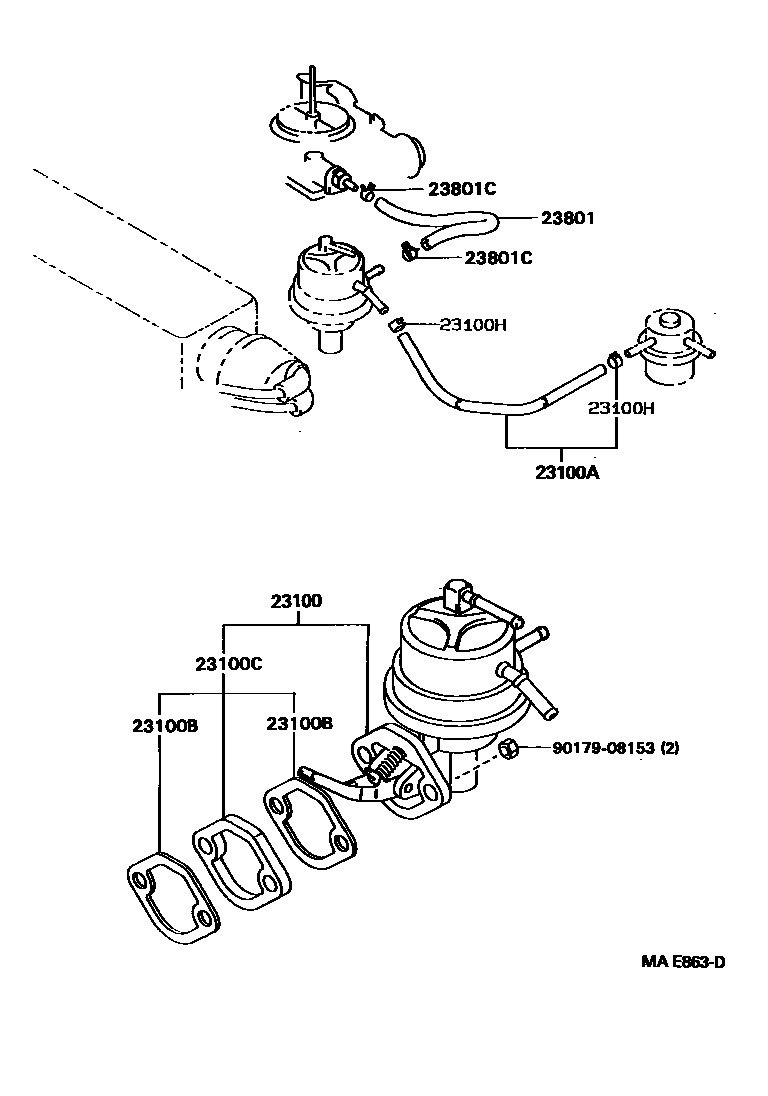

Toyota SPRINTER — FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-19255i199109-199401

23100AHOSE, FUEL

main23271-11180i199109-199401

23100BGASKET, FUEL PUMP

main90923-05024×2i199109-199401

23100CINSULATOR, FUEL PUMP

main23915-10021i199109-199401

23100HCLIP(FOR FUEL HOSE)

main96132-41100×2i199109-199401

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95333-06020i199109-199304

main95334-06015i199304-199401

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96135-41100×2i199109-199401

9017908153

main90179-08153

8 parts on this diagram · 1 diagram in section

FUEL PUMP & PIPE for Toyota SPRINTER

This section contains 8 genuine Toyota parts for the FUEL PUMP & PIPE system of the Toyota SPRINTER. Key components include: PUMP ASSY, FUEL, HOSE, FUEL, GASKET, FUEL PUMP, INSULATOR, FUEL PUMP, CLIP(FOR FUEL HOSE).
