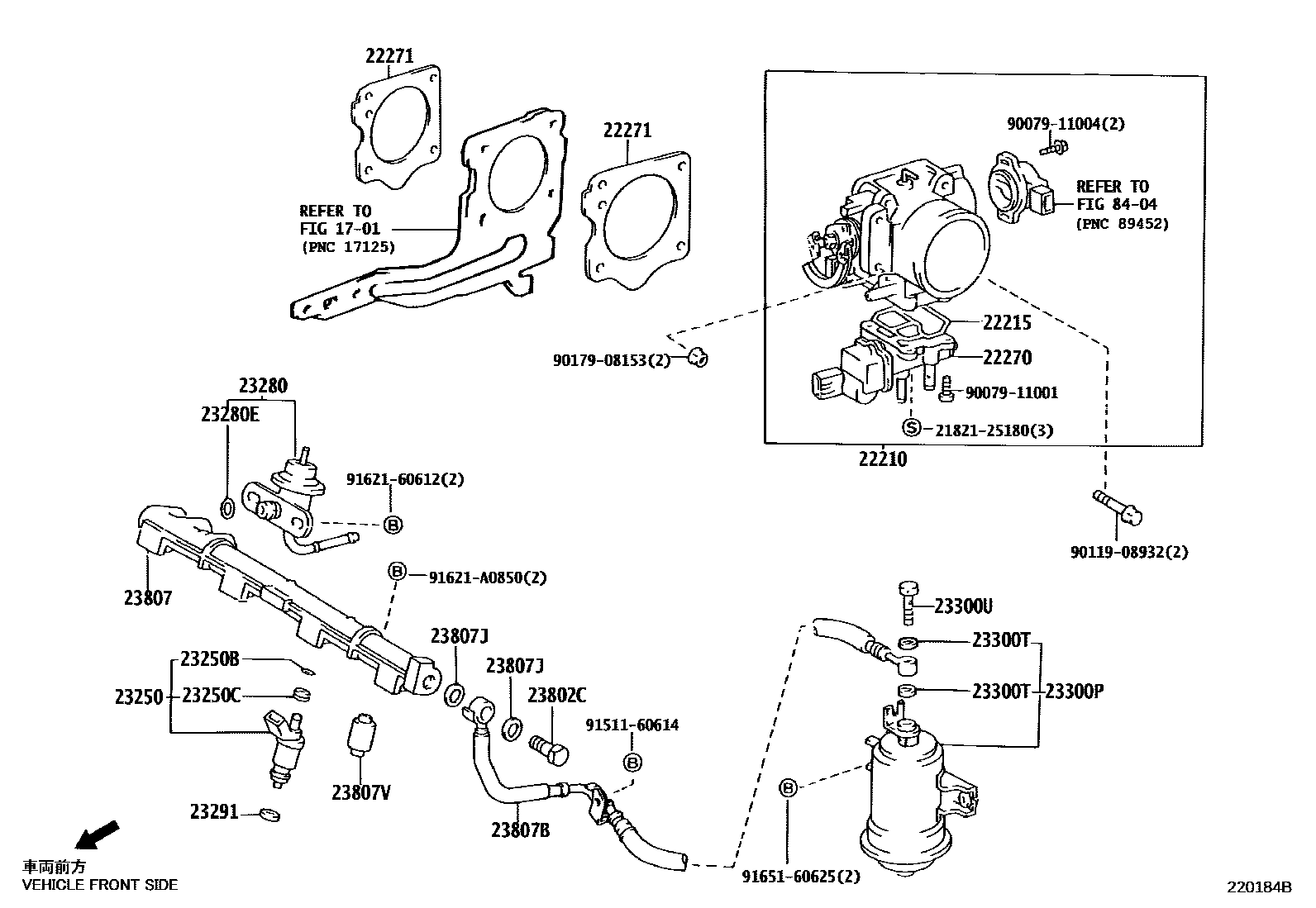

Toyota SPRINTER — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1701

22210BODY ASSY, THROTTLE

main22210-11270i4EFE..EE101,102..4F199106-199704

main22210-11280i4EFE..EE101,102..3FC199106-199704

main22210-11360i5EFE..EE103,104..MTM199401-199704

main22210-11370i5EFE..EE103,104..3FC199401-199704

sub22210-11280

main22210-11590i4EFE,5EFE..EE10#..MTM199704-200008

main22210-11600i4EFE,5EFE..EE10#..3FC199704-200008

main22210-11640i4EFE,5EFE..EE10#..5F200008-200206

main22210-11650i4EFE,5EFE..EE10#..3FC200008-200206

main22210-15070i4AFE,5AFE..AE10#199106-199704

main22210-16570i4AGE..AE101..4FC199106-199107

sub22210-16571

main22210-16571i4AGE..AE101..4FC199107-199412

sub22210-16572

main22210-16572i4AGE..AE101199412-199505

main22210-16620i4AGE..AE101..5F199106-199107

sub22210-16621

main22210-16621i4AGE..AE101..5F199107-199301

main22210-1A010i4AFE..AE109199704

22215GASKET, THROTTLE BODY COVER

main22215-11110i4EFE,5EFE..EE101,102,103,104199106-199704

main22215-16571i4AGE..AE101199106-199209

sub22215-16572

main22215-16572i4AGE..AE101199209-199505

main22215-74400i4EFE,5EFE..EE10#199106-200206

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-11020i4EFE,5EFE..EE10#199704-200206

main22270-15010i4AFE,5AFE..AE10#199106-199704

main22270-16030i4AGE..AE101199106-199505

main22270-16090i4AFE..AE109199704

22271GASKET, THROTTLE BODY

main22271-11020i4EFE,5EFE..EE101,102,103,104199106-199407

sub22271-11030

main22271-11030i4EFE,5EFE..EE10#199407-200206

main22271-15020i4AFE,5AFE..AE10#199106

23250INJECTOR ASSY, FUEL

main23209-11050i4EFE,5EFE..EE101,102,103,104199106-199704

main23209-11120i4EFE..EE102199704

main23209-11130i5EFE..EE103,104199704

main23209-15030i5AFE..AE100199106-199505

main23209-15040i4AFE..AE109199704

main23209-16150i4AFE..AE101,104,109199106-199704

main23209-19015i4AGE..AE101199106-199505

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i4AFE,5AFE..AE10#199106-199812

main90301-07024i4EFE,5EFE..EE10#199812

main90301-14006i4AGE..AE101199106-199505

main90301-17007i4AGE..AE101199106-199505

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i4EFE,5EFE..EE101,102,103,104199106-199705

23280REGULATOR ASSY, FUEL PRESSURE

main23280-11040i4EFE,5EFE..EE101,102,103,104199106

main23280-15020i4AFE,5AFE..AE10#199106-199308

main23280-15030i4AFE,5AFE..AE10#199308

main23280-16140i4AGE..AE101199106-199505

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AFE,5AFE..AE10#199106-199812

main90301-07024i4AFE..AE109199812

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i4AFE,5AFE..AE10#199106

main23291-75010i4AGE..AE101199106-199505

23300PFILTER, FUEL(FOR EFI)

main23300-19295i4EFE,5EFE..EE101,102,103,104199106

23300TGASKET(FOR FUEL FILTER)

main90430-12026i4EFE,5EFE..EE101,102,103,104199106

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4EFE,5EFE..EE101,102,103,104199106

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i4EFE,5EFE..EE101,102,103,104199305

main90401-08010i4EFE..EE101199106-199305

sub90401-08004

main90401-12097i4A#,5AFE..AE10#199106

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-11030i4EFE,5EFE..EE101,102,103,104199106

main23814-15040i4AFE,5AFE..AE10#199106

sub23814-15041

23807BHOSE, FUEL DELIVERY PIPE

main23271-15260i4AFE,5AFE..AE10#199106

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026i4AFE,5AFE..AE10#199106

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23890-11010i4EFE..EE102199106-199604

main23891-11020i5EFE..EE103,104199512-199604

main90561-08020i4AFE,5AFE..AE10#199106

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911001

main90079-11001

9007911004

main90079-11004

9011908932

main90119-08932

9017908153

main90179-08153

9151160614

main91511-60614

9162160612

main91621-60612

91621A0850

main91621-A0850

9165160625

main91651-60625

29 parts on this diagram · 9 diagrams in section
