Toyota SPRINTER — FUEL FILTER

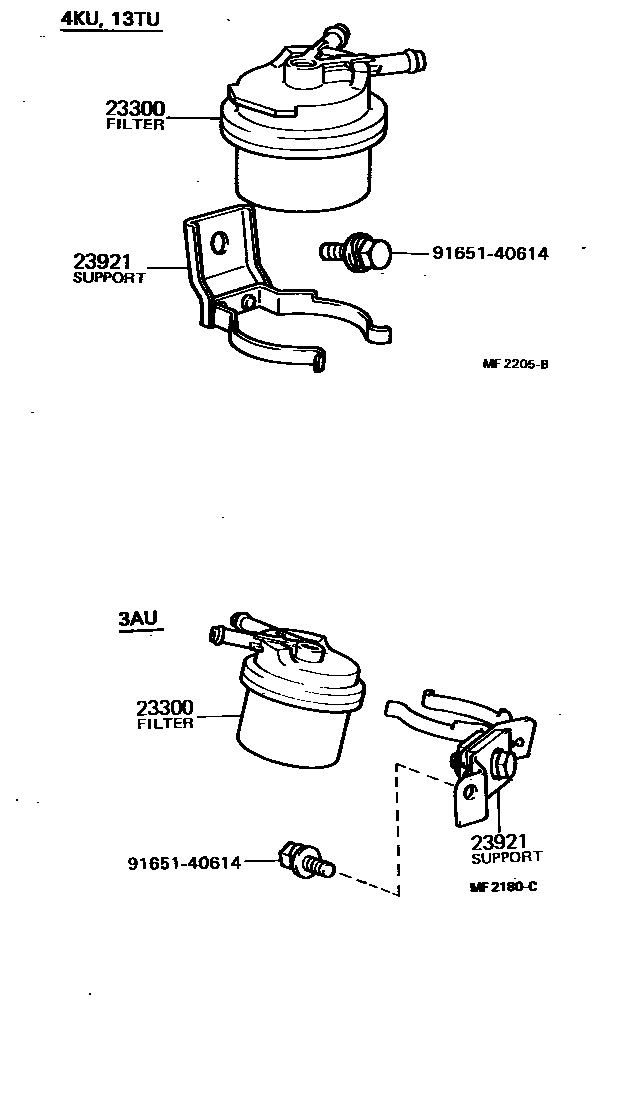

Parts diagram

23300FILTER ASSY, FUEL

main23300-15010i197903-198304

main23300-34100i197903-198304

23921SUPPORT, FUEL FILTER

main23921-15010i197903-198101

main23921-15011i198101-198304

main23921-64010i198202-198304

main90461-12003i197908-198108

9165140614

main91651-40614

3 parts on this diagram · 2 diagrams in section
