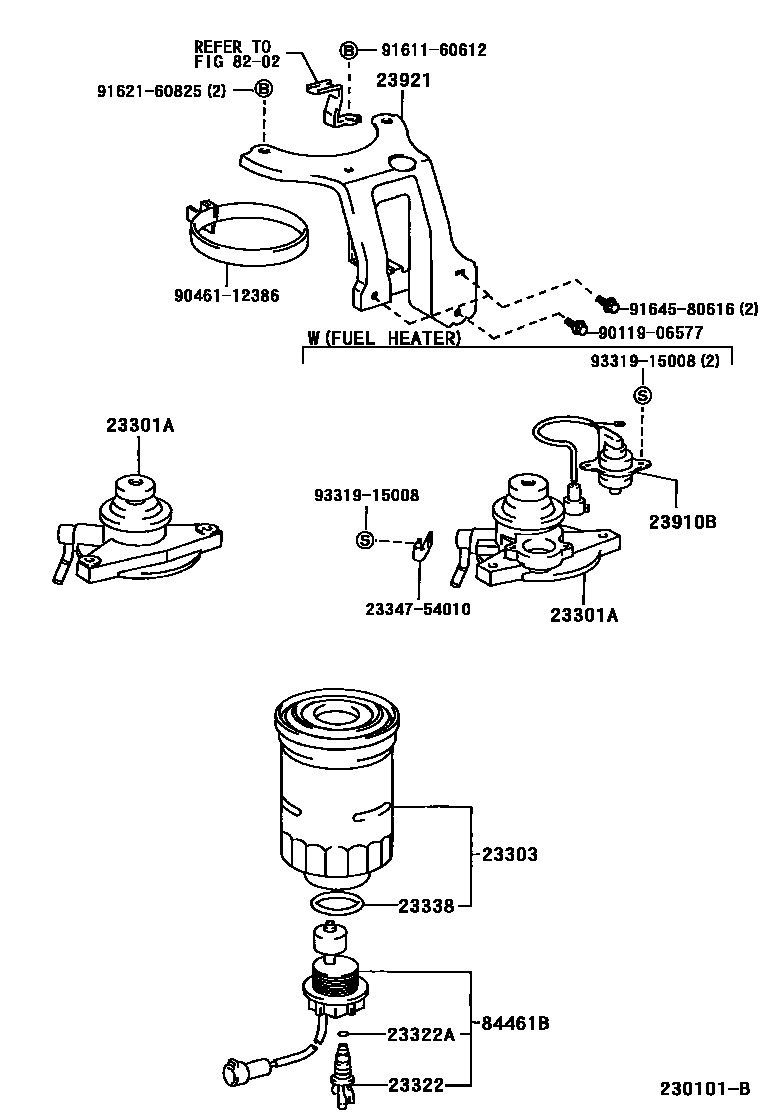

Toyota SPRINTER — FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23301-64300i2C,3CE..CE10#199106

main23301-64310i2C,3CE..CE10#199106

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2C,3CE..CE10#199106

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2C,3CE..CE10#199106

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2C,3CE..CE10#199106

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2C,3CE..CE10#199106

23910BHEATER ASSY, FUEL

main23910-54050i2C,3CE..CE10#199106

23921SUPPORT, FUEL FILTER

main23264-11040i2E,3E..EE106,107,108199109-199401

main23921-64180i2C..CE10#199106-199205

main23921-64181i2C..CE10#199205-199505

main23921-64182i2C,3CE..CE10#199505

8202

84461BSWITCH, LEVEL WARNING

main84461-12060iCE10#199106

2334754010CLIP, CORD

main23347-54010

9011906577

main90119-06577

9046112386

main90461-12386

9161160612

main91611-60612

9162160825

main91621-60825

9164580616

main91645-80616

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section
