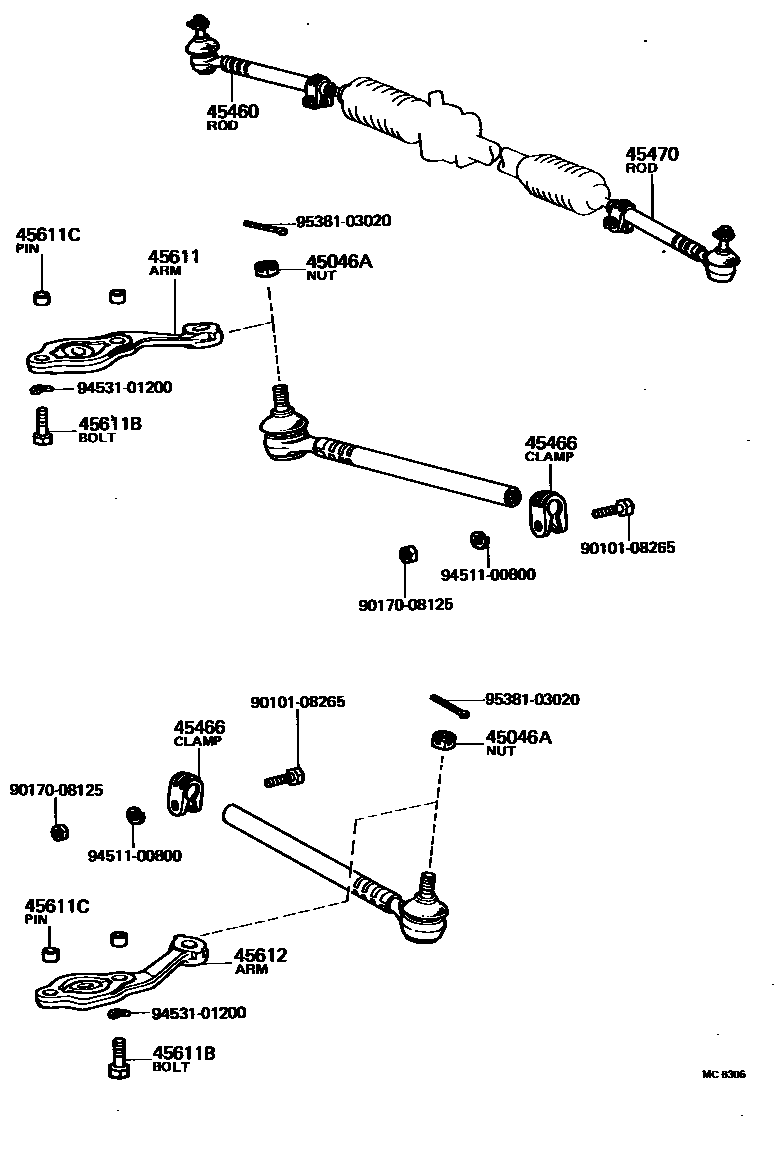

Toyota SPRINTER — FRONT STEERING GEAR & LINK

0001 1 0003 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29075iAE70,TE7#197903-198108

sub45046-29076

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAE70,CE70,KE70,TE7#197903-198304

45460ROD ASSY, TIE, RH

main45460-19095iAE70,TE7#197903-198108

sub45460-19135

main45460-19125iKE70197903-198108

45466CLAMP, TIE ROD END

main45466-22010×4iAE70,CE70,KE70,TE7#197903-198304

45470ROD ASSY, TIE, LH

main45460-19095iAE70,TE7#197903-198108

sub45460-19135

main45460-19125iAE70,KE70198108-198304

45611ARM, STEERING KNUCKLE, RH

main45611-12060iKE70197903-198108

main45611-12070iAE70197903-198108

main45611-12080iCE70,TE7#197903-198304

main45611-12140iAE70198108-198304

W/POWER STEERING

main45611-12910iAE70,KE70198108-198304

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-12295×4iAE70,CE70,KE70,TE7#197903-198304

45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90253-15016×4iAE70,CE70,KE70,TE7#197903-198304

45612ARM, STEERING KNUCKLE, LH

main45612-12060iKE70197903-198108

main45612-12070iAE70197903-198108

main45612-12080iCE70,TE7#197903-198304

main45612-12140iAE70198108-198304

W/POWER STEERING

main45612-12910iAE70,KE70198108-198304

9010108265

main90101-08265

9017008125

main90170-08125

9451100800

main94511-00800

9453101200

main94531-01200

9538103020

main95381-03020

14 parts on this diagram · 2 diagrams in section
