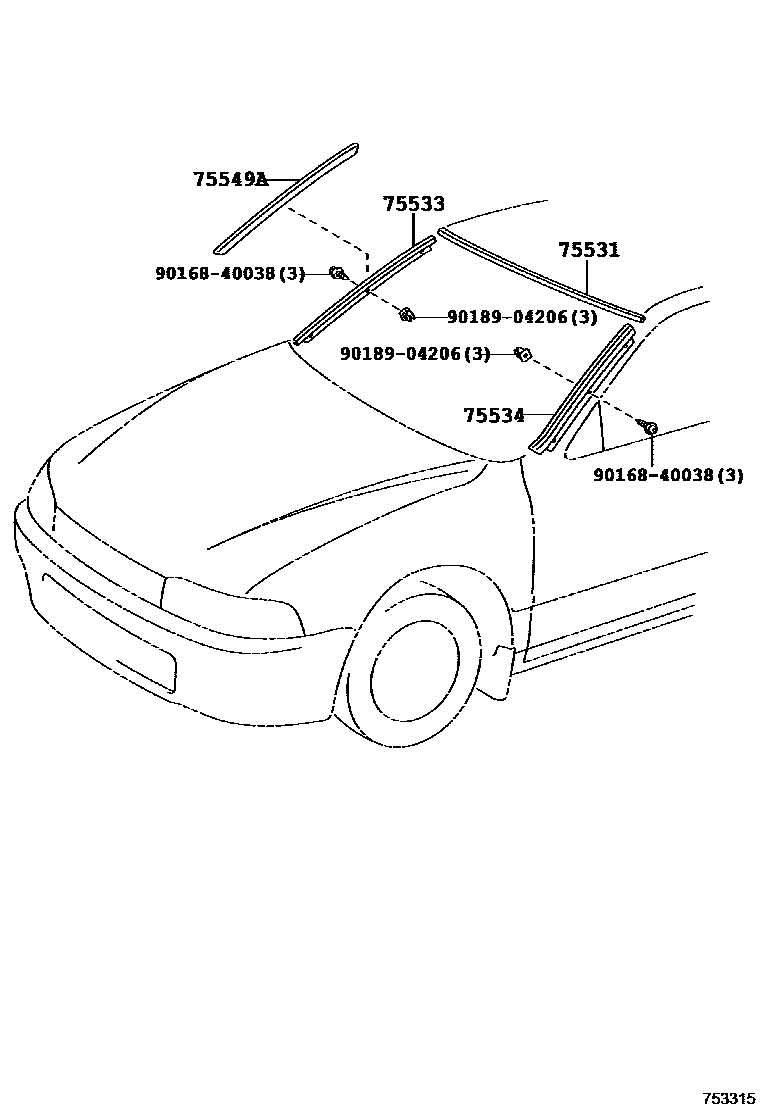

Toyota SPRINTER — FRONT MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75503-12020iCE106,108,109,EE106,107,108199109-199312

sub75503-12021

main75503-12040iCE106,108,109,EE106,107,108199206-199312

sub75503-12041

main75503-12080iAE109,CE10#,EE10#199505

main75503-12090iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199312

main75531-12490iAE100,CE100,EE101..DX199106-199505

main75531-12500iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75531-12510iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-12500iAE100,CE100,EE101..DX199106-199505

main75533-12510iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75533-12520iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-12430iAE100,CE100,EE101..DX199106-199505

main75534-12440iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75534-12450iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

75549AMOULDING, WINDSHIELD OUTSIDE SUB

main75539-12090iAE10#,CE100,104,EE101199106-199505

9016840038

main90168-40038

9018904206

main90189-04206

6 parts on this diagram · 2 diagrams in section
