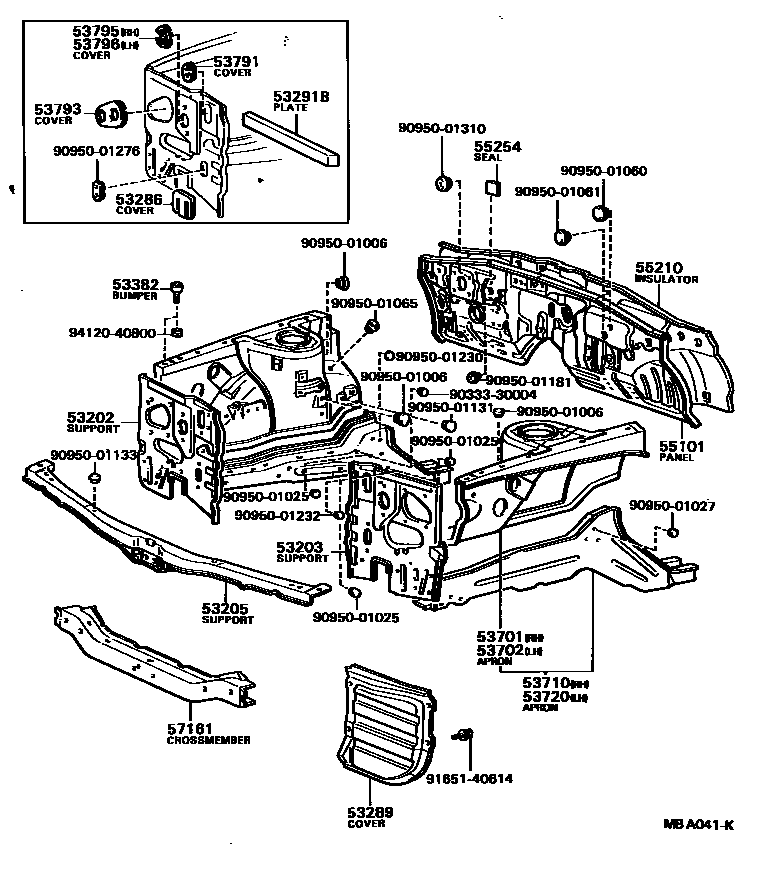

Toyota SPRINTER — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12140iAE70,TE71;KE70..3FC198108-198304

main53202-12150iKE70..MTM198108-198304

main53202-12190iCE70198202-198304

main53211-12100iAE70,TE7#197903-198108

main53211-12110iKE70197903-198108

main53211-12130iTE70197908-198108

W/POWER STEERING

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12140iAE70,TE71;KE70..3FC198108-198204

main53203-12141iAE70,TE71;KE70..3FC198204-198304

main53203-12150iKE70..MTM198108-198304

main53203-12180iCE70198202-198304

main53212-12080iAE70,TE7#197903-198108

main53212-12090iKE70197903-198108

main53212-12100iTE70197908-198108

W/POWER STEERING

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-12900iAE70,KE70,TE7#197903-198108

main53216-12902iAE70,CE70,KE70,TE71198108-198304

53286COVER, FRONT BUMPER ARM HOLE

main53285-12060×2iAE70,KE70197903-198108

main53285-12070×2iAE70,CE70,KE70,TE71..DX,SE,SPD,SR,SX,TRS,XL198108-198304

53289COVER, RADIATOR SIDE BAFFLE

main53289-12030iKE70197903-198108

53291BPLATE, RADIATOR COVER

main53291-12030iKE70..MTM198108-198304

main53291-12050iAE70,TE7#197903-198108

main53291-12060iCE70198202-198304

53382BUMPER, HOOD, FRONT

main53382-12040×2iAE70,CE70,KE70,TE7#197909-198304

main53382-20011×2iAE70,KE70,TE7#197903-197909

sub53382-90A00

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-12903iAE70,KE70,TE7#197903-198108

main53701-12908iAE70,KE70,TE71198108-198304

sub53701-12918

main53701-12909iCE70198202-198301

sub53701-12918

main53701-12910iCE70198202-198301

COLD SPEC

sub53701-12907

sub90950-01131

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12904iKE70197903-198108

sub53702-12908

main53702-12905iAE70197903-198108

main53702-12906iTE7#197903-198108

main53702-12907iTE70197908-198108

W/POWER STEERING

main53702-12910iAE70198108-198304

main53702-12911iTE71198108-198304

main53702-12912iKE70198108-198304

main53702-12916iCE70198202-198304

sub53702-12913

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53701-12290iAE70,KE70197903-198108

W/STEEL BUMPER

main53701-12330iAE70,KE70,TE7#..DX,GT,SE,SR,ST,TRR,XL197903-198108

W/URETHANE BUMPER

main53701-12331iTE71198108-198304

W/URETHANE BUMPER

sub53701-12520

main53701-12421iAE70,KE70198108-198304

W/STEEL BUMPER

main53701-12481iAE70,KE70..DX,SE,SR,SX,XL198108-198304

W/URETHANE BUMPER

main53701-12500iTE71..TRS198108-198304

W/STEEL BUMPER

main53701-12550iCE70..5F198301-198304

W/STEEL BUMPER

main53701-12560iCE70..5F198301-198304

W/STEEL BUMPER,COLD SPEC

main53701-12570iCE70..SE,XL198202-198301

W/URETHANE BUMPER

main53701-12580iCE70..4FC198301-198304

W/URETHANE BUMPER

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53702-12300iKE70197903-198108

W/STEEL BUMPER

main53702-12301iKE70198108-198304

W/STEEL BUMPER

main53702-12310iKE70..DX,XL197903-198108

W/URETHANE BUMPER

main53702-12311iKE70..DX,SE,SR,XL198108-198304

W/URETHANE BUMPER

main53702-12320iAE70197903-198108

W/STEEL BUMPER

main53702-12321iAE70198108-198304

W/STEEL BUMPER

main53702-12330iAE70197903-198108

W/URETHANE BUMPER

main53702-12331iAE70198108-198304

W/URETHANE BUMPER

main53702-12340iTE7#197903-198108

main53702-12341iTE71198108-198304

W/URETHANE BUMPER

main53702-12430iTE70197908-198108

W/POWER STEERING

main53702-12500iTE71..TRS198108-198304

W/STEEL BUMPER

main53702-12580iCE70198202-198304

W/STEEL BUMPER

main53702-12590iCE70..SE,XL198202-198304

W/URETHANE BUMPER

53791COVER, COOL AIR INTAKE HOLE

main53791-12020iTE71197903-198108

COLD SPEC

main53791-12030iTE71;KE70..3FC198108-198304

RH,COLD SPEC,W/AIRCON

53793COVER, HEADLAMP WIRE HARNESS HOLE, NO.1

main53793-12010×2iAE70,KE70,TE7#..2D197903-198108

main53793-12020×2iAE70,CE70,KE70,TE71198108-198304

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-12010iAE70,KE70,TE7#197903-198108

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53795-12010iAE70,KE70,TE7#197903-198108

55101PANEL SUB-ASSY, DASH

main55101-12360iTE7#197903-198202

main55101-12370iKE70197903-198108

main55101-12390iAE70197903-198108

main55101-12391iAE70198108-198304

main55101-12500iKE70198108-198304

main55101-12520iCE70,TE71198202-198304

55210INSULATOR ASSY, DASH PANEL

main55210-12100iAE70197903-198108

main55210-12110iCE70,TE7#..MTM197903-198304

main55210-12120iKE70197903-198108

main55210-12130iCE70..4FC198202-198304

55254SEAL, CLUTCH WIRE HOLE

main55255-12010iAE70,KE70..3FC198108-198304

57161CROSSMEMBER, FRONT

main57161-12902iAE70,CE70,KE70,TE7#197903-198304

sub57161-12903

9033330004

main90333-30004

9095001006

main90950-01006

9095001025

main90950-01025

9095001027

main90950-01027

9095001060

main90950-01060

9095001061

main90950-01061

9095001065

main90950-01065

9095001131

main90950-01131

9095001133

main90950-01133

9095001181

main90950-01181

9095001230

main90950-01230

9095001232

main90950-01232

9095001276

main90950-01276

9095001310

main90950-01310

9165140614

main91651-40614

9412040800

main94120-40800

35 parts on this diagram · 2 diagrams in section
