Toyota SPRINTER — FRONT FENDER APRON & DASH PANEL

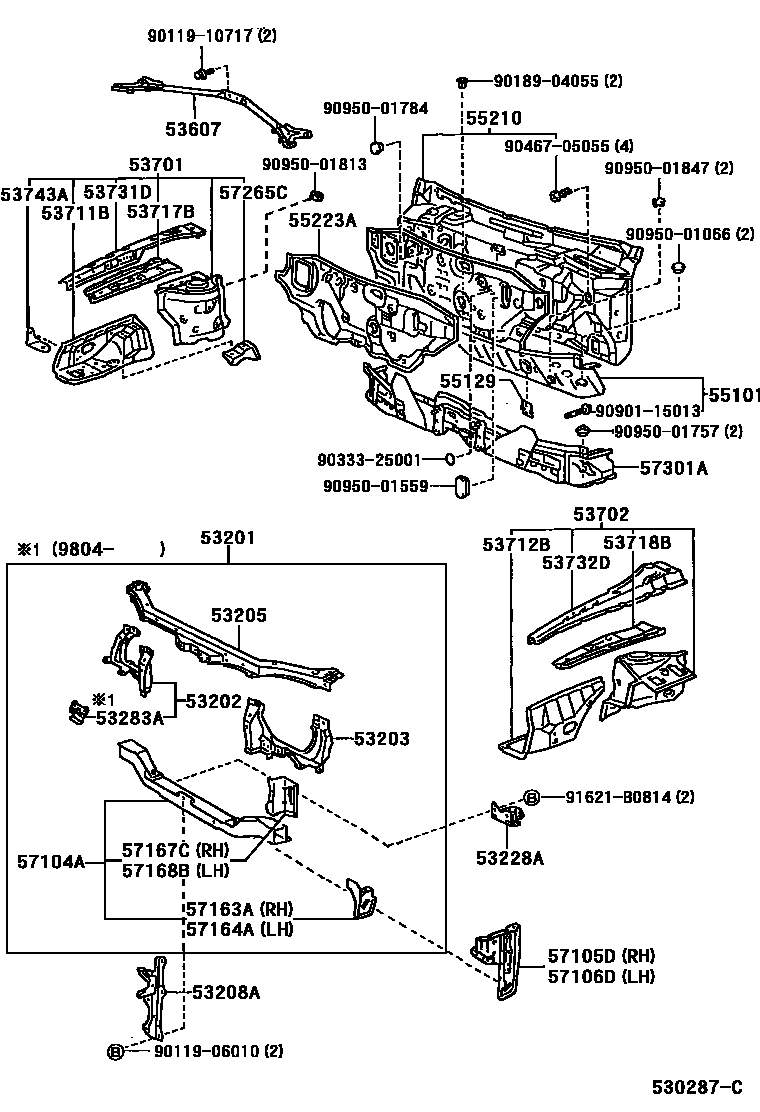

Parts diagram
53201SUPPORT SUB-ASSY, RADIATOR
main53201-1A080i199505-199704
main53201-1A130i199804-200008
main53201-1A140i199704-199804
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-12350i199704-199804
main53202-12390i199804-200008
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-12300i199505-199704
main53203-12340i199804-200008
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-12150i199505-199701
main53205-12151i199701-199704
sub53205-12180
53208ASUPPORT SUB-ASSY, HOOD LOCK
main53208-12420i199505-199704
main53208-12440i199704-200008
53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1
main53228-12130i199505-199704
53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER
main53283-12010i199804-200008
53607BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH
main53607-12040i199704-200008
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-1A052i199505-199704
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-1A042i199505-199704
53711BAPRON, FRONT FENDER, FRONT RH
main53711-12902i199505-199704
53712BAPRON, FRONT FENDER, FRONT LH
main53712-12182i199505-199704
53717BGUSSET, FENDER APRON, RH
main53717-12051i199505-199704
53718BGUSSET, FENDER APRON, LH
main53718-12051i199505-199704
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-12150i199505-199704
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-12130i199505-199704
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
main53743-12040i199704-200008
55101PANEL SUB-ASSY, DASH
main55101-1E250i199505-199704
main55101-1E270i199505-199704
main55101-1E340i199505-199704
sub90333-35002
main55101-1E360i199505-199704
sub90333-40001
main55101-1E410i199704-200008
sub55101-1E510
sub90333-40001
main55101-1E540i199704-200008
sub55101-1E510
sub90333-35002
sub90333-40001
main55101-1E560i199704-200008
sub55101-1E510
sub90333-40001
main55101-1E570i199704-200008
sub55101-1E510
main55101-1E580i199704-200008
sub55101-1E510
sub90333-35002
main55101-1E590i199704-200008
sub55101-1E510
sub90333-35002
sub90333-40001
55129COVER, DASH PANEL HOLE
main55129-12030×2i199505-199704
55210INSULATOR ASSY, DASH PANEL
main55210-12430i199505-199704
main55210-12460i199704-200008
55223AINSULATOR, DASH PANEL, OUTER
main55223-12071i199505-199704
main55223-12072i199905-200008
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-12030i199505-199704
main57104-12080i199704-200008
57105DPLATE SUB-ASSY, FRONT SIDE MEMBER, RH
main57105-12060i199505-199608
main57105-12120i199704-199910
sub57105-12121
main57105-12130i199910-200008
57106DPLATE SUB-ASSY, FRONT SIDE MEMBER, LH
main57106-12060i199505-199704
main57106-12110i199704-200008
57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
main57163-12120i199505-199704
main57163-12130i199704-200008
57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
main57164-12070i199505-199704
main57164-12080i199704-200008
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
main57167-12100i199505-199704
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
main57168-12100i199505-199704
57265CBRACKET, ENGINE MOUNTING, RH
main57265-12050i199505-199704
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
main57301-12150i199505-199704
sub57301-12180
sub94223-80600
main57301-13010i199704-200008
9011906010
main90119-06010
9011910717
main90119-10717
9018904055
main90189-04055
9033325001
main90333-25001
9046705055
main90467-05055
9090115013
main90901-15013
9095001066
main90950-01066
9095001559
main90950-01559
9095001757
main90950-01757
9095001784
main90950-01784
9095001813
main90950-01813
9095001847
main90950-01847
91621B0814
main91621-B0814

43 parts on this diagram · 1 diagram in section
