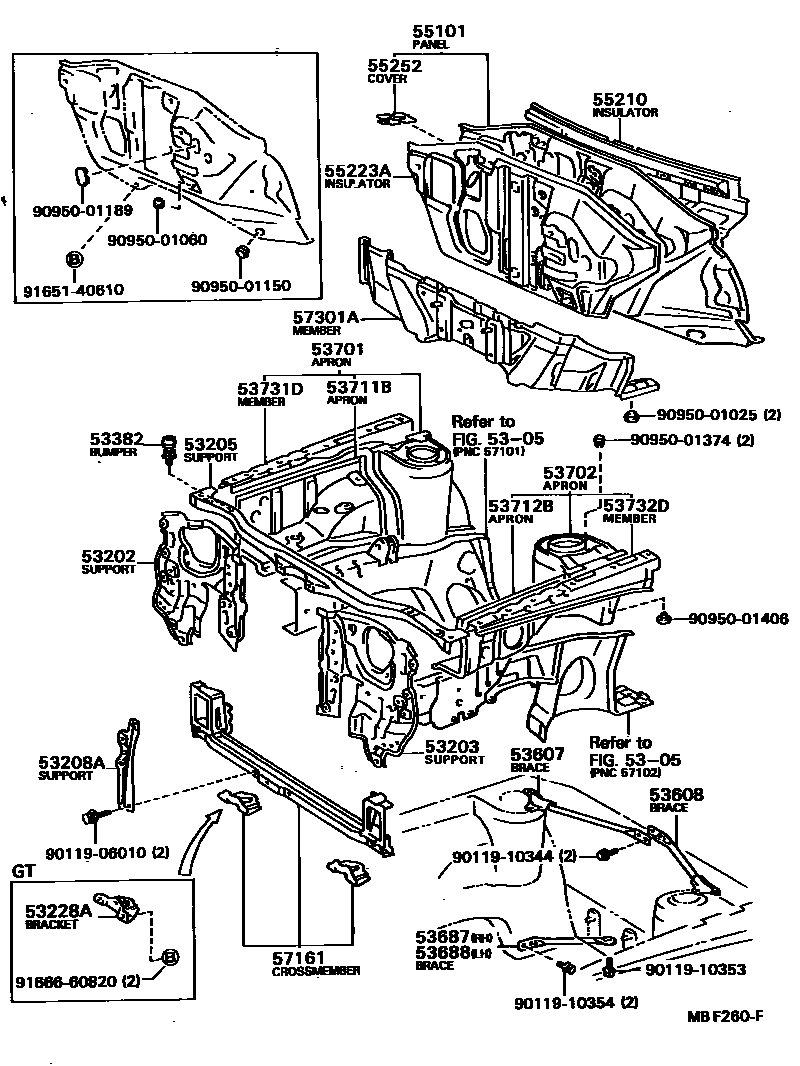

Toyota SPRINTER — FRONT FENDER APRON & DASH PANEL

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-12230iAE80..4F198305-198404

main53211-12231iAE81..DX198404-198505

W/KNOCK CONTROL

sub53211-12300

main53211-12240iAE81;AE80,82,CE80..3FC,4FC,5F198401-198404

main53211-12241iAE81;AE80,82,CE80..3FC,4FC,5F198404-198505

sub53211-12251

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12210iAE8#,CE80,EE80198305-198704

sub53203-12220

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-12909iAE81..DX198305-198401

main53216-12910iAE80,82,CE80..3FC,4FC,5F198305-198401

main53216-12913iAE81..DX198404-198505

W/KNOCK CONTROL

sub53216-12924

main53216-12914iAE81;AE80,82,CE80..3FC,4FC,5F198404-198505

main53216-12922iAE8#,CE80,EE80198505-198704

sub53216-12926

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-12150iAE8#,CE80198305-198405

main53215-12180iAE8#,CE80,EE80198405-198704

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-12070iAE82..GT198410-198704

53382BUMPER, HOOD, FRONT

main53382-12050×2iAE8#,CE80,EE80198305-198704

53607BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH

main53607-12010iAE82..GT198410-198704

53608BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH

main53608-12010iAE82..GT198410-198704

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-12010iAE82..GT198410-198704

53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH

main53688-12010iAE82..GT198410-198704

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-12710iAE8#,CE80,EE80198305-198704

sub53701-12770

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12710iAE8#,CE80,EE80198305-198704

sub53702-12760

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12180iAE8#,CE80,EE80198511-198704

main53711-20130iAE8#,CE80,EE80198305-198511

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12160iAE8#,CE80,EE80198511-198704

main53712-20200iAE8#,CE80,EE80198305-198511

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12110iAE8#,CE80198305-198505

main53731-12111iAE8#,CE80,EE80198505-198704

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12100iAE8#,CE80198305-198505

main53732-12101iAE8#,CE80,EE80198505-198704

55101PANEL SUB-ASSY, DASH

main55101-12590iEE80..SPD198505-198704

*52

main55101-12591iAE82..5F..GT198505-198704

main55101-12601iAE8#,EE80..ATM..(DX,SE,XL,ZX)198505-198609

main55101-12611iAE8#,CE80,EE80..ATM198609-198704

main55101-12670iAE8#,EE80..MTM..(DX,SE,SPD,XL,ZX)198505-198704

55210INSULATOR ASSY, DASH PANEL

main55210-12250iAE8#,CE80,EE80..MTM198305-198704

main55210-12260iAE8#,CE80,EE80..ATM198305-198704

55223AINSULATOR, DASH PANEL, OUTER

main55223-12020iCE80;AE82..GT198305-198704

55252COVER, DASH PANEL HOLE

main55129-16010×2iAE8#,CE80,EE80198305-198704

57161CROSSMEMBER, FRONT

main57161-12907iAE82..GT198410-198704

sub57161-12910

main57161-12908iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198407-198704

sub57161-12909

main57161-20903iAE8#,CE80198305-198407

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-12010iAE8#,CE80198305-198401

main57301-12040iAE8#,CE80198401-198402

main57301-12041iAE82..GT198410-198704

main57301-12090iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198402-198704

9011906010

main90119-06010

9011910344

main90119-10344

9011910353

main90119-10353

9011910354

main90119-10354

9095001025

main90950-01025

9095001060

main90950-01060

9095001150

main90950-01150

9095001189

main90950-01189

9095001374

main90950-01374

9095001406

main90950-01406

9165140610

main91651-40610

9166660820

main91666-60820

35 parts on this diagram · 1 diagram in section
