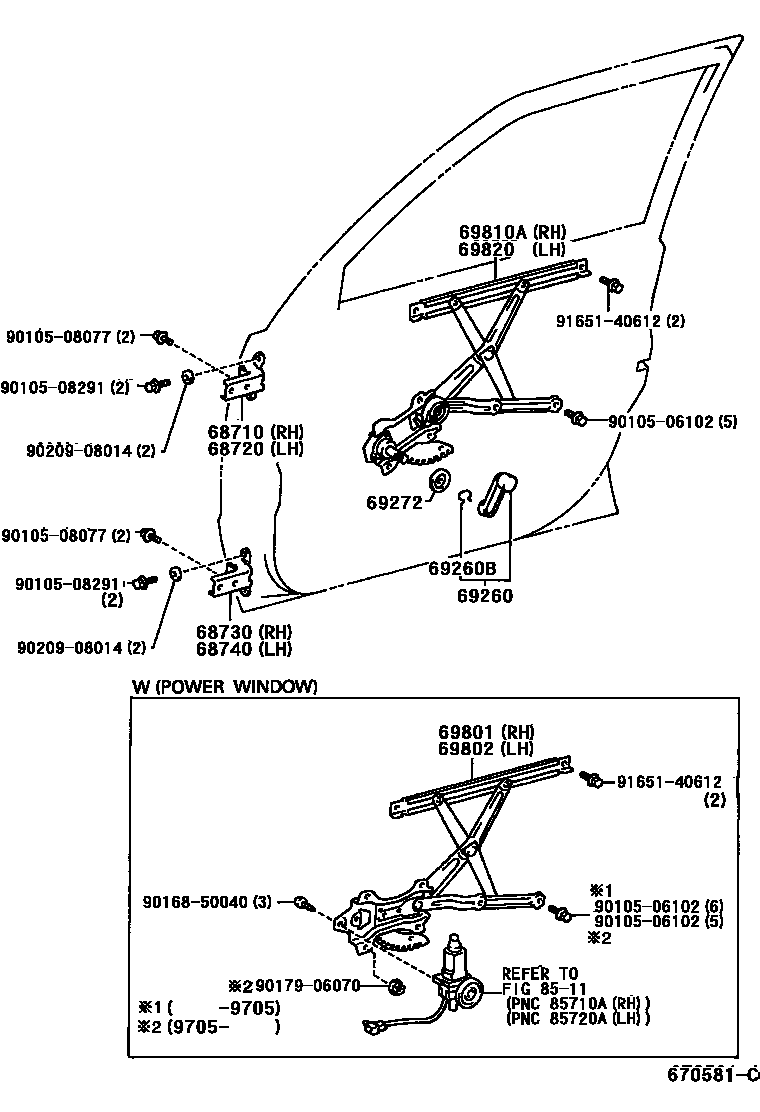

Toyota SPRINTER — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iAE11#,CE11#,EE111199505-199508

main68710-12140iAE11#,CE11#,EE111199508-199510

main68710-12150iAE11#,CE11#,EE111199510-199704

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iAE11#,CE11#,EE111199505-199508

main68720-12140iAE11#,CE11#,EE111199508-199510

main68720-12150iAE11#,CE11#,EE111199510-199704

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12130iAE11#,CE11#,EE111199505-199508

main68720-12140iAE11#,CE11#,EE111199508-199510

main68720-12150iAE11#,CE11#,EE111199510-199704

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12130iAE11#,CE11#,EE111199505-199508

main68710-12140iAE11#,CE11#,EE111199508-199510

main68710-12150iAE11#,CE11#,EE111199510-199704

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-B2×2iAE110,114,CE11#,EE111..LX,XEVIN199804-200008

MD.CHARCOAL,TRIM1#

main69260-22030-B3×2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

main69260-22030-E2×2iAE110,114,CE11#,EE111..XEVIN199505-199704

OAK,TRIM4#

main69260-22030-P0×2iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

SHADOW GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12170iAE11#,CE11#,EE111199704-200008

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12170iAE11#,CE11#,EE111199505-199704

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-12470iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

main69810-12560iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-12470iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

main69820-12560iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

8511

9010506102

main90105-06102

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

9017906070

main90179-06070

9020908014

main90209-08014

9165140612

main91651-40612

19 parts on this diagram · 1 diagram in section
