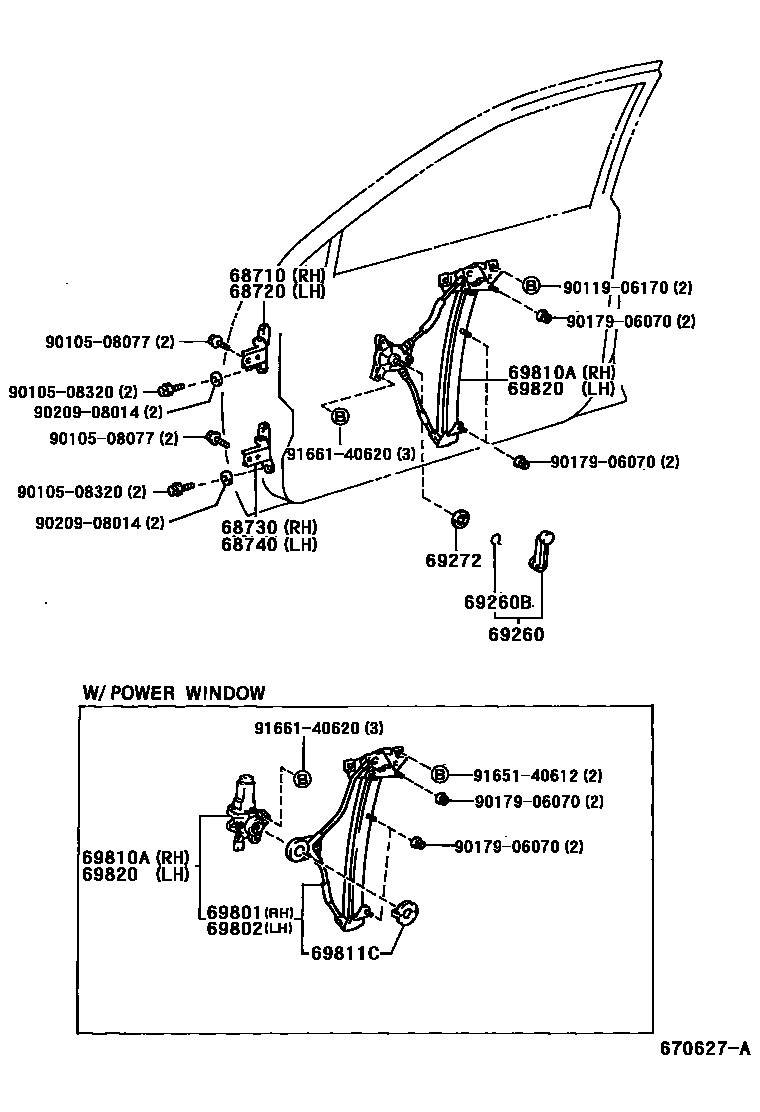

Toyota SPRINTER — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iAE10#,CE10#,EE10#199106-199510

main68710-12150iAE109,CE10#,EE10#199510

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iAE10#,CE10#,EE10#199106-199510

main68720-12150iAE109,CE10#,EE10#199510

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12090iAE10#,CE10#,EE10#199106-199510

main68730-12110iAE109,CE10#,EE10#199510

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12090iAE10#,CE10#,EE10#199106-199510

main68740-12110iAE109,CE10#,EE10#199510

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-07×2iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub69260-16010

main69260-10040-42×2iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub69260-16010

main69260-10040-43×2iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL199106-199704

GRAY,TRIM1#

sub69260-16010

main69260-10040-P0×2iAE109,CE10#,EE10#199704

SHADOW GRAY,TRIM1#

sub69260-16010

main69260-12080-03×2iAE100,104,CE100,104,EE101..XE199106-199505

SHADOW GRAY,TRIM1#

main69260-12080-12×2iAE100,104,CE100,104,EE101..XE199106-199505

TAUPE,TRIM9#

main69260-12080-14×2iAE100,CE100,EE101..XE199106-199108

DARK BLUE

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iAE100,104,CE100,104,EE101..XE199106-199505

main90520-01274iAE109,CE106,108,109,EE102,103,104..DX,L,XL199401-199705

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL199106

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12140iAE10#,CE100,104..GT,SEG,SEL,XE199106-199205

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12140iCE106,108,109,EE103,104..L,XL199401

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02032iAE109,CE10#,EE10#199704

main69810-12380iAE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL199106-199310

main69810-12381iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL199310-199607

main69810-12382iAE109,CE10#,EE10#199607-199704

main69810-12390iAE109,CE106,109,EE102,103..DX,XL;AE100,104,CE100,104,108,EE101,104..L,LX,XE199401-199705

main69810-12540iCE10#..DX,L,XL199804-200008

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-32040×2iAE109,CE105,106,107,109,EE102,103..DX,XL;AE100,101,104,CE100,102,104,108,EE101,104..GT,L,LX,SEG,SEL,XE199401-200008

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02032iAE109,CE10#,EE10#199704

main69820-12380iAE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL199106-199310

main69820-12381iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL199310-199607

main69820-12382iAE109,CE10#,EE10#199607-199704

main69820-12390iAE100,104,CE100,104..XE199106-199205

main69820-12580iCE10#..DX,L,XL199804-200008

9010508077

main90105-08077

9010508320

main90105-08320

9011906170

main90119-06170

9017906070

main90179-06070

9020908014

main90209-08014

9165140612

main91651-40612

9166140620

main91661-40620

19 parts on this diagram · 1 diagram in section
