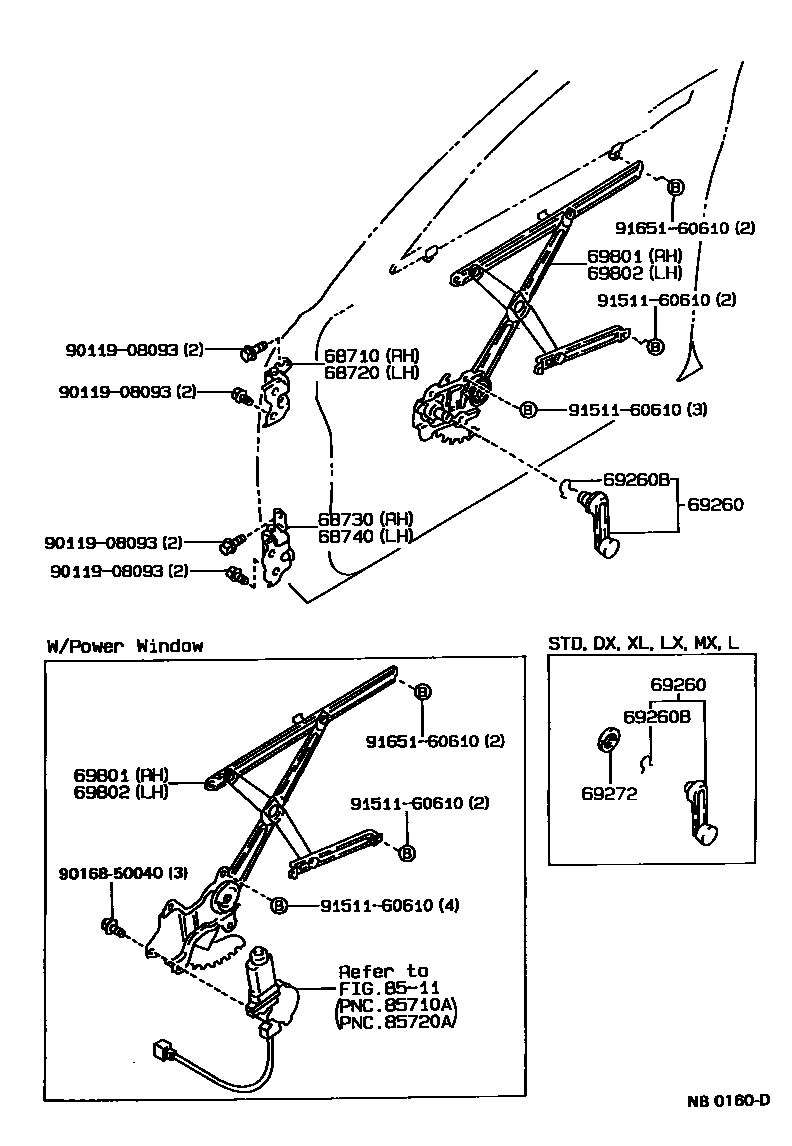

Toyota SPRINTER — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12100iAE9#,CE9#,EE9#198705-199108

sub68710-12110

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12100iAE9#,CE9#,EE9#198705-199108

sub68720-12110

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12060iAE9#,CE9#,EE9#198705-199108

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12060iAE9#,CE9#,EE9#198705-199108

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-12iAE91,95,CE90,95,EE90..MX198705-199106

MAROON,TRIM3#

sub69260-10040

sub69260-16010

main69260-10040-43iAE91,95,CE9#,EE9#..AV1,CTD,DX,L,LX,MX,RVS,STD,XL198705-199108

GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-55iCE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,L,LX,MX,RVS198705-198908

DARK BEIGE,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-58iAE91,95..AV1,DX,L,LX,MX,RVS198905-199108

DARK BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-12080-02iAE91,95,CE90..SE..(CBR,DSL)198705-199106

MAROON,TRIM3#

sub69260-12080

main69260-12080-03iAE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..AV2,GT,SE198705-199106

SHADOW GRAY,TRIM1#

sub69260-12080

main69260-12080-04iAE91..XS;AE91,95,CE90,95..SE..(DSL,EFI)198908-199106

BLUE,TRIM8#

sub69260-12080

main69260-12080-05iAE91..XI;AE91,95,CE90..(G,SE)..(CBR,DSL)198705-198905

DARK BEIGE,TRIM4#

sub69260-12080

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAE91,95,CE9#,EE9#..AV1,CTD,DX,L,LX,MX,RVS,STD,XL198705-199108

main90520-01005iAE91..XS;AE9#,CE90..(AV2,GT,SE)..(DSL,EFI)198705-199106

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iAE91,95,CE9#,EE9#..AV1,CTD,DX,L,LX,MX,RVS,STD,XL198705-199108

sub69268-20020

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12100iAE91..G;AE91..SE..EFIS198705-199106

main69801-12100iAE95,CE90,95..SE198705-199106

main69801-12100iAE91..SE..EFI198805-198905

main69801-12100iAE91..SE..EFIS198908-199106

main69801-12100iAE95,CE90,95..SE199005-199106

main69801-12100iAE92199101-199106

main69810-12290iAE91..4D..EFI198705-199108

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12100iAE91..SE..EFI198705-199106

main69802-12100iAE91..SE..EFI198805-198905

main69802-12100iAE91,95,CE90,95..SE..(DSL,EFI)198705-199106

main69802-12100iAE91..SE..EFIS198908-199106

main69802-12100iEE90..MX199101-199106

main69802-12100iAE95,CE90,95..SE199005-199106

main69820-12290iAE91..L,XS198705-199108

8511

9011908093

main90119-08093

9016850040

main90168-50040

9151160610

main91511-60610

9165160610

main91651-60610

14 parts on this diagram · 1 diagram in section
