Toyota SPRINTER — FRONT DOOR WINDOW REGULATOR & HINGE

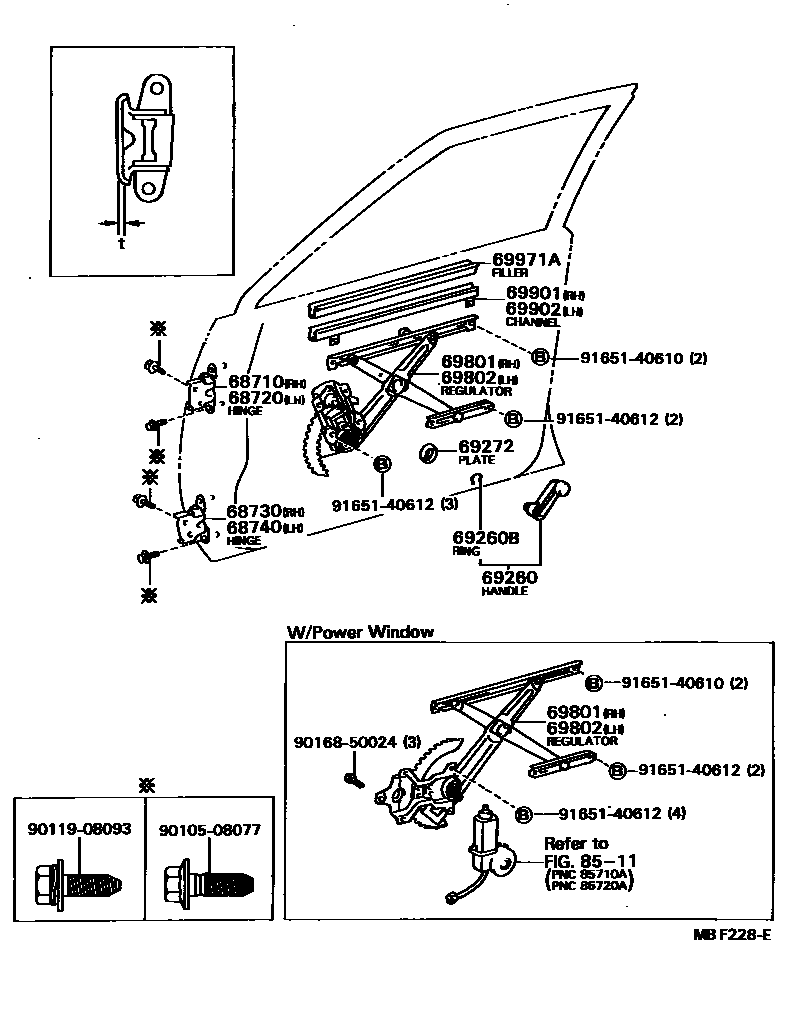

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-12080i198305-198704
T=5.0
main68710-12090i198305-198704
T=4.0
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-12080i198305-198704
T=5.0
main68720-12090i198305-198704
T=4.0
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-24010i198305-198704
T=4.0
sub68730-60020
main68730-32010i198305-198704
T=5.0
sub68730-30090
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-24010i198305-198704
T=4.0
sub68740-60020
main68740-32010i198305-198704
T=5.0
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-10040-10×2i198505-198704
BROWN,SEPIA BROWN,TRIM4#
sub69260-16010
main69260-10040-33×2i198505-198704
GRAY,SHADOW GRAY,TRIM1#
sub69260-16010
main69260-10040-44×2i198505-198704
BLUE,BLUE,TRIM8#
sub69260-16010
main69260-12010-03×2i198401-198704
GRAY,GRAY,TRIM1#
main69260-12010-12×2i198401-198408
MAROON,RED/MAROON,TRIM3#
main69260-12010-14×2i198401-198505
BLUE,BLUE,TRIM8#
main69260-12010-46×2i198408-198704
BROWN,BROWN,TRIM4#
main69260-12060-03×2i198305-198401
GRAY,GRAY,TRIM1#
main69260-12060-04×2i198305-198401
BLUE,BLUE,TRIM8#
main69260-12060-05×2i198305-198401
BEIGE,BEIGE,TRIM3#
main69260-14020-04×2i198401-198505
BLUE,BLUE,TRIM8#
sub69260-22030
main69260-14020-12×2i198401-198408
MAROON,RED/MAROON,TRIM3#
sub69260-22030
main69260-14020-23×2i198305-198401
GRAY,GRAY,TRIM1#
sub69260-22030
main69260-14020-25×2i198305-198401
BEIGE,BEIGE,TRIM3#
sub69260-22030
main69260-14020-33×2i198401-198505
GRAY,GRAY,TRIM1#
sub69260-22030
main69260-14020-34×2i198305-198401
BLUE,BLUE,TRIM8#
sub69260-22030
main69260-14020-36×2i198408-198505
BROWN,BROWN,TRIM4#
sub69260-22030
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002×2i198305-198704
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69268-16010×2i198305-198704
sub69268-20020
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-12040i198505-198602
W/POWER WINDOW
main69801-12080i198602-198704
W/POWER WINDOW
main69810-12180i198305-198602
W/O POWER WINDOW
main69810-12250i198602-198704
W/O POWER WINDOW
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-12040i198305-198602
W/POWER WINDOW
main69802-12080i198602-198704
W/POWER WINDOW
main69820-12170i198305-198602
W/O POWER WINDOW
main69820-12250i198602-198704
W/O POWER WINDOW
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-12150i198305-198509
main69901-12151i198509-198602
main69901-12152i198602-198704
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69902-12090i198305-198509
main69902-12091i198509-198602
main69902-12092i198602-198704
69971AFILLER, FRONT DOOR GLASS CHANNEL
main69971-12040×2i198305-198509
main69971-12070×2i198509-198704
sub69971-60020
8511
9010508077
main90105-08077
9011908093
main90119-08093
9016850024
main90168-50024
9165140610
main91651-40610
9165140612
main91651-40612

18 parts on this diagram · 1 diagram in section
