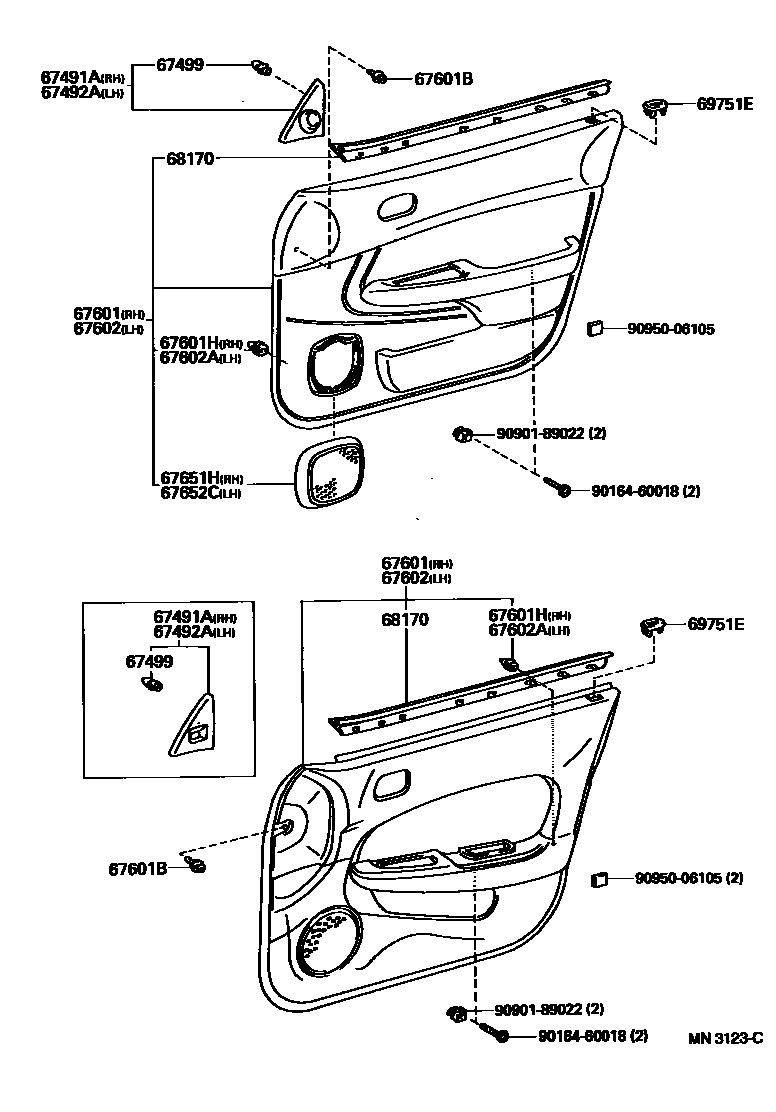

Toyota SPRINTER — FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1TRIM CODE TABLE 0004 1TRIM CODE TABLE

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12270iAE11#,CE11#,EE111199505-199704

main67491-12360iAE110,114,CE110,114..SEVIN199704-200008

main67491-12400iAE110,114,CE11#,EE111199704-200008

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12350iAE11#,CE11#,EE111199505-199704

main67492-12360iAE11#,CE11#..SCRU,SEVIN199505-199704

main67492-12400iAE110,114,CE11#,EE111199704-200008

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-30070×2iAE11#,CE11#,EE111199505-199704

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-1K040-B3iAE110,114,CE11#,EE111..XEVIN199704-199804

MD. GRAY,TRIM11

main67610-1K040-B4iAE110,114,CE11#,EE111..XEVIN199704-199804

MD.CHARCOAL,TRIM14

main67610-1K040-B5iAE110,114,CE11#,EE111..XEVIN199804-200008

MD.CHARCOAL,TRIM1#

main67610-1K050-B1iAE110,114,CE11#,EE111..LX199704-199804

main67610-1K050-B3iAE110,114,CE11#,EE111..LX199804-200008

main67610-1K060-B1iAE110,114,CE11#,EE111..LX199704-199804

main67610-1K060-B3iAE110,114,CE11#,EE111..LX199804-200008

main67610-1K080-B3iAE110,114,CE11#,EE111..XEVIN199704-199804

main67610-1K080-B4iAE110,114,CE11#,EE111..XEVIN199704-199804

main67610-1K080-B5iAE110,114,CE11#,EE111..XEVIN199804-200008

main67610-1K090-B3iAE110,114,CE11#..SEVIN199704-199804

MD. GRAY,TRIM11

main67610-1K090-B6iAE110,114,CE11#..SEVIN199704-200008

MD.CHARCOAL,TRIM14

main67610-1K110-B1iAE111199704-200008

SHADOW GRAY,TRIM1#

main67610-1K570-B0iAE110,114,CE11#..SEVIN200004-200008

main67650-1E630-B1iAE110,114,CE11#,EE111..XEVIN199505-199605

SHADOW GRAY,TRIM1#

main67650-1E630-E1iAE110,114,CE11#,EE111..XEVIN199505-199605

OAK,TRIM4#

main67650-1E631-B3iAE110,114,CE11#,EE111..XEVIN199605-199704

SHADOW GRAY,TRIM1#

main67650-1E631-E3iAE110,114,CE11#,EE111..XEVIN199605-199704

OAK,TRIM4#

main67650-1E650-B1iAE110,114,CE11#,EE111..XEVIN199505-199605

main67650-1E650-E1iAE110,114,CE11#,EE111..XEVIN199505-199605

main67650-1E651-B3iAE110,114,CE11#,EE111..XEVIN199605-199704

main67650-1E651-E3iAE110,114,CE11#,EE111..XEVIN199605-199704

main67650-1E700-B2iAE110,114,CE11#,EE111..XEVIN199505-199605

main67650-1E700-E2iAE110,114,CE11#,EE111..XEVIN199505-199605

main67650-1E701-B4iAE110,114,CE11#,EE111..XEVIN199605-199704

main67650-1E701-E4iAE110,114,CE11#,EE111..XEVIN199605-199704

main67650-1E710-B2iAE110,114,CE11#,EE111..XEVIN199505-199605

main67650-1E710-E2iAE110,114,CE11#,EE111..XEVIN199505-199605

main67650-1E711-B4iAE110,114,CE11#,EE111..XEVIN199605-199704

main67650-1E711-E4iAE110,114,CE11#,EE111..XEVIN199605-199704

main67650-1E730-B0iAE111199505-199704

SHADOW GRAY,TRIM1#

main67650-1H410-B0iAE110,114,CE11#,EE111..LX199505-199704

SHADOW GRAY,TRIM1#

main67650-1H420-B0iAE110,114,CE11#,EE111..LX199505-199704

main67650-1H430-B0iAE110,114,CE11#,EE111..LX199505-199605

main67650-1H431-B1iAE110,114,CE11#,EE111..LX199605-199704

main67650-1H440-B0iAE110,114,CE11#,EE111..LX199505-199605

main67650-1H441-B1iAE110,114,CE11#,EE111..LX199605-199704

main67650-1H450-B0iAE110,114,CE11#..SEVIN199505-199704

SHADOW GRAY,TRIM1#

main67650-1H450-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

main67650-1H510-B0iAE110,114,CE11#..SEVIN199505-199704

main67650-1H510-E0iAE110,114,CE11#..SEVIN199505-199704

main67650-1H760-B2iAE110,114,CE11#,EE111..LX199704-199804

main67650-1H760-B4iAE110,114,CE11#,EE111..LX199804-200008

main67650-1H770-B1iAE110,114,CE11#,EE111..LX199704-199804

main67650-1H770-B3iAE110,114,CE11#,EE111..LX199804-200008

main67650-1H890-E0iAE110,114,CE11#..SEVIN199608-199704

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-06133-B0×2iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

SHADOW GRAY,TRIM1#

main90467-06133-B4×4iAE110,114,CE11#..SEVIN199804-200008

MD.CHARCOAL,TRIM10,14

main90467-06133-B5×2iAE110,114,CE11#..SEVIN199704-199804

MD.GRAY,TRIM11

main90467-06133-C0×2iAE110,114,CE11#..SEVIN199704-199804

BLACK,TRIM1#

main90467-06133-E0×2iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

67601HRETAINER, DOOR TRIM, RH

main67771-12050iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-199704

main67771-16170×2iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67050-12260-B0iAE110,114,CE11#,EE111..LX199704-199804

sub67050-12340

main67050-12260-B3iAE110,114,CE11#,EE111..LX199804-200008

sub67050-12340

main67050-12270-B3iAE110,114,CE11#,EE111..LX199704-199804

main67050-12270-B5iAE110,114,CE11#,EE111..LX199804-200008

main67050-12460-E0iAE110,114,CE11#..SEVIN199608-199704

main67050-12480-B3iAE110,114,CE11#,EE111..XEVIN199704-199804

MD. GRAY,TRIM11

main67050-12480-B4iAE110,114,CE11#,EE111..XEVIN199704-199804

MD.CHARCOAL,TRIM14

main67050-12480-B5iAE110,114,CE11#,EE111..XEVIN199804-200008

MD.CHARCOAL,TRIM1#

main67050-12490-B1iAE110,114,CE11#,EE111..LX199704-199804

main67050-12490-B3iAE110,114,CE11#,EE111..LX199804-200008

main67050-12500-B3iAE110,114,CE11#,EE111..LX199704-199804

main67050-12500-B4iAE110,114,CE11#,EE111..XEVIN199704-199804

main67050-12500-B5iAE110,114..XEVIN;EE111..3FC..XEVIN199804-200008

main67050-12510-B3iAE110,114,CE11#..SEVIN199704-199804

MD. GRAY,TRIM11

main67050-12510-B6iAE110,114,CE11#..SEVIN199704-200008

MD.CHARCOAL,TRIM14

main67050-12530-B1iAE111199704-200008

SHADOW GRAY,TRIM1#

main67620-1K270-B0iAE110,114,CE11#,EE111..LX199505-199704

SHADOW GRAY,TRIM1#

main67620-1K300-B0iAE110,114,CE11#,EE111..LX199505-199704

main67620-1K420-B1iAE110,114,CE11#,EE111..XEVIN199505-199605

SHADOW GRAY,TRIM1#

main67620-1K420-E1iAE110,114,CE11#,EE111..XEVIN199505-199605

OAK,TRIM4#

main67620-1K421-B3iAE110,114,CE11#,EE111..XEVIN199605-199704

SHADOW GRAY,TRIM1#

main67620-1K421-E3iAE110,114,CE11#,EE111..XEVIN199605-199704

OAK,TRIM4#

main67620-1K430-B1iAE110,114,CE11#,EE111..XEVIN199505-199605

main67620-1K430-E1iAE110,114,CE11#,EE111..XEVIN199505-199605

main67620-1K431-B3iAE110,114,CE11#,EE111..XEVIN199605-199704

main67620-1K431-E3iAE110,114,CE11#,EE111..XEVIN199605-199704

main67620-1K590-B1iAE110,114,CE11#,EE111..LX,XEVIN199505-199605

main67620-1K590-E2iAE110,114,CE11#,EE111..XEVIN199505-199605

main67620-1K591-B4iAE110,114,CE11#,EE111..LX,XEVIN199605-199704

main67620-1K591-E4iAE110,114,CE11#,EE111..XEVIN199605-199704

main67620-1K700-B1iAE110,114,CE11#,EE111..LX,XEVIN199505-199605

main67620-1K700-E2iAE110,114,CE11#,EE111..XEVIN199505-199605

main67620-1K701-B4iAE110,114,CE11#,EE111..LX,XEVIN199605-199704

main67620-1K701-E4iAE110,114,CE11#,EE111..XEVIN199605-199704

main67620-1K710-B0iAE110,114,CE11#..SEVIN199505-199704

SHADOW GRAY,TRIM1#

main67620-1K710-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

main67620-1K720-B0iAE111199505-199704

SHADOW GRAY,TRIM1#

main67620-1N580-E0iAE110,114,CE11#..SEVIN199505-199704

main67660-12330-B0iAE110,114,CE11#..SEVIN199904-200004

67602ARETAINER, DOOR TRIM, LH

main67771-12050iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

main67771-16170×2iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

67651HGRILLE, SPEAKER DOOR, RH

main67651-12030-B0iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

SHADOW GRAY,TRIM1#

main67651-12030-B1iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

main67651-12030-B2iAE110,114,CE11#,EE111..XEVIN199704-199804

MD.CHARCOAL,TRIM14

main67651-12030-E0iAE110,114,CE11#,EE111..XEVIN199505-199704

OAK,TRIM4#

67652CGRILLE, SPEAKER DOOR, LH

main67651-12030-B0iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

SHADOW GRAY,TRIM1#

main67651-12030-B1iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

main67651-12030-B2iAE110,114,CE11#,EE111..XEVIN199704-199804

MD.CHARCOAL,TRIM14

main67651-12030-E0iAE110,114,CE11#,EE111..XEVIN199505-199704

OAK,TRIM4#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-12250iAE11#,CE11#,EE111199505-199704

main68171-12270iAE11#,CE11#..GT,SEVIN199704-200008

main68172-12170iAE11#,CE11#,EE111199505-199704

main68172-12190iAE11#,CE11#..GT,SEVIN199704-200008

69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-12070-B0×2iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main69751-12070-B1×2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main69751-12070-B2×2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

main69751-12070-E0×2iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

9016460018

main90164-60018

9090189022

main90901-89022

9095006105

main90950-06105

15 parts on this diagram · 4 diagrams in section
