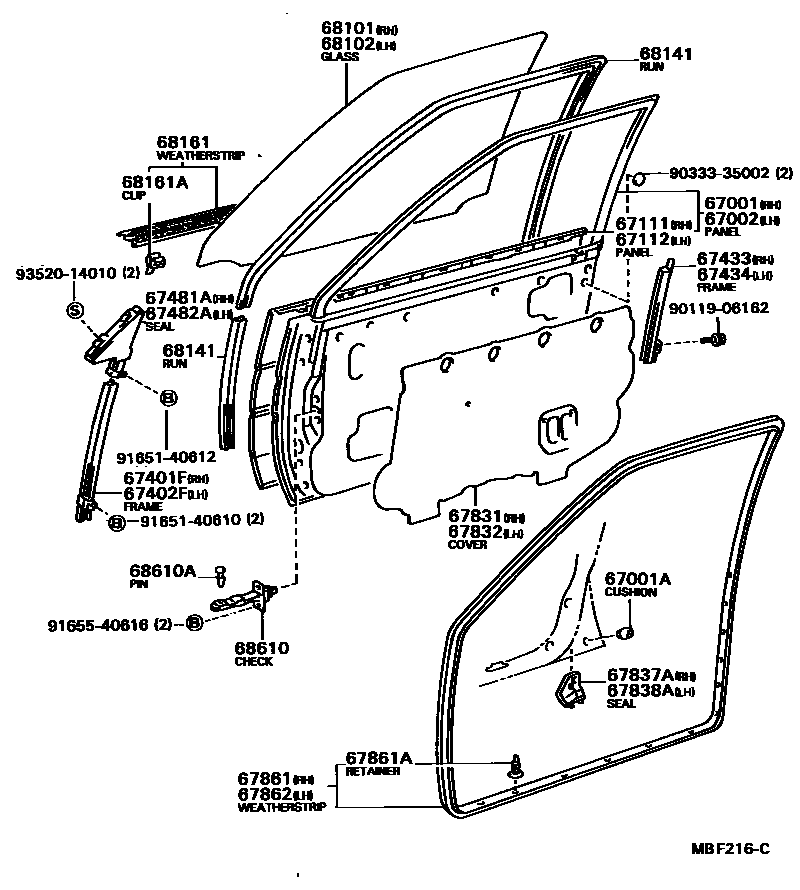

Toyota SPRINTER — FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12860iAE82..GT,SR,SX198305-198505

main67001-12861iAE8#,CE80,EE80198701-198704

main67001-12870iAE80,81,EE80..4D..XL198401-198608

W/*PW OR ELECTRIC *DM

67001ACUSHION, FRONT DOOR PANEL

main90541-09006×2iAE8#,CE80,EE80198305-198704

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12840iAE8#,CE80,EE80198505-198704

main67002-12850iAE80,81,EE80..4D..XL198401-198608

W/*PW OR ELECTRIC *DM

67111PANEL, FRONT DOOR, OUTER RH

main67111-12400iAE8#,CE80,EE80198305-198704

67112PANEL, FRONT DOOR, OUTER LH

main67112-12390iAE8#,CE80,EE80198305-198704

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12190iAE80,81,CE80,EE80..DX,SPD198305-198704

W/O DOOR MIRROR

main67401-12210iAE80,81,CE80..DX,SPD198305-198307

W/DOOR MIRROR

main67401-12230iAE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX198307-198704

W/DOOR MIRROR

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12180iAE80,81,CE80,EE80..DX,SPD198305-198704

W/O DOOR MIRROR

main67402-12200iAE80,81,CE80..DX,SPD198305-198307

W/DOOR MIRROR

main67402-12250iAE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX198307-198704

W/DOOR MIRROR

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67403-12050iAE8#,CE80,EE80198305-198704

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67404-12050iAE8#,CE80,EE80198305-198704

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-12160iAE80,81,CE80,EE80..DX,SPD198305-198704

W/O DOOR MIRROR

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-12130iAE80,81,CE80,EE80..DX,SPD198305-198704

W/O DOOR MIRROR

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12270iAE8#,CE80198305-198410

main67831-12280iAE8#,CE80,EE80198410-198704

main67831-12290iAE81..SE,SX,XL,ZX198305-198401

COLD SPEC

main67831-12330iAE81..SE198701-198704

SALOON LIMITED

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-12290iAE81..SE,SX,XL,ZX198305-198401

COLD SPEC

main67832-12140iAE8#,CE80198305-198410

main67832-12150iAE8#,CE80,EE80198410-198704

67837ASEAL, FRONT DOOR VENT, RH

main67837-12030iAE81..SE,SX,XL,ZX198305-198401

COLD SPEC

67838ASEAL, FRONT DOOR VENT, LH

main67838-12020iAE81..SE,SX,XL,ZX198305-198401

COLD SPEC

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12530iAE8#,CE80,EE80198305-198704

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×36iAE8#,CE80,EE80198305-198704

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12510iAE8#,CE80,EE80198305-198704

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-12530iAE80,EE80..SPD198305-198704

W/O *DM,*TEM,T=3.5

main68111-12540iAE80,81,CE80,EE80..DX,SPD198305-198704

W/O *DM,*TT,T=3.5

main68111-12560iAE80,EE80..SPD198305-198704

W/*DM,*TEM,T=3.5

main68111-12570iAE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX198305-198704

W/*DM,*TT,T=3.5

main68111-12580iAE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX198305-198704

*TEM,T=3.5,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-12530iAE80,EE80..SPD198305-198704

W/O *DM,*TEM,T=3.5

main68112-12540iAE80,81,CE80,EE80..DX,SPD198305-198704

W/O *DM,*TT,T=3.5

main68112-12560iAE80,EE80..SPD198305-198704

W/*DM,*TEM,T=3.5

main68112-12570iAE81,CE80,EE80..DX198505-198704

RIVIERE,*TT,T=3.5

main68112-12580iAE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX198305-198704

*TEM,T=3.5,BRONZE

68141RUN, FRONT DOOR GLASS

main68141-12210×2iAE81,82,CE80,EE80..5D198305-198704

main68141-12221×2iAE80,81,CE80,EE80..DX,SPD198305-198704

LONG,W/O DOOR MIRROR

main68141-12231×2iAE8#,CE80,EE80..4D..(GT,SE,SR,XL)198305-198704

W/DOOR MIRROR

main68143-12040×2iAE80,81,CE80,EE80..DX,SPD198305-198704

SHORT,W/O DOOR MIRROR

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-12130iAE80,81,CE80,EE80..DX,SPD198305-198704

RH,W/O DOOR MIRROR

main68160-12140iAE80,81,CE80,EE80..DX,SPD198305-198704

RH,W/DOOR MIRROR

main68210-12090iAE80,81,CE80,EE80..DX,SPD198305-198704

LH,W/O DOOR MIRROR

main68210-12100iAE80,81,CE80,EE80..DX,SPD198305-198704

LH,W/DOOR MIRROR

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-12080×12iAE80,81,CE80,EE80..DX,SPD198305-198704

68610CHECK ASSY, FRONT DOOR

main68610-12030×2iAE8#,CE80,EE80198305-198704

sub68610-60040

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010×2iAE8#,CE80,EE80198311-198507

main68617-22010×2iAE8#,CE80198305-198311

main68617-90A00×2iAE8#,CE80,EE80198507-198704

9011906162

main90119-06162

9033335002

main90333-35002

9165140610

main91651-40610

9165140612

main91651-40612

9165540616

main91655-40616

9352014010

main93520-14010

31 parts on this diagram · 4 diagrams in section
