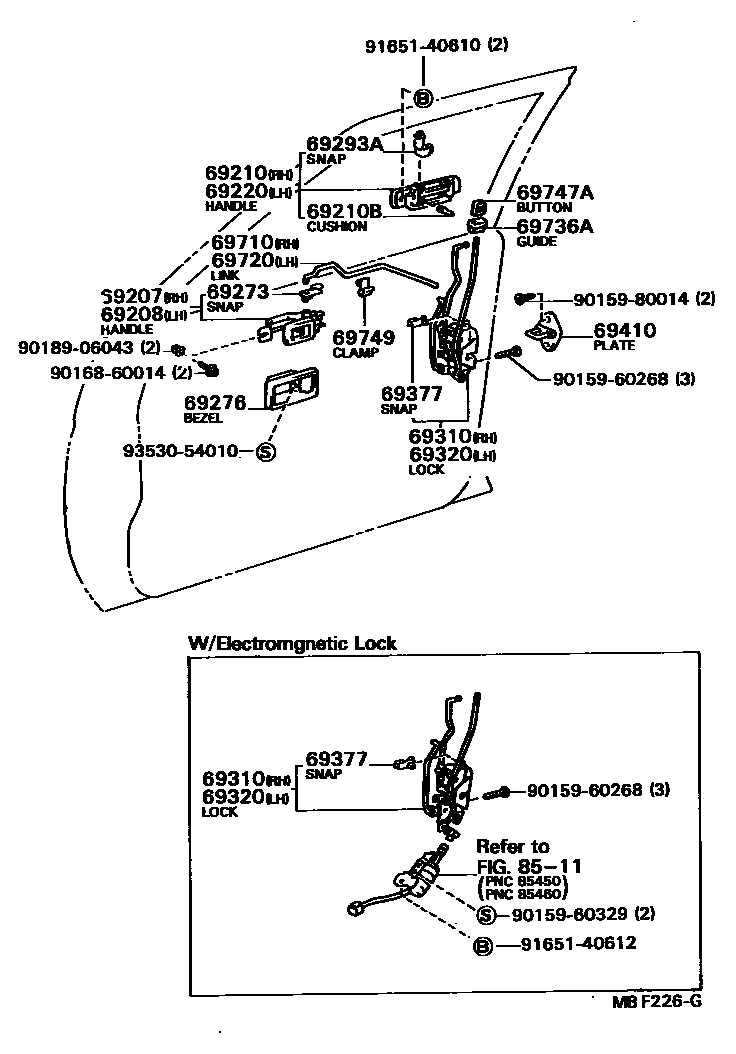

Toyota SPRINTER — FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12070-02iAE8#,CE80..DX,SPD,SR,SX,XL,ZX198401-198408

MAROON,RED/MAROON,TRIM3#

main69205-12070-03iAE8#,CE80..SE,SR,SX,XL,ZX198305-198401

GRAY,GRAY,TRIM1#

main69205-12070-04iAE8#,CE80..SE,SR,SX,XL,ZX198305-198401

BLUE,BLUE,TRIM8#

main69205-12070-13iAE80,81,CE80..DX,SPD198305-198401

GRAY,GRAY,TRIM1#

main69205-12070-14iAE80,81,CE80..DX,SPD198305-198401

BLUE,BLUE,TRIM8#

main69205-12070-15iAE80,81,CE80..DX,SPD198305-198401

BEIGE,BEIGE,TRIM3#

main69205-12070-16iAE8#,CE80,EE80..DX,SPD,SR,SX,XL,ZX198408-198704

BROWN,SEPIA BROWN,TRIM4#

main69205-30030iAE81,82,CE80..GT,SE198401-198704

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12070-02iAE8#,CE80..DX,SPD,SR,SX,XL,ZX198401-198408

MAROON,RED/MAROON,TRIM3#

main69206-12070-03iAE8#,CE80,EE80..DX,SPD,SR,SX,XL,ZX198401-198704

GRAY,GRAY,TRIM1#

main69206-12070-04iAE8#,CE80..SE,SR,SX,XL,ZX198305-198401

BLUE,BLUE,TRIM8#

main69206-12070-13iAE80,81,CE80..DX,SPD198305-198401

GRAY,GRAY,TRIM1#

main69206-12070-14iAE80,81,CE80..DX,SPD198305-198401

BLUE,BLUE,TRIM8#

main69206-12070-15iAE80,81,CE80..DX,SPD198305-198401

BEIGE,BEIGE,TRIM3#

main69206-12070-16iAE8#,CE80,EE80..DX,SPD,SR,SX,XL,ZX198408-198704

BROWN,SEPIA BROWN,TRIM4#

main69206-30020iAE81,82,CE80..GT,SE198401-198704

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69240-12060iAE81,82,CE80..GT,SE198305-198704

main69240-12070iAE8#,CE80,EE80..DX,SPD,SR,SX,XL,ZX198305-198704

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×4iAE8#,CE80,EE80198305-198704

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69230-12060iAE81,82,CE80..GT,SE198305-198704

main69230-12070iAE8#,CE80,EE80..DX,SPD,SR,SX,XL,ZX198305-198704

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-20060iAE8#,CE80198305-198401

RH

main69759-20070iAE8#,CE80,EE80..DX,SPD,SR,SX,XL,ZX198401-198704

LH

main69759-24010iAE81,82,CE80..GT,SE198401-198704

RH

main69759-24020iAE81,82,CE80..GT,SE198401-198704

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-32020-04×2iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198401-198505

BLUE,BLUE,TRIM8#

sub69277-89104

main69277-32020-12×2iAE8#,CE80198401-198408

MAROON,RED/MAROON,TRIM3#

sub69277-89104

main69277-32020-23iAE80,81,CE80..DX,SPD198305-198401

GRAY,GRAY,TRIM1#

sub69277-89104

main69277-32020-24iAE80,81,CE80..DX,SPD198305-198401

BLUE,BLUE,TRIM8#

sub69277-89104

main69277-32020-25iAE80,81,CE80..DX,SPD198305-198401

BEIGE,BEIGE,TRIM3#

sub69277-89104

main69277-32020-26×2iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

BROWN,BROWN,TRIM4#

sub69277-89104

main69277-32020-33×2iAE8#,CE80..SE,SR,SX,XL,ZX198305-198401

GRAY,GRAY,TRIM1#

sub69277-89104

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAE8#,CE80,EE80198305-198704

RH

main69293-12040iAE8#,CE80,EE80198305-198704

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-12140iAE8#,CE80,EE80198505-198704

W/O *EL

main69310-12160iAE81..SE198505-198704

W/*EL

69320LOCK ASSY, FRONT DOOR, LH

main69320-12160iAE8#,CE80,EE80198505-198704

W/O *EL

main69320-12180iAE82..GT,SE,ZX198305-198704

W/*EL

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20040iAE8#,CE80,EE80198305-198704

LH

main69759-20050iAE8#,CE80,EE80198305-198704

RH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001×2iAE8#,CE80,EE80198305-198704

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-12070iAE8#,CE80,EE80198305-198704

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-12080iAE8#,CE80,EE80198305-198704

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030×2iAE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX198408-198704

main69736-22021×2iAE8#,CE80..SE,SR,SX,XL,ZX198305-198408

main69751-20031-01×2iAE80,81,CE80,EE80..DX,SPD198305-198704

BLACK

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32010-01×2iAE8#,CE80198305-198505

BLACK,BLACK,TRIM1#

main69741-90K00-01×2iAE8#,CE80,EE80198505-198704

BLACK,BLACK,TRIM1#

sub69741-89102

sub69741-12040

sub69741-89104

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010×2iAE8#,CE80,EE80198305-198704

8511

9015960268

main90159-60268

9015960329

main90159-60329

9015980014

main90159-80014

9016860014

main90168-60014

9018906043

main90189-06043

9165140610

main91651-40610

9165140612

main91651-40612

9353054010

main93530-54010

26 parts on this diagram · 1 diagram in section
