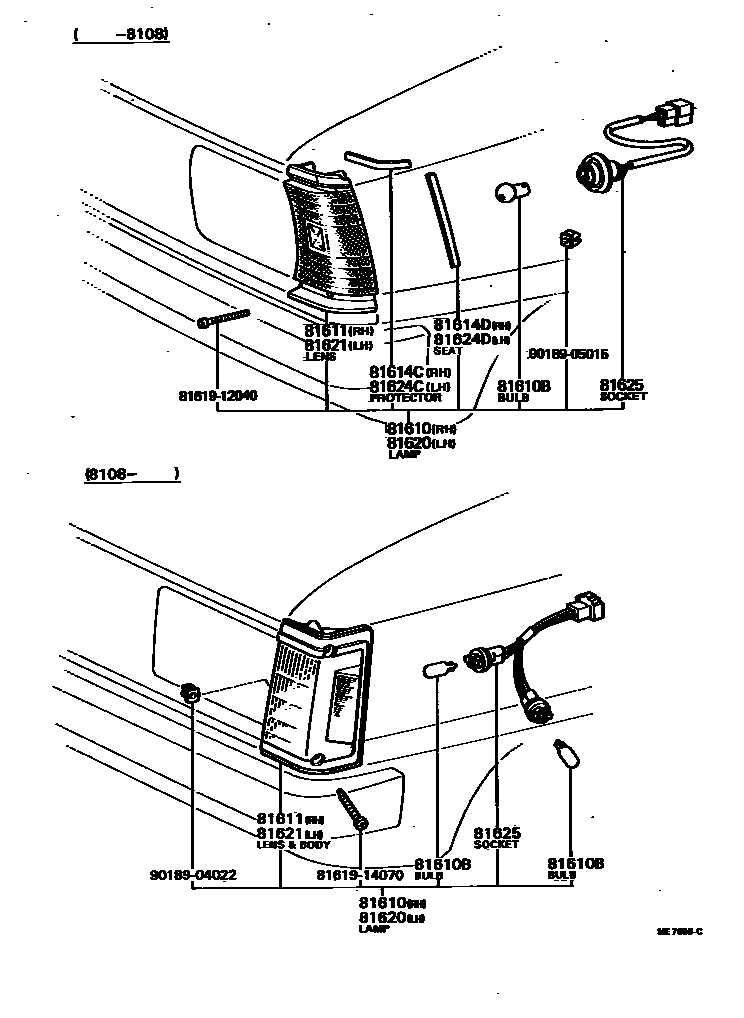

Toyota SPRINTER — FRONT CLEARANCE LAMP
81610LAMP ASSY, PARKING & CLEARANCE, RH
81610BBULB(FOR PARKING & CLEARANCE LAMP)
81611LENS, PARKING & CLEARANCE LAMP, RH
81614CPROTECTOR, CLEARANCE LAMP, RH
81614DSEAT, CLEARANCE LAMP, RH
81620LAMP ASSY, PARKING & CLEARANCE, LH
81621LENS, PARKING & CLEARANCE LAMP, LH
81624CPROTECTOR, CLEARANCE LAMP, LH
81624DSEAT, CLEARANCE LAMP, LH
81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
8161912040
main81619-12040
8161914070
main81619-14070
9018904022
main90189-04022
9018905015
main90189-05015
14 parts on this diagram · 1 diagram in section
FRONT CLEARANCE LAMP for Toyota SPRINTER
This section contains 14 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota SPRINTER. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, PROTECTOR, CLEARANCE LAMP, RH, SEAT, CLEARANCE LAMP, RH.
