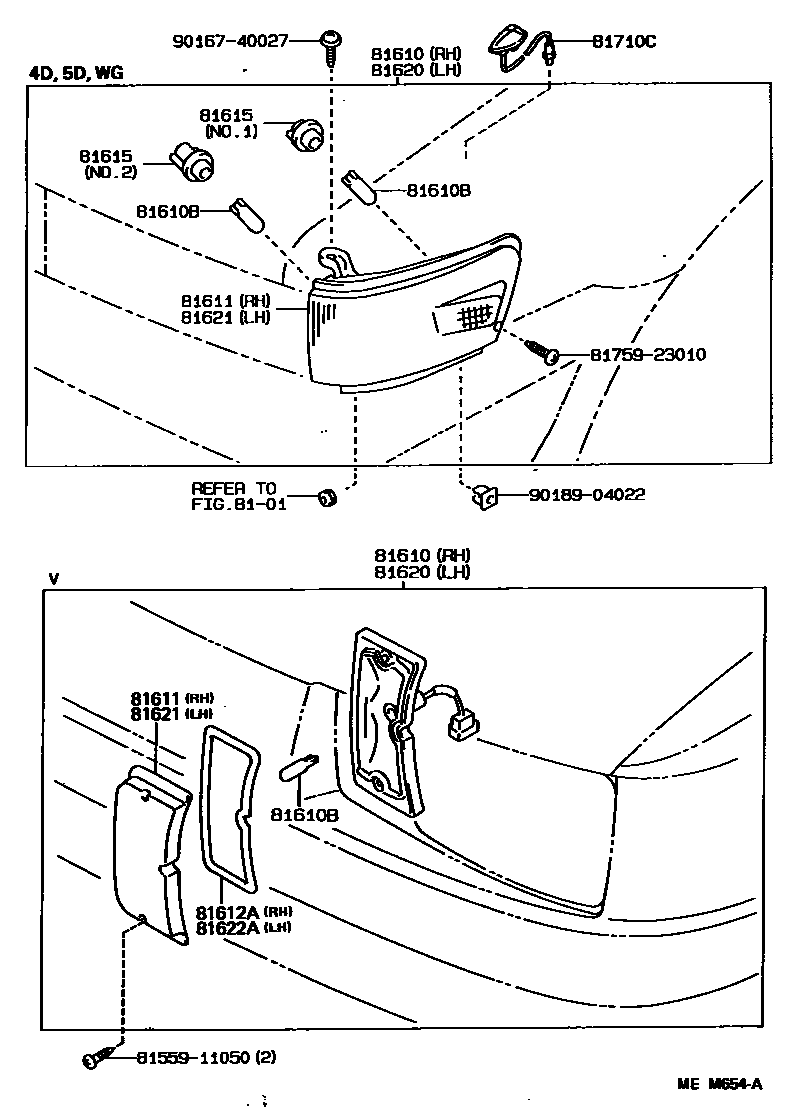

Toyota SPRINTER — FRONT CLEARANCE LAMP

8101

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-12420iAE9#,CE90,EE90..4D,5D198705-198905

main81610-12450iAE95..WG198802-199009

main81610-12510iAE91,95,CE90,95,EE90..DX,LX198905-199106

main81610-12520iAE9#,CE90,95,EE90..G,GT,L,MX,SE,XS198905-199106

main81610-13060iCE96,EE96,98198808-199108

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4iAE9#,CE90,95,EE90198705-199106

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12420iAE9#,CE90,EE90..4D,5D198705-198905

main81611-12450iAE95..WG198802-199009

main81611-12510iAE91,95,CE90,95,EE90..DX,LX198905-199106

main81611-12520iAE9#,CE90,95,EE90..G,GT,L,MX,SE,XS198905-199106

main81611-16100iCE96,EE96,98198808-199108

81612AGASKET, PARKING AND CLEARANCE LAMP LENS, RH

main81612-13060iCE96,EE96,98198808-199108

81615SOCKET AND WIRE, CLEARANCE LAMP

main90075-99006×2iAE9#,CE90,95,EE90198705-199106

main90075-99007×2iAE9#,CE90,95,EE90198705-199106

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-12420iAE9#,CE90,EE90..4D,5D198705-198905

main81620-12450iAE95..WG198802-199009

main81620-12510iAE91,95,CE90,95,EE90..DX,LX198905-199106

main81620-12520iAE9#,CE90,95,EE90..G,GT,L,MX,SE,XS198905-199106

main81620-13060iCE96,EE96,98198808-199108

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12420iAE9#,CE90,EE90..4D,5D198705-198905

main81621-12450iAE95..WG198802-199009

main81621-12510iAE91,95,CE90,95,EE90..DX,LX198905-199106

main81621-12520iAE9#,CE90,95,EE90..G,GT,L,MX,SE,XS198905-199106

main81621-16100iCE96,EE96,98198808-199108

81622AGASKET, PARKING AND CLEARANCE LAMP LENS, LH

main81622-13060iCE96,EE96,98198808-199108

81710CMARKER ASSY, FENDER

main81710-12010×2iEE90..3FC..LX;AE9#,CE90,95,EE90..G,GT,L,MX,SE,XS198905-199106

8155911050MOULDING, REAR COMBINATION LAMP, RH

main81559-11050

8175923010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-23010

9016740027

main90167-40027

9018904022

main90189-04022

14 parts on this diagram · 1 diagram in section
