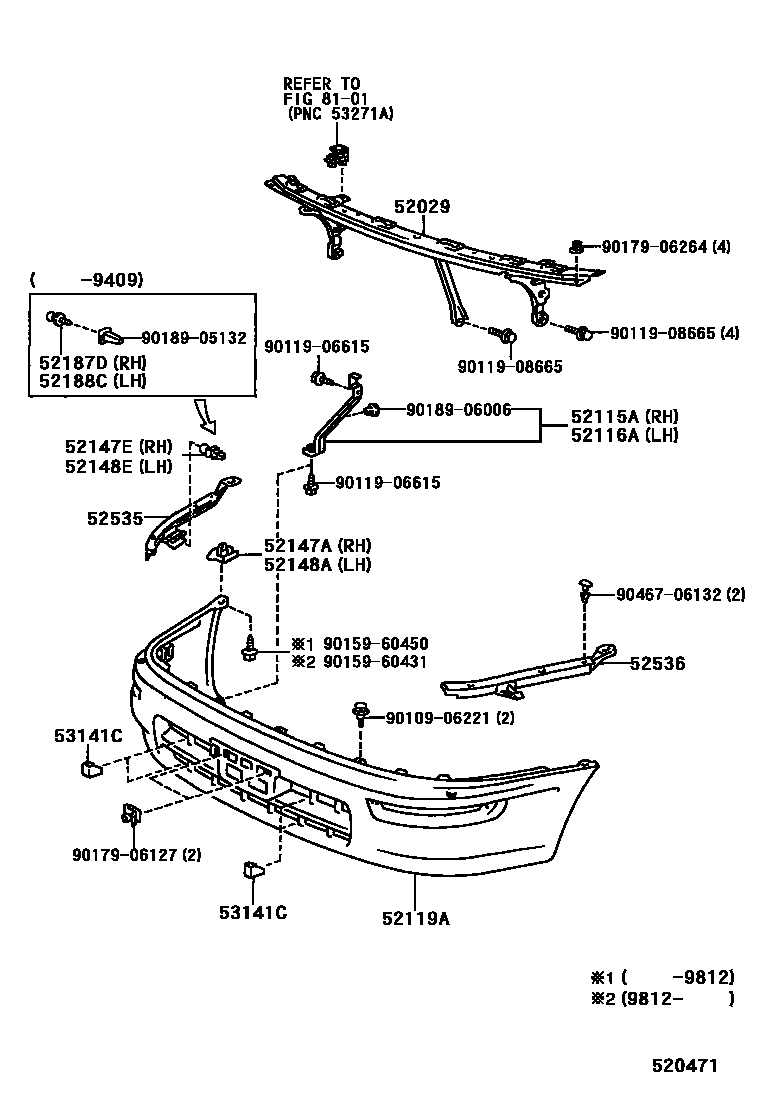

Toyota SPRINTER — FRONT BUMPER & BUMPER STAY
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
RED MICA M,3K4
DARK BLUEISH GRAY M,183
DARK BLUE MICA M,8J7
LIGHT BEIGE M,3K9
GRAYISH GREEN M,6M3
SUPER WHITE 2,040
ROSE MICA M.GLAPHITE,3K5
SILVER MICA,192
SUPER WHITE 2,040
SILVER MICA M,192
DARK BLUEISH GRAY M,183
LIGHT BEIGE M,3K9
GRAYISH GREEN M,6M3
MD GRAISHGREEN MC.GR,6N1
DARK BLUE MICA M,8G5
52147ABRACKET, FRONT BUMPER STAY, RH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148ABRACKET, FRONT BUMPER STAY, LH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52187DGUIDE, FRONT BUMPER LOCATION, RH
52188CGUIDE, FRONT BUMPER LOCATION, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
53141CGARNISH, RADIATOR GRILLE
8101HEADLAMP
9010906221
main90109-06221
9011906615
main90119-06615
9011908665
main90119-08665
9015960431
main90159-60431
9015960450
main90159-60450
9017906127
main90179-06127
9017906264
main90179-06264
9018905132
main90189-05132
9018906006
main90189-06006
9046706132
main90467-06132
24 parts on this diagram · 2 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota SPRINTER
This section contains 31 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota SPRINTER. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, REINFORCEMENT, FRONT BUMPER.
