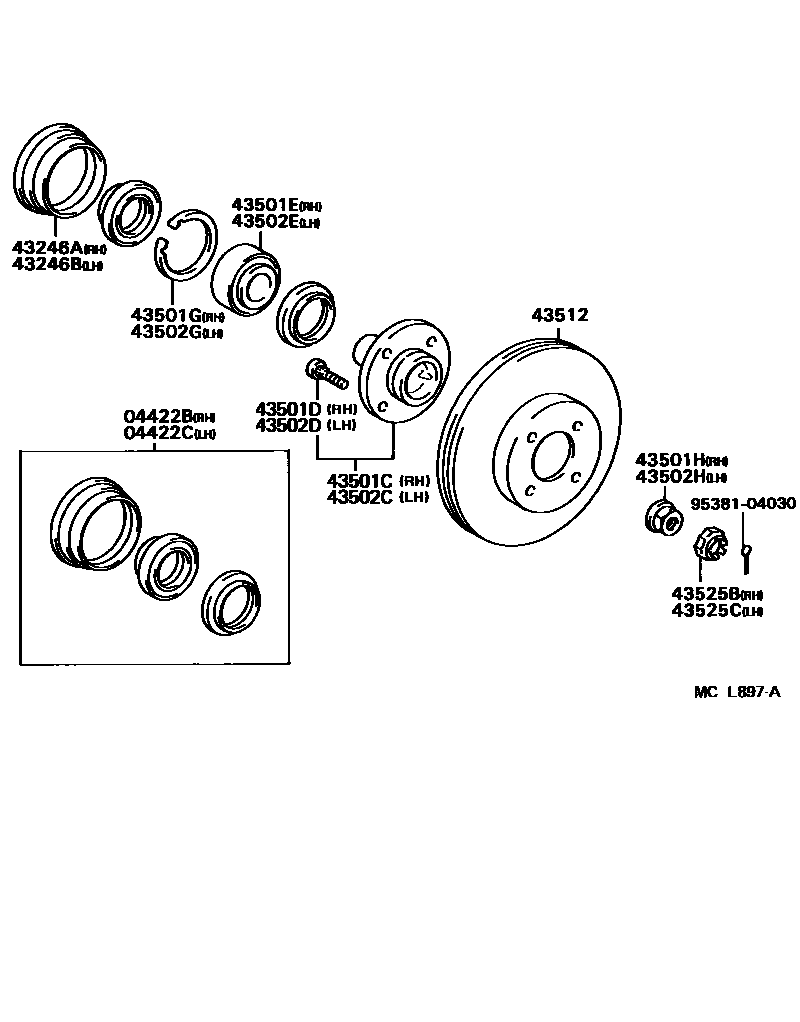

Toyota SPRINTER — FRONT AXLE HUB

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-12050iAE10#,CE100,104,EE101199106-199505

main04422-12070iAE10#,CE10#,EE10#199106-199505

main04422-12091iAE109,CE10#,EE10#199505

main04422-12100iAE109,CE10#,EE10#199804

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-12050iAE10#,CE100,104,EE101199106-199505

main04422-12070iAE10#,CE10#,EE10#199106-199505

main04422-12091iAE109,CE10#,EE10#199505

main04422-12100iAE109,CE10#,EE102,103199804

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12010iAE10#,CE10#,EE10#199106-199505

main43246-12020iAE10#,CE100,104,EE101199106-199505

main43246-12040iAE109,CE10#,EE10#199505

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12010iAE10#,CE10#,EE10#199106-199505

main43246-12020iAE109,CE10#,EE102,103199804

main43246-12040iAE109,CE10#,EE10#199505

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12090iAE10#,CE10#,EE10#199106

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4iAE10#,CE10#,EE10#199106

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-38006iAE10#,CE10#,EE10#199308

main90369-38011iAE10#,CE10#,EE10#199106-199308

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iAE10#,CE10#,EE10#199106

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-22001iAE109,CE10#,EE10#199709

main90179-22020iAE10#,CE10#,EE10#199106-199709

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12090iAE10#,CE10#,EE10#199106

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4iAE10#,CE10#,EE10#199106

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-38006iAE10#,CE10#,EE10#199308

main90369-38011iAE10#,CE10#,EE10#199106-199308

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iAE10#,CE10#,EE10#199106

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-22001iAE109,CE10#,EE10#199709

main90179-22020iAE10#,CE10#,EE10#199106-199709

43512DISC, FRONT

main43512-12330×2iCE106,107,EE10#199106

main43512-12350×2iAE100,104,CE100,104,108,109199106-199403

main43512-12360×2iAE100,104,CE100,104,108,109199403-199505

main43512-12370×2iAE101..SEG199106-199505

main43512-12390×2iAE101..GT199106-199505

main43512-12580×2iAE109,CE102,105,108,109199704

main43512-12590×2iAE109,CE108,109199505-199704

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iAE10#,CE10#,EE10#199106

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iAE10#,CE10#,EE10#199106

9538104030

main95381-04030

18 parts on this diagram · 1 diagram in section
