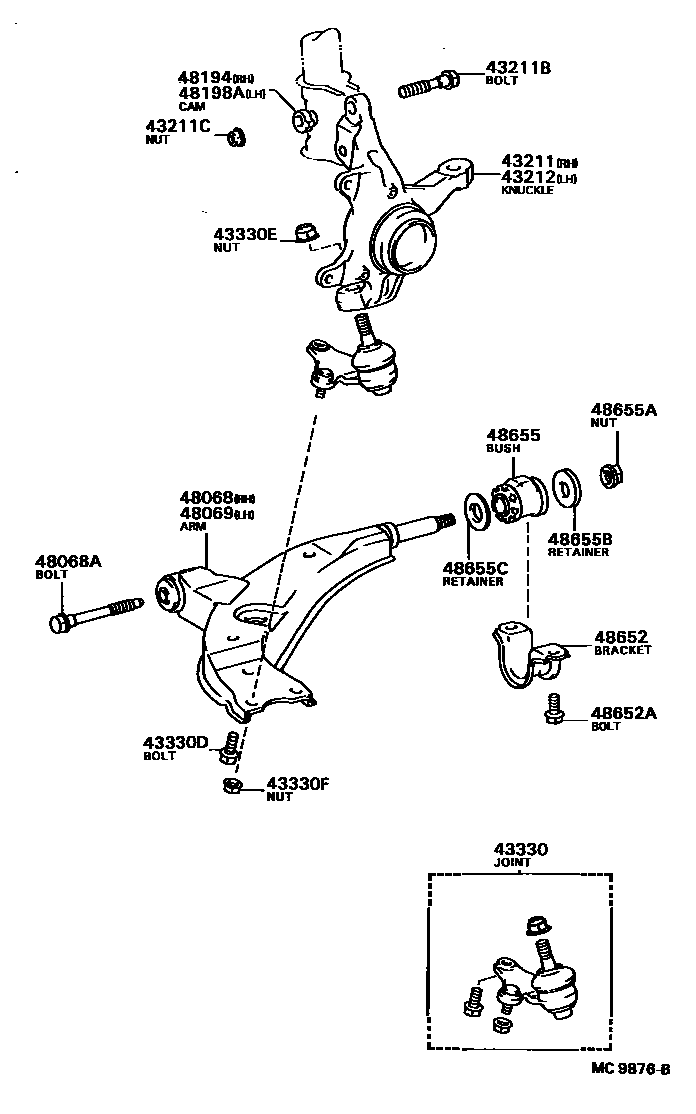

Toyota SPRINTER — FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
W/POWER STEERING
43211BBOLT (FOR ABSORBER SETTING)
43211CNUT (FOR ABSORBER SETTING)
43212KNUCKLE, STEERING, LH
W/POWER STEERING
43330JOINT ASSY, LOWER BALL, FRONT
43330DBOLT (FOR FRONT LOWER BALL JOINT)
43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48194CAM, CAMBER ADJUST, RH
48198ACAM, CAMBER ADJUST, LH
48652BRACKET, FRONT LOWER ARM
48652ABOLT(FOR FRONT LOWER ARM BRACKET)
48655BUSH, LOWER ARM, NO.2
48655ANUT(FOR SUSPENSION LOWER ARM BUSH NO.2)
48655BRETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.2)
48655CRETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.2)
19 parts on this diagram · 1 diagram in section
FRONT AXLE ARM & STEERING KNUCKLE for Toyota SPRINTER
This section contains 19 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota SPRINTER. Key components include: KNUCKLE, STEERING, RH, BOLT (FOR ABSORBER SETTING), NUT (FOR ABSORBER SETTING), KNUCKLE, STEERING, LH, JOINT ASSY, LOWER BALL, FRONT.
