Toyota SPRINTER — FLOOR SIDE MEMBER

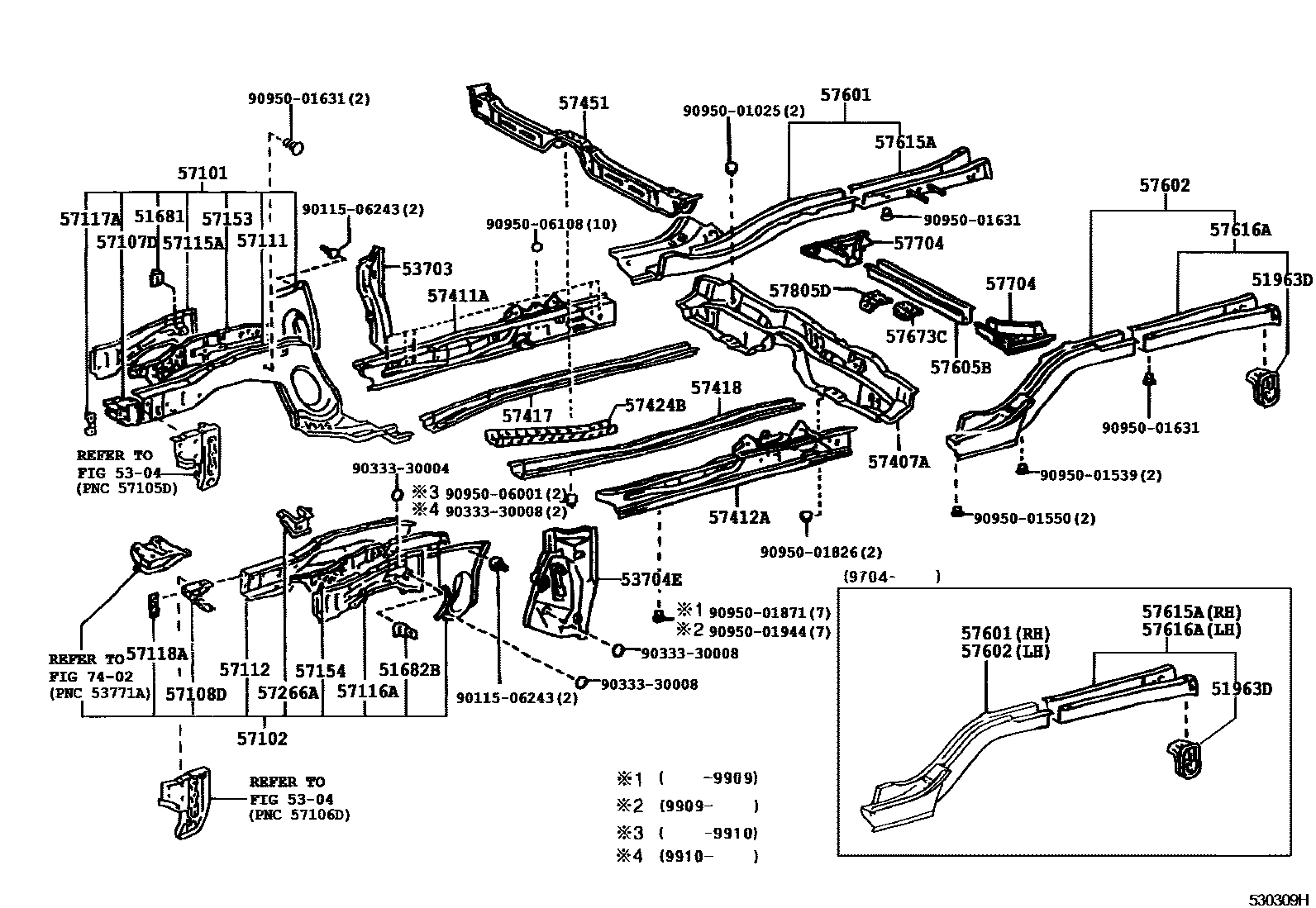

Parts diagram

51681BRACKET, FLEXIBLE HOSE

main51681-12050i199505-200008

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-12060i199505-200008

51963DHOOK, TRANSPORT, REAR LH

main51096-12040i199505-200008

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53703APRON SUB-ASSY, FRONT FENDER, REAR RH

main53703-12060i199704-200008

main53703-12070i199505-199704

53704EAPRON SUB-ASSY, FRONT FENDER, REAR LH

main53704-12020i199704-200008

main53704-12060i199505-199704

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12915i199505-199704

main57101-12916i199505-199704

main57101-12930i199704-200008

main57101-12931i199704-200008

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12915i199505-199704

main57102-12916i199505-199704

main57102-12939i199704-200008

main57102-12940i199704-200008

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-12090i199505-199704

main57125-13010i199704-200008

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-12110i199505-199704

main57126-13010i199704-200008

57111MEMBER, FRONT SIDE, RH

main57111-12201i199505-200008

57112MEMBER, FRONT SIDE, LH

main57112-12141i199505-199701

main57112-12142i199701-200008

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12060i199505-200008

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12060i199505-200008

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-12110i199505-200008

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57117-12110i199505-200008

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57016-12050i199505-200008

main57016-12060i199505-200008

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57017-12030i199505-199704

main57017-12040i199505-199704

main57017-13010i199704-200008

57266ABRACKET, ENGINE MOUNTING, LH

main57208-12110i199505-199611

main57208-12111i199611-199705

main57208-12120i199505-199611

main57208-12121i199611-199705

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-12040i199505-199704

main57407-12050i199505-200008

main57407-12070i199704-200008

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-12500i199505-199704

main57401-12530i199704-200008

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-12500i199505-199704

main57402-12530i199704-200008

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12100i199505-199704

main57417-13010i199704-200008

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-12060i199505-199704

main57418-13010i199704-200008

57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH

main57424-12020i199704-200008

57451MEMBER, FRONT FLOOR CROSS

main57451-12141i199505-199704

main57451-12150i199505-199605

main57451-12151i199605-199701

main57451-12152i199701-199707

main57451-12153i199707-200008

main57451-12170i199704-200008

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-1A090i199505-199704

main57601-1A902i199505-199704

main57601-1A903i199704-200008

main57601-1A904i199704-200008

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12880i199505-199704

main57602-1A900i199505-199704

main57602-1A901i199704-200008

main57602-1A902i199704-200008

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12140i199505-200008

main57605-12150i199505-200008

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-12902i199505-200008

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-12904i199505-200008

57673CBRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12090i199704-200008

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57695-12030i199505-200008

main57696-12030i199505-200008

57805DREINFORCEMENT ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-12060i199704-200008

7402BATTERY CARRIER

→ Go to FIG 74-02

9011506243

main90115-06243

9033330004

main90333-30004

9033330008

main90333-30008

9095001025

main90950-01025

9095001539

main90950-01539

9095001550

main90950-01550

9095001631

main90950-01631

9095001826

main90950-01826

9095001871

main90950-01871

9095001944

main90950-01944

9095006001

main90950-06001

9095006108

main90950-06108

47 parts on this diagram · 2 diagrams in section

FLOOR SIDE MEMBER for Toyota SPRINTER

This section contains 50 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota SPRINTER. Key components include: BRACKET, FLEXIBLE HOSE, BRACKET, FLEXIBLE HOSE, LH, HOOK, TRANSPORT, REAR LH, FRONT FENDER APRON & DASH PANEL, APRON SUB-ASSY, FRONT FENDER, REAR RH.
