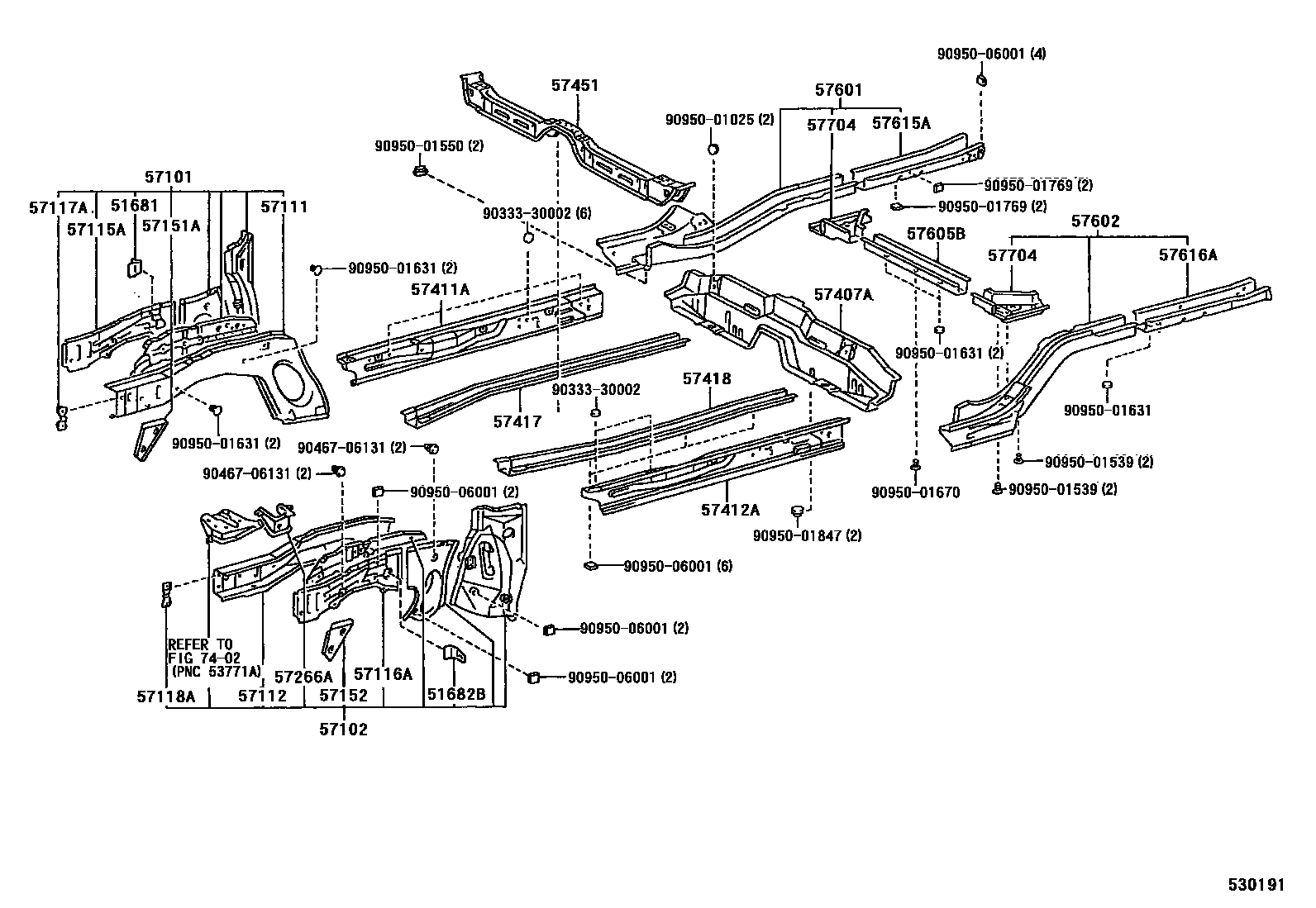

Toyota SPRINTER — FLOOR SIDE MEMBER
51681BRACKET, FLEXIBLE HOSE
51682BBRACKET, FLEXIBLE HOSE, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117AREINFORCEMENT, FRONT BUMPER MOUNTING
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57266ABRACKET, ENGINE MOUNTING, LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57451MEMBER, FRONT FLOOR CROSS
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
7402BATTERY CARRIER
9033330002
main90333-30002
9046706131
main90467-06131
9095001025
main90950-01025
9095001539
main90950-01539
9095001550
main90950-01550
9095001631
main90950-01631
9095001670
main90950-01670
9095001769
main90950-01769
9095001847
main90950-01847
9095006001
main90950-06001
36 parts on this diagram · 8 diagrams in section
FLOOR SIDE MEMBER for Toyota SPRINTER
This section contains 60 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota SPRINTER. Key components include: REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH, REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH, BRACKET, FLEXIBLE HOSE, BRACKET, FLEXIBLE HOSE, LH, APRON SUB-ASSY, FRONT FENDER, REAR RH.
