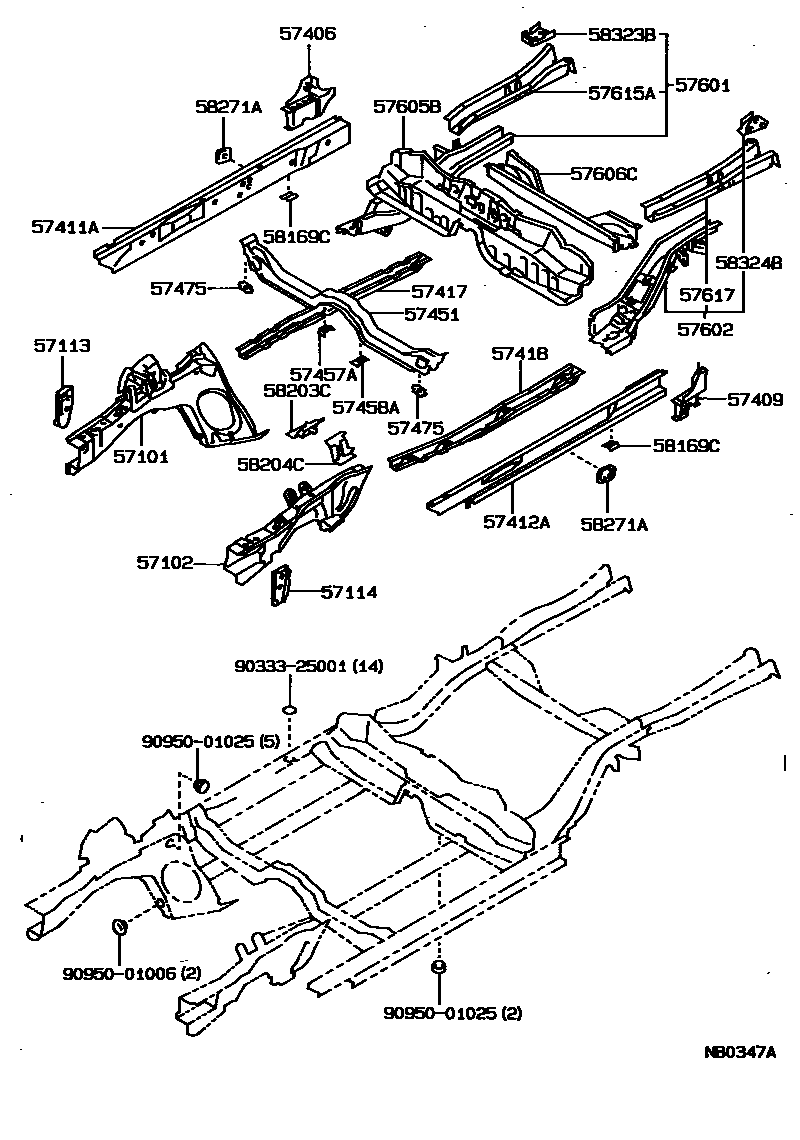

Toyota SPRINTER — FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57451MEMBER, FRONT FLOOR CROSS
57457APLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH
57458APLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH
57475PLATE, FRONT FLOOR CROSSMEMBER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57617MEMBER, REAR FLOOR SIDE, REAR LH
58169CPATCH, FRONT FLOOR REAR
58203CBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING
58204CBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING, LH
58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH
58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH
9033325001
main90333-25001
9095001006
main90950-01006
9095001025
main90950-01025
29 parts on this diagram · 4 diagrams in section
FLOOR SIDE MEMBER for Toyota SPRINTER
This section contains 53 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota SPRINTER. Key components include: BOX SUB-ASSY, TORQUE, REAR RH, BOX SUB-ASSY, TORQUE, REAR LH, BRACKET SUB-ASSY, LATERAL ROD, MEMBER SUB-ASSY, FRONT SIDE, RH, MEMBER SUB-ASSY, FRONT SIDE, LH.
