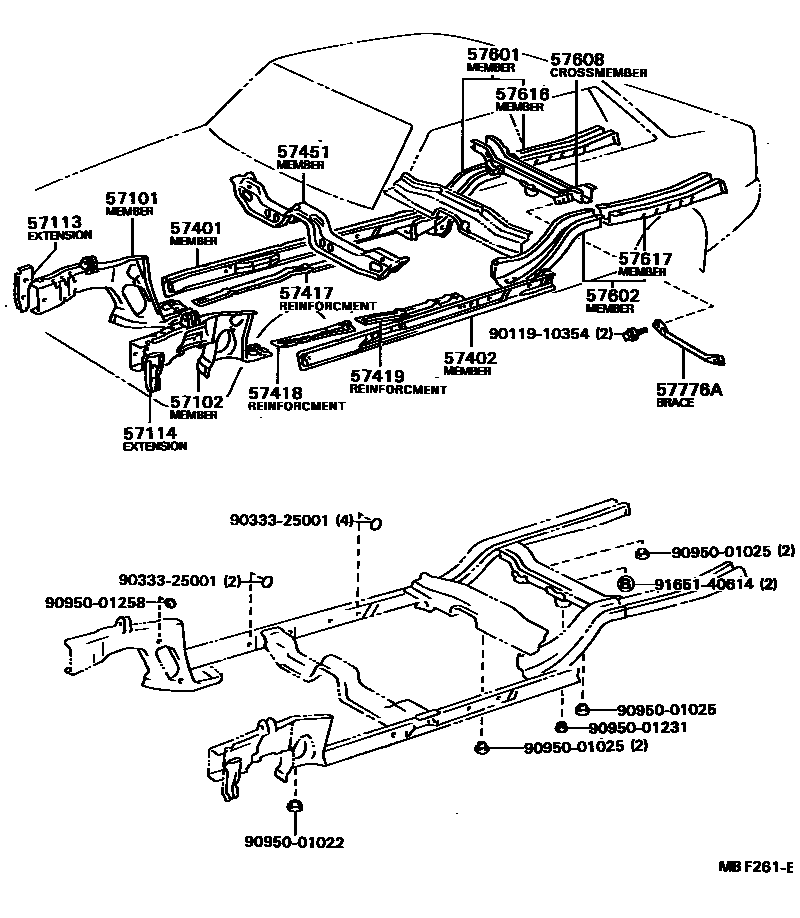

Toyota SPRINTER — FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57419REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2
57451MEMBER, FRONT FLOOR CROSS
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
W/O *FFS
W/*FFS
W/O *FFS
W/*FFS
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
W/O *FFS
W/*FFS
57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57616MEMBER, REAR FLOOR SIDE, REAR RH
57617MEMBER, REAR FLOOR SIDE, REAR LH
57776ABRACE, REAR LOWER ARM BRACKET
9011910354
main90119-10354
9033325001
main90333-25001
9095001022
main90950-01022
9095001025
main90950-01025
9095001231
main90950-01231
9095001258
main90950-01258
9165140614
main91651-40614
23 parts on this diagram · 1 diagram in section
FLOOR SIDE MEMBER for Toyota SPRINTER
This section contains 23 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota SPRINTER. Key components include: MEMBER SUB-ASSY, FRONT SIDE, RH, MEMBER SUB-ASSY, FRONT SIDE, LH, EXTENSION, FRONT SIDE MEMBER, RH, EXTENSION, FRONT SIDE MEMBER, LH, MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH.
