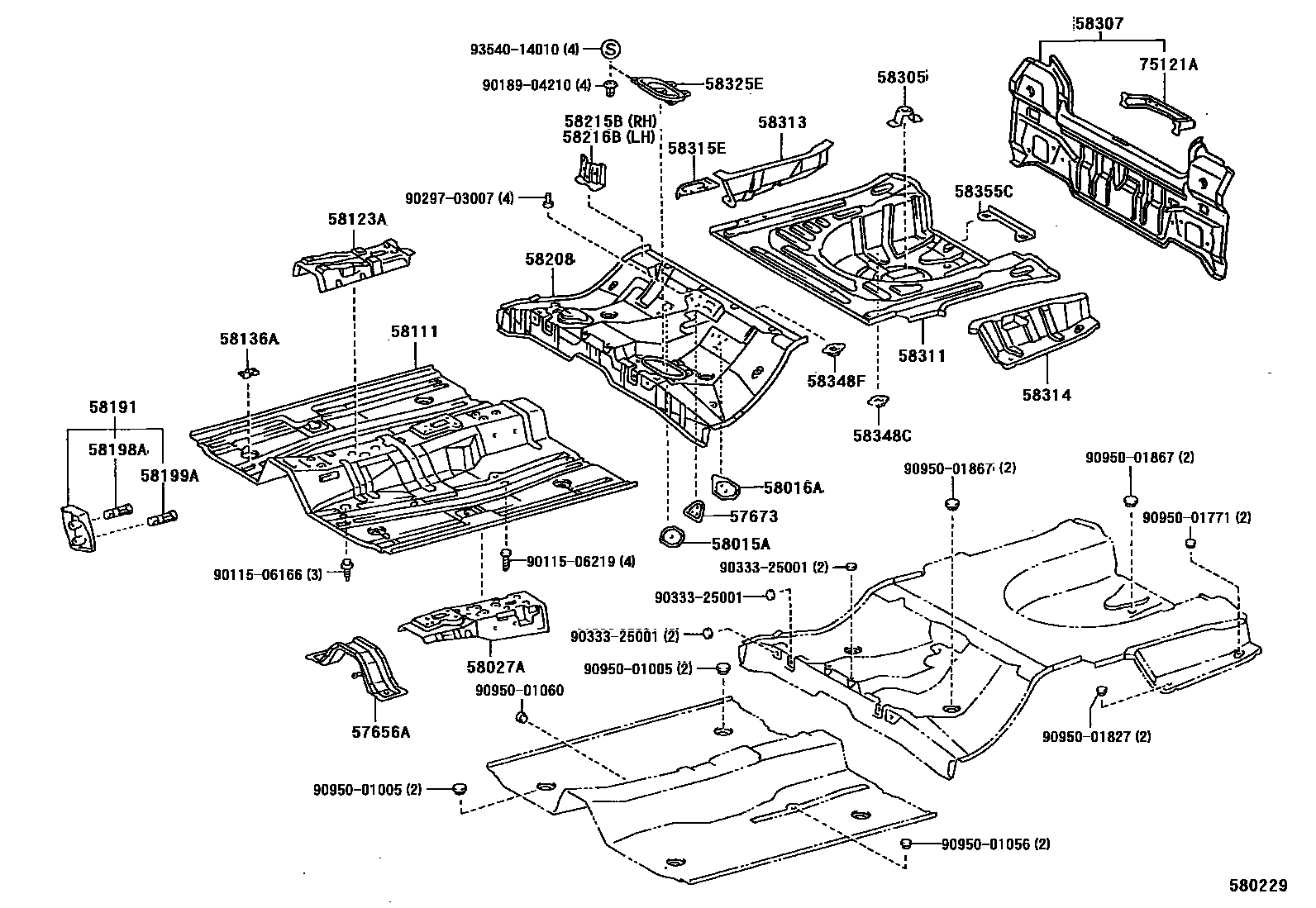

Toyota SPRINTER — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57509-12020iCE102,106,107,108199704-199910

main57509-12030iCE102,107199910

main57656-12060iAE100,101,CE100,106,108,EE10#199205-199704

main57656-12070iAE100,101,CE100,106,108,EE10#199106-199205

main57656-12080iEE10#199704

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12070iAE101..GT199106-199505

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12040iAE10#,CE100,104,EE101199106-199505

main58015-13020iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12010iAE10#,CE100,104,EE101199106-199505

main58016-13010iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12120iAE100,101,CE100,106,108,EE10#199106-199505

main58027-12121iCE107,EE102,103199804

main58027-12130iAE104,CE104,109199109-199505

main58027-12131iAE109,CE109199505-199704

main58027-12132iAE109,CE105,109199704-200008

main58027-12153iCE102199804

main58027-12170iAE109,CE109199704

58111PAN, FRONT FLOOR

main58111-12260iAE100,101,CE100,106,108,EE10#199106-199505

main58111-12261iCE106,108,EE10#199505-199508

main58111-12262iCE102,106,107,108,EE10#199508

main58111-12270iAE104,CE104,109199109-199505

main58111-12271iAE109,CE109199505-199702

sub90333-15002

main58111-12272iAE109,CE109199702-199802

main58111-12273iAE109,CE105,109199802-200008

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12020iAE100,101,CE100,106,108,EE10#199106-199505

main58013-12030iAE104,CE104,109199109-199505

main58013-12060iCE102,106,107,108,EE10#199505

main58013-12070iAE109,CE105,109199505-200008

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020×2iAE10#,CE10#,EE10#199106-199301

main58136-12030×2iAE10#,CE10#,EE10#199301

58191FOOTREST, FRONT FLOOR

main58191-12110iAE104,CE104;AE100,101,CE100..GT,SEG,SEL199106-199505

58198ACLIP, FOOTREST, NO.1

main58198-12030iAE104,CE104;AE100,101,CE100..GT,SEG,SEL199106-199505

58199ACLIP, FOOTREST, NO.2

main58199-12020iAE104,CE104;AE100,101,CE100..GT,SEG,SEL199106-199505

58208PAN, CENTER FLOOR

main58211-12340iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199505

sub58211-12901

main58211-12350iAE101..GT199106-199505

sub58211-12901

main58211-12360iAE104,CE104199109-199505

sub58211-12902

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-12040iAE10#,CE100,104,EE101199106-199505

sub58215-12041

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-12040iAE10#,CE100,104,EE101199106-199505

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE10#,CE100,104,EE101199106-199411

main58351-12040iAE10#,CE100,104,EE101199411-199505

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A270iAE10#,CE100,104,EE101199106-199505

58311PAN, REAR FLOOR

main58311-12210iAE10#,CE100,104,EE101199106-199505

main58311-13150iEE103..3FC..DX;CE106,107,EE102..(4F,4FC,5F)..DX199708

main58311-13160iCE102,106,107,108,EE10#..DX,DXJ,L,XL199704

main58311-13190iAE109,CE105,109199109

main58311-13200iEE106..4F..CTD199110-199401

main58311-13210iEE106..4F..DX199110-199401

58313PANEL, REAR FLOOR SIDE, RH

main58313-12900iAE10#,CE100,104,EE101199106-199505

58314PANEL, REAR FLOOR SIDE, LH

main58314-12250iAE10#,CE100,104,EE101199106-199505

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-12070iAE10#,CE100,104,EE101199106-199505

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12080iAE10#,CE10#,EE10#199106-199505

main58325-12100iCE106,108,EE10#199505-199508

58348CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-12020iAE10#,CE100,104,EE101199106-199505

58348FBRACKET, CENTER FLOOR HEAR INSULATOR, NO.3

main58348-12020×2iAE10#,CE100,104,EE101199106-199505

58355CBRACKET, REAR BUMPER ARM

main58355-12040iAE10#,CE100,104,EE101199106-199505

75121ABRACKET, REAR LICENSE PLATE

main75121-12030iAE10#,CE100,104,EE101199106-199505

9011506166

main90115-06166

9011506219

main90115-06219

9018904210

main90189-04210

9029703007

main90297-03007

9033325001

main90333-25001

9095001005

main90950-01005

9095001056

main90950-01056

9095001060

main90950-01060

9095001771

main90950-01771

9095001827

main90950-01827

9095001867

main90950-01867

9354014010

main93540-14010

37 parts on this diagram · 4 diagrams in section
