Toyota SPRINTER — FLOOR MAT

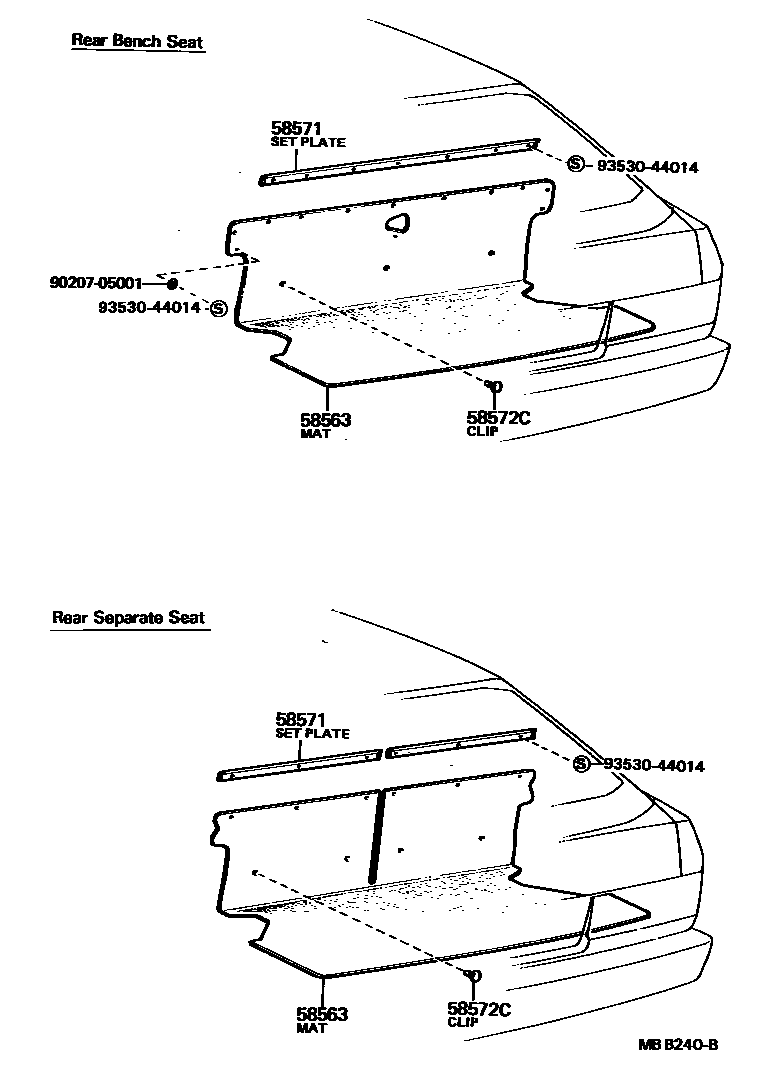

Parts diagram
58563MAT, REAR FLOOR
main58570-12110-01i197903-198304
RR BENCH SEAT BACK,BLACK,BLACK,TRIM2#
main58570-12110-04i197903-198304
RR BENCH SEAT BACK,BLUE,BLUE,TRIM8#
main58570-12110-06i197903-198008
RR BENCH SEAT BACK,L-BROWN,BROWN,TRIM2#
main58570-12110-16i198008-198304
RR BENCH SEAT BACK,L-BROWN,BROWN,TRIM4#
main58570-12120-01i197903-198108
RR SEPARATE SEAT BACK,BLACK,BLACK,TRIM2#
main58570-12120-04i197903-198108
RR SEPARATE SEAT BACK,BLUE,BLUE,TRIM8#
main58570-12120-06i197903-198008
RR SEPARATE SEAT BACK,L-BROWN,BROWN,TRIM4#
main58570-12120-16i198008-198108
RR SEPARATE SEAT BACK,L-BROWN,BROWN,TRIM4#
58571SET PLATE, REAR FLOOR MAT, FRONT
main58573-12010-01i197903-198304
RR BENCH SEAT BACK,BLACK,BLACK,TRIM2#
main58573-12010-04i197903-198304
RR BENCH SEAT BACK,BLUE,BLUE,TRIM8#
main58573-12010-05i197903-198304
RR BENCH SEAT BACK,BEIGE,BEIGE,TRIM4#
main58573-12020-01×2i197903-198108
RR SEPARATE SEAT BACK,BLACK,BLACK,TRIM2#
main58573-12020-04×2i197903-198108
RR SEPARATE SEAT BACK,BLUE,BLUE,TRIM8#
main58573-12020-05×2i197903-198108
RR SEPARATE SEAT BACK,BEIGE,BEIGE,TRIM4#
58572CCLIP, REAR FLOOR MAT SET
main90467-06016-01×4i198108-198304
BLACK,BLACK,TRIM2#
sub90467-07049
main90467-06016-16×4i198108-198304
L-BROWN,BROWN,TRIM4#
sub90467-07049
main90467-06016-24×4i198108-198304
BLUE,BLUE,TRIM8#
sub90467-07049
main90467-07162-01×4i197903-198108
BLACK,BLACK,TRIM2#
main90467-07162-04×4i197903-198108
BLUE,BLUE,TRIM8#
main90467-07162-16×4i197903-198008
L-BROWN,BROWN,TRIM4#
main90467-07162-26×4i198008-198108
L-BROWN,BROWN,TRIM4#
9020705001
main90207-05001
9353044014
main93530-44014

5 parts on this diagram · 1 diagram in section
