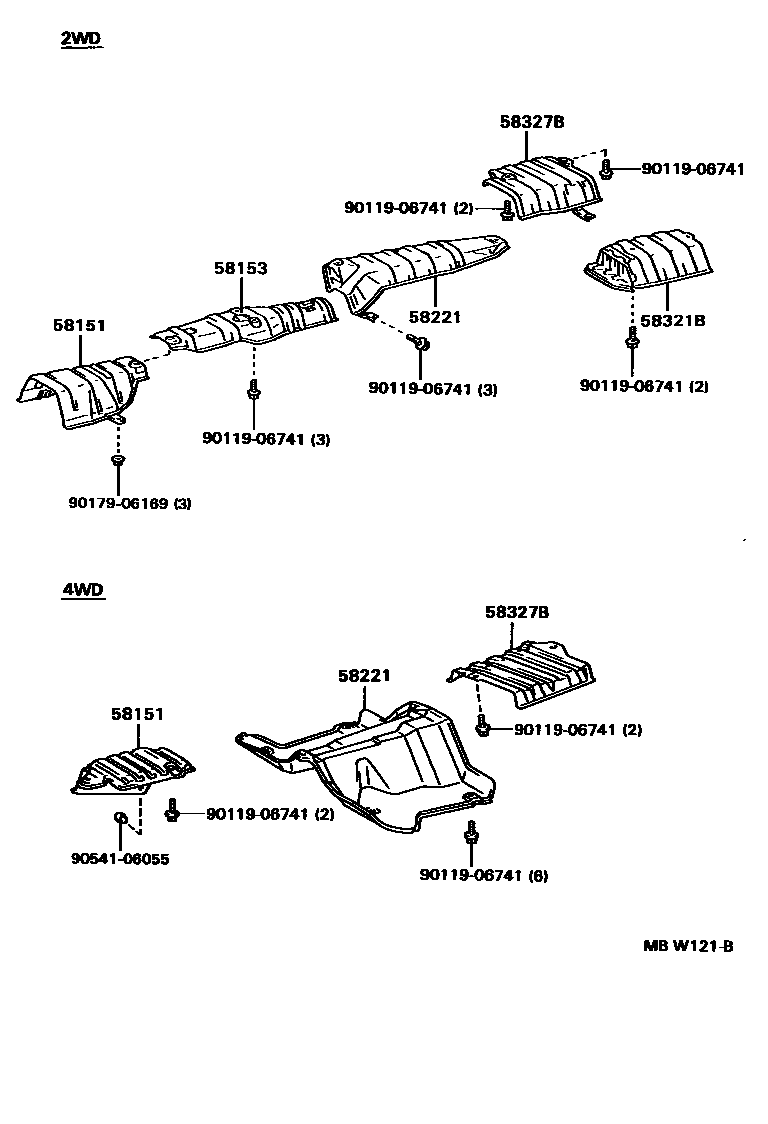

Toyota SPRINTER — FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-12140iAE100,101,EE10#199106-199211

main58041-12150iAE100,101,EE10#199211-199505

main58151-12160iAE104,109199109

main58151-12200iEE10#199505

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12110iAE100,101,EE10#199106-199211

main58153-12120iAE100,101,EE10#199211-199611

main58153-12140iAE109,CE10#,EE10#199611-199705

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58044-12010iAE100,101,CE100,EE101199106-199202

main58044-12020iAE104,CE104199109-199505

main58044-12040iAE100,101,CE100,EE101199211-199505

main58221-13030iCE102,106,107,108,EE102,103,104,106,107,108199109

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58045-12020iAE101..GT199106-199505

58327BINSULATOR, MAIN MUFFLER HEAT

main58031-12040iAE101..GT199106-199505

main58031-12070iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199207-199211

main58031-12080iAE104,CE104199109-199505

main58031-12090iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199211-199505

main58031-13030iEE106..4F199109-199401

main58327-13020iCE106,108,EE106,107,108199109-199308

main58327-13040iAE109,CE105,109199109

main58327-21030iCE102,106,107,108,EE102,103,104,106,107,108199308

9011906741

main90119-06741

9017906169

main90179-06169

9054106055

main90541-06055

8 parts on this diagram · 2 diagrams in section
