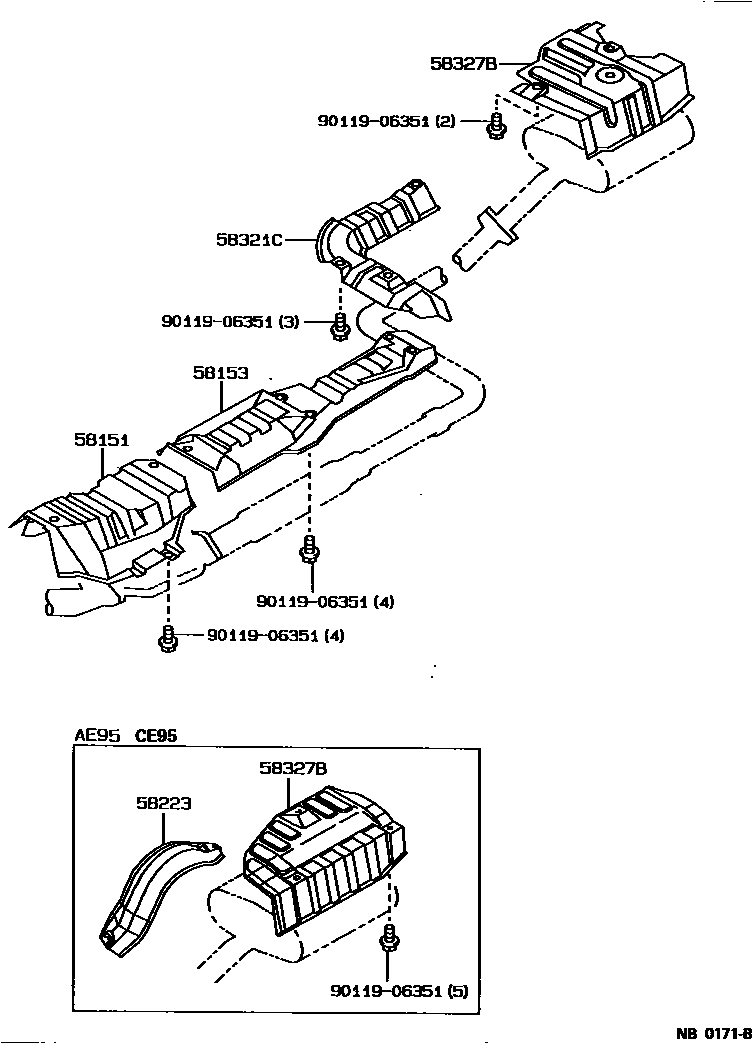

Toyota SPRINTER — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12120iAE92,EE98;AE91..EFIS198705-199106

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12100iAE92,EE98;AE91..EFIS198705-199106

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-12050iAE95,CE95198710-199106

58321CINSULATOR, REAR FLOOR HEAT, FRONT

main58321-12030iAE91,92,EE9#198705-199108

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-12060iAE91,92,EE90198705-199106

main58327-12090iAE95,CE95198710-199106

main58327-13010iCE96,EE96,98198808-199108

9011906351

main90119-06351

6 parts on this diagram · 1 diagram in section
