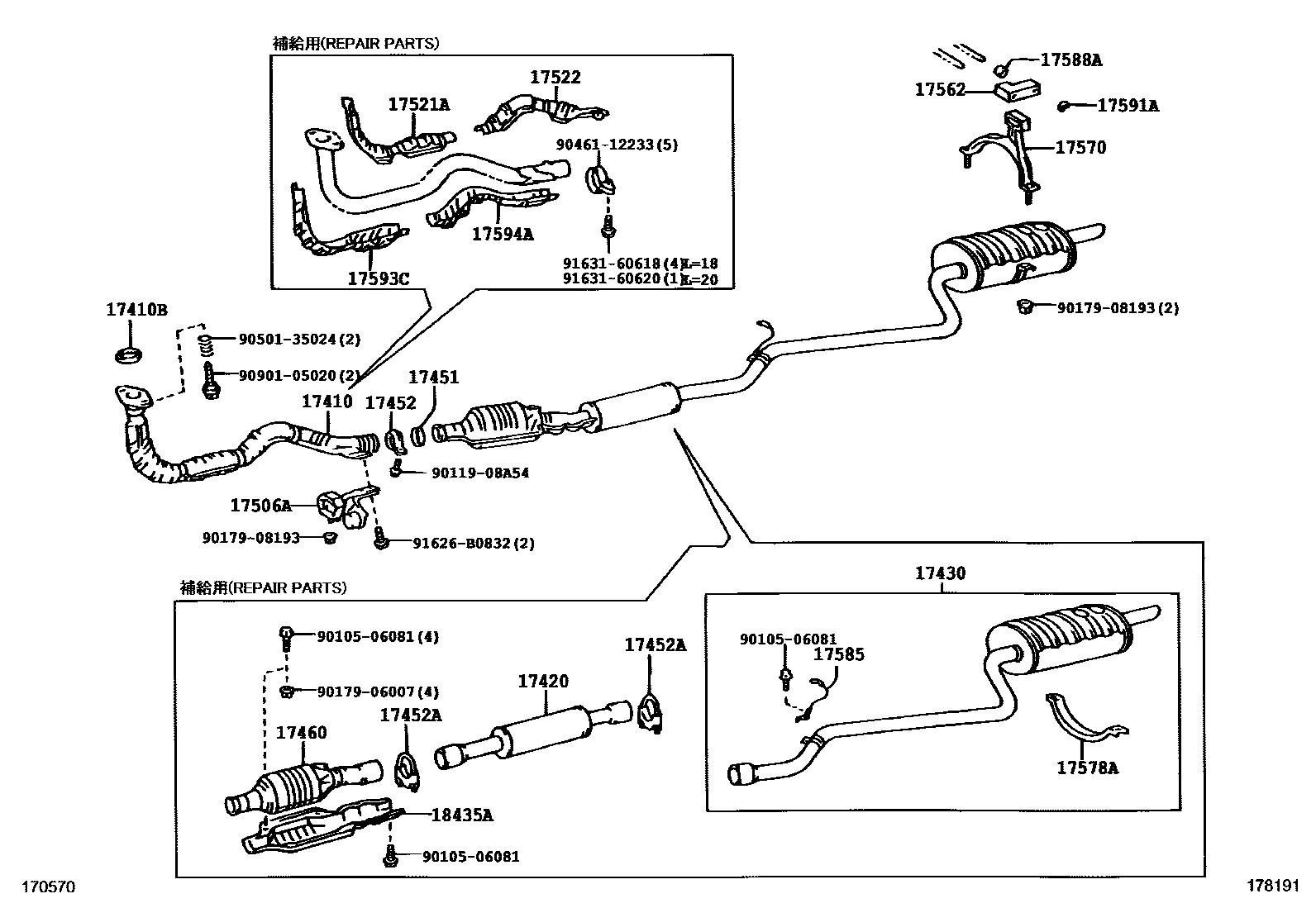

Toyota SPRINTER — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17452CLAMP, EXHAUST PIPE
17452ACLAMP, EXHAUST PIPE
17460CONVERTER ASSY, CATALYTIC W/PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17521APROTECTOR, EXHAUST PIPE, UPPER NO.1
17522PROTECTOR, EXHAUST PIPE, UPPER NO.2
17562SUPPORT, EXHAUST PIPE, NO.2
17570BRACKET ASSY, EXHAUST PIPE SUPPORT
17578ACLAMP, MUFFLER
17585HANGER, EXHAUST PIPE
17588ASPACER, EXHAUST PIPE HANGER
17591ASTOPPER, EXHAUST PIPE SUPPORT
17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1
17594APROTECTOR, EXHAUST PIPE, LOWER NO.2
18435APROTECTOR, MONOLITHIC CONVERTER
9010506081
main90105-06081
9011908A54
main90119-08A54
9017906007
main90179-06007
9017908193
main90179-08193
9046112233
main90461-12233
9050135024
main90501-35024
9090105020
main90901-05020
91626B0832
main91626-B0832
9163160618
main91631-60618
9163160620
main91631-60620
30 parts on this diagram · 10 diagrams in section
EXHAUST PIPE for Toyota SPRINTER
This section contains 65 genuine Toyota parts for the EXHAUST PIPE system of the Toyota SPRINTER. Key components include: CONVERTER ASSY, W/CATALYST, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER.
