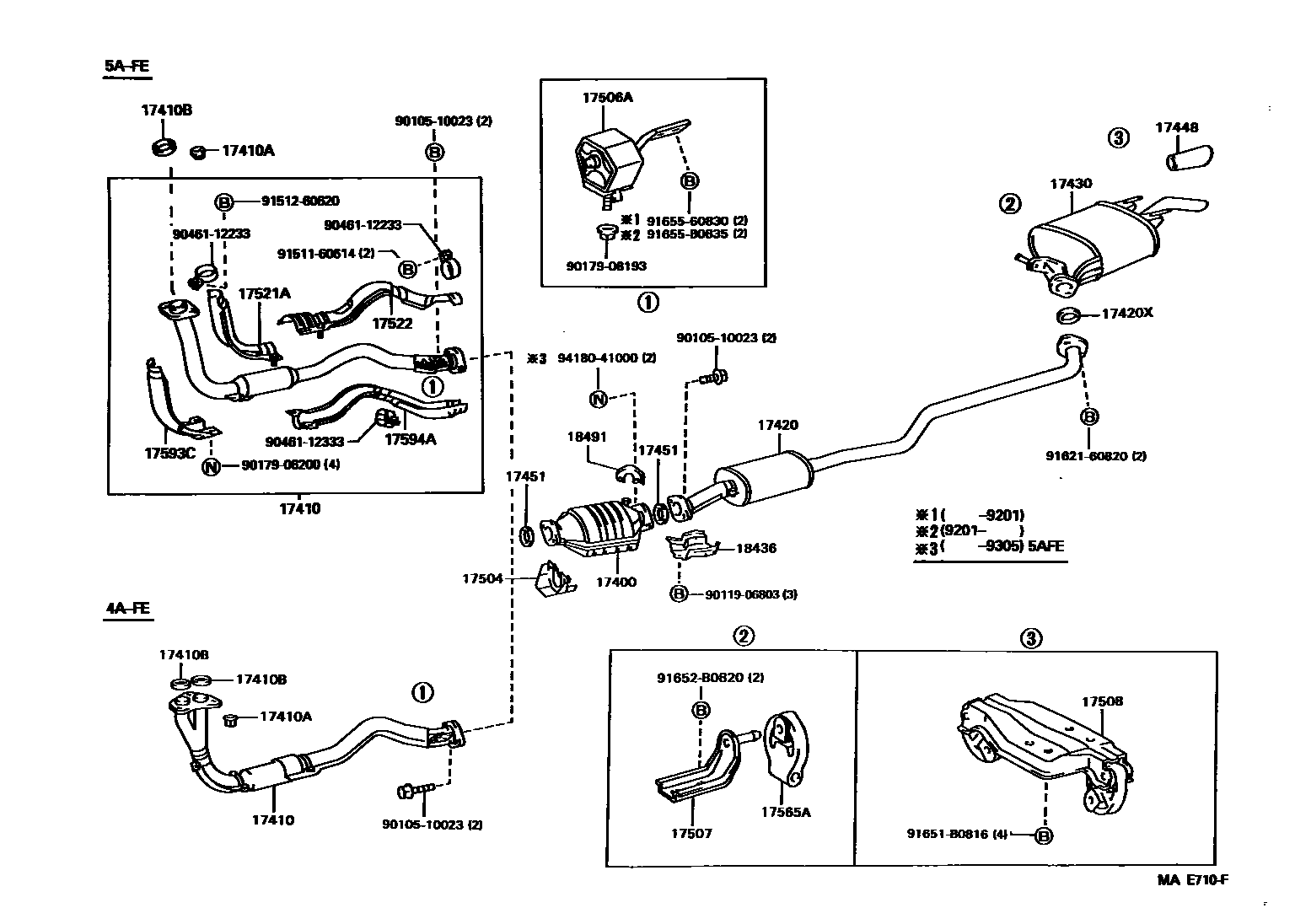

Toyota SPRINTER — EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1

17400CONVERTER ASSY, W/CATALYST

main18450-11150i5AFE,4EFE..AE100,EE101199305-199505

main18450-11170i4EFE,5EFE..EE102,103,104199401-199705

main18450-15140i2E,3E..EE106,107,108199106-199401

sub18450-11130

main18450-16540i4AFE..AE101199106-199305

sub18450-16650

main18450-16550i4AGE..AE101199106-199305

main18450-16640i4AGE..AE101199305-199505

main18450-16650i4AFE..AE101199305-199505

sub18450-16700

17410PIPE ASSY, EXHAUST, FRONT

main17410-11560i2E..EE106199109-199401

main17410-11570i3E..EE107,108199109-199401

main17410-11650i4EFE..EE101,102199305-199704

main17410-11660i5EFE..EE103,104199401-199704

main17410-11860i4EFE..EE102199704-200008

main17410-15241i4EFE..EE101199106-199305

main17410-15260i5AFE..AE100199106-199505

main17410-16780i4AFE..AE101199106-199505

main17410-16810i4AGE..AE101199106-199305

main17410-16820i4AFE..AE104199109-199505

main17410-1A120i4AGE..AE101199305-199505

sub17410-1A230

main17410-1A240i4AFE..AE109199605-199704

main17410-1A520i4AFE..AE109199704

main17410-1B120i5EFE..EE103,104199704-200008

main17410-1B280i4EFE..EE102200008

main17410-1B290i5EFE..EE103,104200008

main17410-64401i2C..CE104,109199109-199508

main17410-64530i2C..CE100199106-199201

sub17410-64532

sub91655-60835

main17410-64532i2C..CE100199201-199305

main17410-64550i2C..CE106,108199109-199201

sub17410-64551

sub91655-60835

main17410-64551i2C..CE106,108199201-199401

main17410-64600i2C..CE100199305-199505

sub17410-64601

main17410-64601i2C..CE106,108199505-199704

main17410-64700i2C..CE109199508-199804

main17410-64780i2C..CE106,108199704-199804

main17410-64830i3CE..CE105199804

main17410-64840i3CE..CE102,107199804

sub17410-53010

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i5AFE,2C..AE100,CE100199106-199705

17410BGASKET, EXHAUST PIPE

main17451-64030i3CE..CE105199804

sub17451-64031

main90917-06061i2C,2E,3E,4EFE..CE104,106,108,109,EE10#199106-199804

main90917-06061i3CE..CE102,107199804

main90917-06061i2C..CE106,108199704-199804

main90917-06064i4AFE..AE101,104,109199106

main90917-06065i5AFE..AE100199106-199505

main90917-06077i2C..CE100199305-199704

main90917-06080i3CE..CE102,107199804

main90917-06080i3CE..CE105199804

main90917-06080i2C..CE106,108199704-199804

main90917-06080i4EFE,5EFE..EE10#199704

17420PIPE ASSY, EXHAUST, CENTER

main17420-11210i4EFE..EE101199106-199305

main17420-11220i2E,3E..EE106,107,108199109-199401

main17420-11300i4EFE,5EFE..EE102,103,104199401-199704

main17420-11430i4EFE,5EFE..EE10#199704-200008

main17420-11510i4EFE,5EFE..EE10#200008

sub17420-11430

main17420-15150i5AFE..AE100199106-199505

main17420-16350i4AFE..AE101199106-199505

main17420-16540i4AGE..AE101199106-199505

main17420-16560i4AFE..AE104199109-199505

main17420-16700i4AFE,3CE..AE109,CE105199605

main17420-64130i2C..CE100199106-199201

sub17420-64131

main17420-64131i2C..CE100199201-199305

main17420-64140i2C..CE104199109-199505

main17420-64150i2C..CE106,108199109-199201

sub17420-64151

main17420-64151i2C..CE106,108199201-199401

main17420-64160i2C..CE109199109-199804

main17420-64200i2C..CE100199305-199505

main17420-64220i2C..CE106,108199401-199704

main17420-64300i2C..CE106,108199704-199804

main17420-64340i3CE..CE102,107199804

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06039i4AFE,2C,3CE..AE101,104,109,CE102,104,106,107,108,109199106

main90917-06039i4AGE..AE101199106-199505

main90917-06045i4AGE..AE101199106-199505

main90917-06060i5AFE,2E,3E,4EFE,5EFE..AE100,EE10#199106

main90917-06074i2C..CE100199106-199505

17430PIPE ASSY, EXHAUST, TAIL

main17430-11620i2E..EE106199109-199401

main17430-11630i3E..EE107,108199109-199401

sub17430-11631

main17430-11631i4EFE,5EFE..EE102,103,104199401-200008

main17430-15540i5AFE,4EFE..AE100,EE101199106-199505

main17430-1A010i4AFE..AE101199106-199505

main17430-1A070i4AGE..AE101199106-199505

main17430-1A080i4AFE,2C..AE104,CE104199109-199505

main17430-1A730i4AFE,3CE..AE109,CE105199605

main17430-1B230i4EFE,5EFE..EE10#200008

main17430-64680i2C..CE100199106-199505

main17430-64690i2C..CE106,108199109-199401

sub17430-64691

main17430-64691i2C..CE106,108199401-199804

main17430-64700i2C..CE109199109-199401

sub17430-64701

main17430-64701i2C..CE109199401-199804

main17430-6A350i3CE..CE102,107199804

main17440-16010i4AGE..AE101199106-199505

17448BAFFLE, TAILPIPE

main17448-43010i4AFE..AE101199106-199505

17451GASKET, EXHAUST PIPE

main90917-06039i4AFE..AE104199106-199804

main90917-06043i4A#..AE101199106-199505

main90917-06044i5AFE,2E,3E,4EFE,5EFE..AE100,EE10#199106-199705

main90917-06045i5AFE,2E,3E,4EFE,5EFE..AE100,EE10#199106-199705

main90917-06045i2C..CE100199305-199704

main90917-06054i4AGE..AE101199106-199505

main90917-06057i4AFE..AE101199106-199505

main90917-06074i2C..CE106,108199106-199401

main90917-06082i2C,3CE,4EFE,5EFE..CE102,106,107,108,EE10#199704

17504BRACKET SUB-ASSY, CATALYTIC CONVERTER

main17504-16020i5AFE,2E,3E..AE100,EE106,107,108199106-199705

main17504-16030i4A#..AE101199106-199505

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-11100i4EFE,5EFE..EE10#199704

main17506-15070i4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE100,101,CE100,106,108,EE10#199106-199502

sub17506-16120

main17506-16080i4AFE..AE104199109-199502

sub17506-16130

main17506-16100i4AFE..AE109199605-199607

main17506-16120i4A#,5AFE,2C,4EFE,5EFE..AE100,101,CE100,106,108,EE10#199502-199704

main17506-16130i4AFE..AE104199502-199505

main17506-16130i4AFE..AE109199607

main17506-16150i3CE..CE105199804

main17506-64020i4AFE..AE109199605

main17506-64020i2C..CE109199109-199804

main17506-64020i3CE..CE105199804

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-11050i4AFE,2C,3CE,2E,3E,4EFE,5EFE..AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main17507-15040i4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101199106-199505

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-11060i2C,2E,3E..CE106,108,EE106,107,108199109-199310

main17508-11080i2C,3CE,2E,3E,4EFE,5EFE..CE102,106,107,108,EE102,103,104,106,107,108199310

main17508-15050i4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101199106-199505

main17508-16050i4AFE,2C..AE104,CE104199109-199505

main17508-64040i4AFE,2C,3CE..AE109,CE105,109199109

17521PROTECTOR, EXHAUST PIPE, FRONT NO.1

main17521-11230i4EFE,5EFE..EE10#200008

17521APROTECTOR, EXHAUST PIPE, UPPER NO.1

main17521-11110i2E,3E..EE106,107,108199109-199401

main17521-11140i4EFE..EE101,102199305-199704

main17521-11150i5EFE..EE103,104199401-199704

main17521-11180i4EFE,5EFE..EE10#199704-200008

main17521-15130i5AFE..AE100199106-199505

main17521-16350i4AFE..AE104,109199109-199705

main17521-64040i2C..CE106,108199106-199401

main17521-64100i2C..CE100199305-199704

main17521-64170i2C,3CE..CE102,106,107,108199704

17522PROTECTOR, EXHAUST PIPE, UPPER NO.2

main17521-11110i4EFE,5EFE..EE101,102,103,104199305-199704

main17522-11120i4EFE,5EFE..EE10#199704

main17522-15130i4EFE..EE101199106-199305

main17522-15140i5AFE..AE100199106-199505

main17522-16190i4AFE..AE104199109-199505

main17522-16260i4AFE..AE109199605-199705

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160i3CE..CE10#199804

main17565-11160i4AFE,2C..AE104,CE104199109-199804

main17565-11160i4AFE,2C..AE109,CE109199109

CENTER FR,TAIL RR

main17565-15140i4AFE,2C..AE109,CE109199109

CENTER RR,TAIL FR

main17565-15140i2C,2E,3E,4EFE,5EFE..CE106,108,EE102,103,104,106,107,108199109-199704

main17565-15140i2C..CE106,108199704-199804

main17565-15140i3CE..CE10#199804

main17565-16230i4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101199106-199505

sub17565-28020

main17565-16230i4AFE,2C..AE104,CE104199109-199505

TAIL PIPE FRONT

sub17565-28020

17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1

main17593-11150i2E,3E..EE106,107,108199109-199401

main17593-11200i4EFE..EE101,102199305-199704

main17593-11210i5EFE..EE103,104199401-199704

main17593-11260i4EFE,5EFE..EE10#199704-200008

main17593-11290i4EFE,5EFE..EE10#200008

main17593-15090i4EFE..EE101199106-199305

main17593-15140i5AFE..AE100199106-199505

main17593-16310i4AFE..AE104,109199109-199705

main17593-64040i2C..CE100,106,108199106-199401

main17593-64090i2C..CE100,106,108199305-199704

main17593-64140i2C,3CE..CE102,106,107,108199704

17594APROTECTOR, EXHAUST PIPE, LOWER NO.2

main17594-11260i2E,3E..EE106,107,108199109-199704

main17594-11300i4EFE,5EFE..EE10#199704

main17594-15140i4EFE..EE101199106-199305

main17594-15160i5AFE..AE100199106-199505

main17594-16240i4AFE..AE104199109-199505

main17594-16320i4AFE..AE109199605-199705

18436PROTECTOR, MONOLITHIC CONVERTER, NO.1

main17504-11010i5AFE,4EFE,5EFE..AE100,EE101,102,103,104199305-199705

main18436-16030i4A#..AE101199106-199505

main18436-63010i2E,3E..EE106,107,108199106-199401

18491FLANGE, THERMOSENSOR INLET

main18491-16010i4A#,5AFE,2E,3E,4EFE,5EFE..AE100,101,EE10#199302-199705

main18491-16020i4AFE..AE104,109199109-199711

main18491-63010i4A#,5AFE,2E,3E..AE100,101,EE106,107,108199106-199305

9010510023

main90105-10023

9011906803

main90119-06803

9017906200

main90179-06200

9017908193

main90179-08193

9046112233

main90461-12233

9046112333

main90461-12333

9151160614

main91511-60614

9151260620

main91512-60620

9162160820

main91621-60820

91651B0816

main91651-B0816

91652B0820

main91652-B0820

9165560830

main91655-60830

91655B0835

main91655-B0835

9418041000

main94180-41000

35 parts on this diagram · 18 diagrams in section
