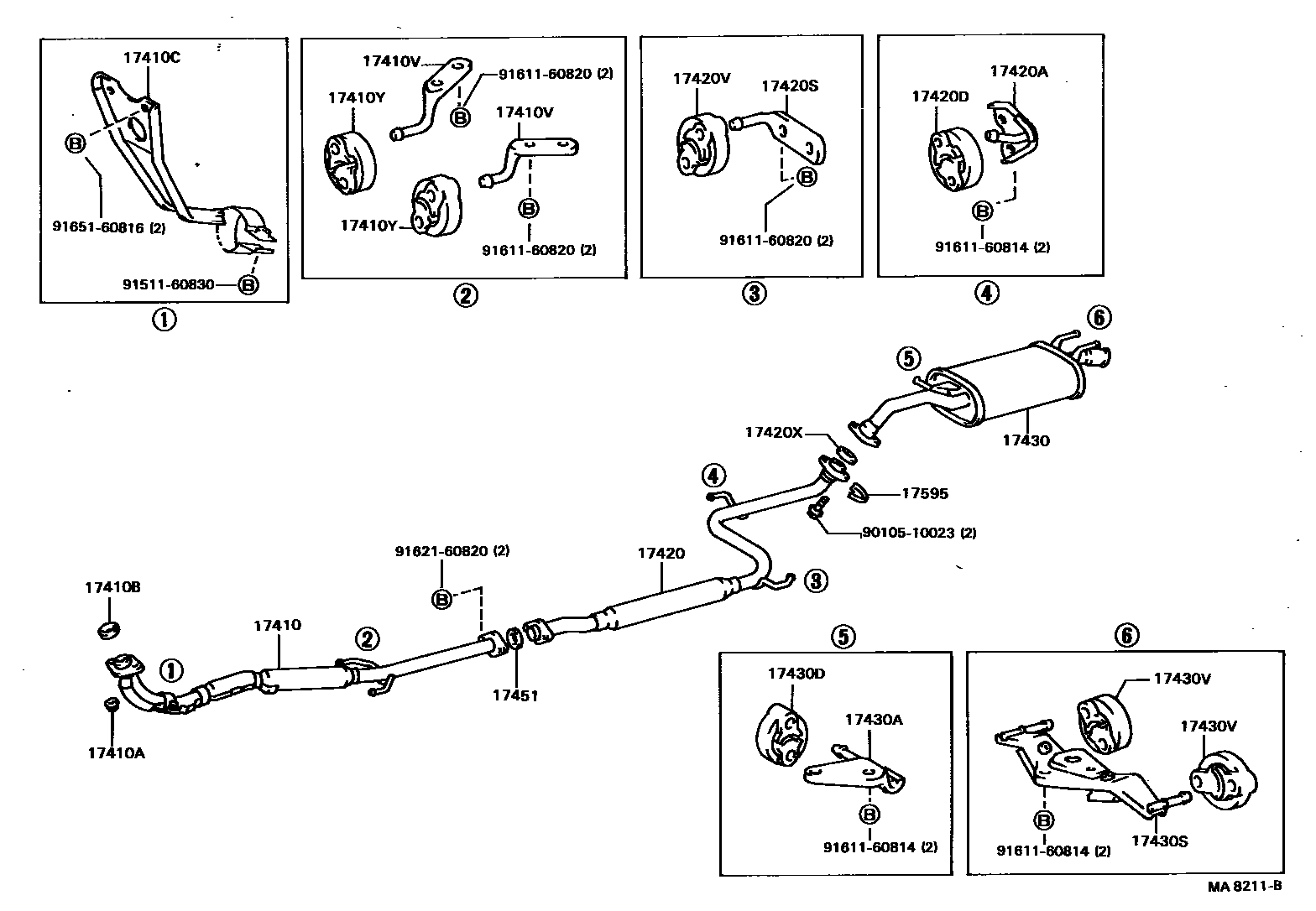

Toyota SPRINTER — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
W/KNOCK CONTROL
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
RH
RH
LH
LH
17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)
CTR
LH
LH
RH
RH
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17420PIPE ASSY, EXHAUST, CENTER
*52
17420ABRACKET, EXHAUST PIPE CENTER, FRONT
17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT
17420SBRACKET, EXHAUST PIPE CENTER, REAR
17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
17595PROTECTOR, EXHAUST PIPE, LOWER NO.3
9010510023
main90105-10023
9151160830
main91511-60830
9161160814
main91611-60814
9161160820
main91611-60820
9162160820
main91621-60820
9165160816
main91651-60816
25 parts on this diagram · 3 diagrams in section
EXHAUST PIPE for Toyota SPRINTER
This section contains 38 genuine Toyota parts for the EXHAUST PIPE system of the Toyota SPRINTER. Key components include: CONVERTER ASSY, W/CATALYST, FLANGE, THERMOSENSER INLET, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE.
