Toyota SPRINTER — EXHAUST GAS RECIRCULATION SYSTEM

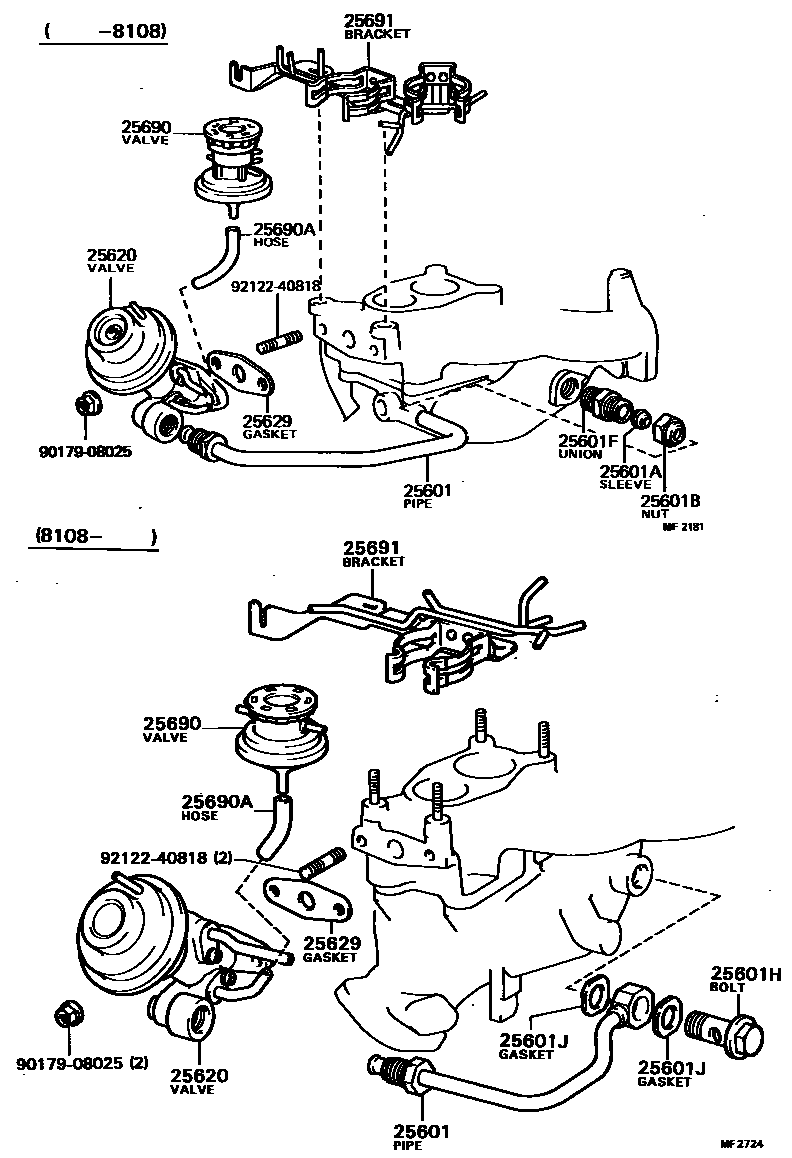

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-13010i197903-198108

main25601-15010i197903-198108

main25601-15020i198108-198304

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16001i197903-198108

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22008i197903-198108

25601FUNION(FOR EGR PIPE, NO.1)

main90404-22004i197903-198108

25601HBOLT, UNION(FOR EGR PIPE,NO.1)

main90401-20003i198108-198304

25601JGASKET(FOR EGR PIPE, NO.1)

main90430-20005×2i198108-198304

25620VALVE ASSY, EGR

main25620-13010i197903-198004

main25620-13011i198004-198108

main25620-13020i197903-198004

main25620-13022i198004-198108

main25620-13130i198108-198304

main25620-13140i198108-198201

main25620-13200i198201-198304

main25620-15020i197903-198108

main25620-15100i197910-198108

main25620-15170i198108-198304

main25620-18010i197908-198108

25629GASKET, EGR VALVE ADAPTER

main25629-15010i197903-198203

main25629-15011i198203-198304

25690MODULATOR ASSY, EGR VACUUM

main25690-13010i197903-198108

main25690-28010i197908-198108

main25870-13010i197903-198108

main25870-13040i198108-198304

main25870-15020i197903-198108

main25870-15040i197910-198108

main25870-15100i198108-198304

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11017i197903-198108

main90445-11020i197908-198108

main90445-11026i197903-198304

main90445-11041i198108-198304

25691BRACKET, EGR VACUUM MODULATOR

main25691-15020i197903-198108

main25691-15070i198108-198210

main25691-15071i198210-198304

main25691-27011i197908-198108

9017908025

main90179-08025

9212240818

main92122-40818

13 parts on this diagram · 3 diagrams in section
