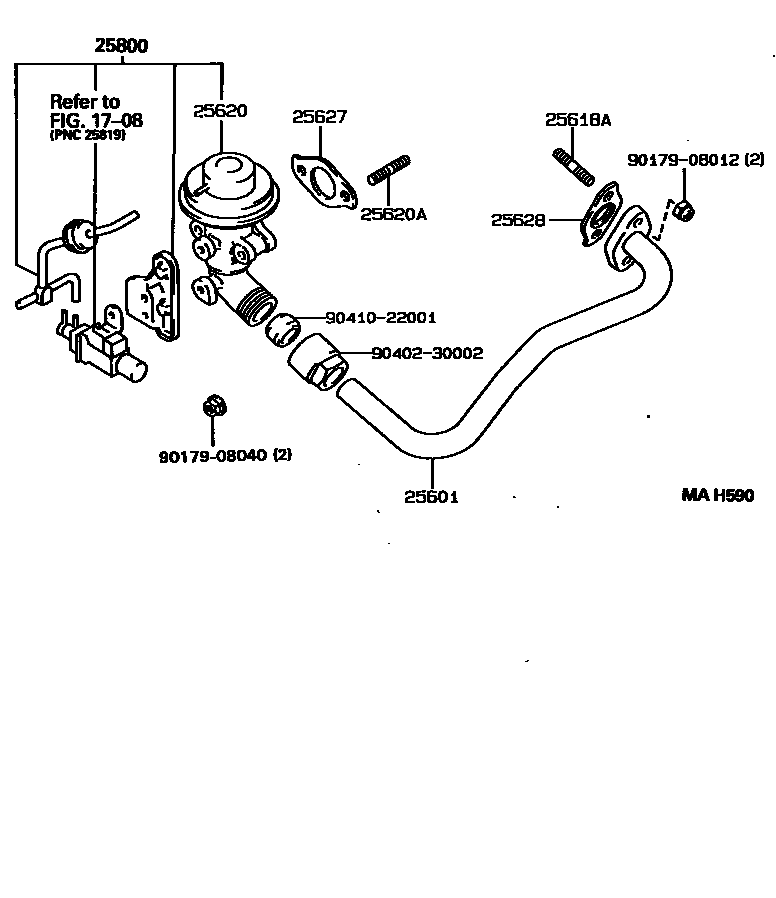

Toyota SPRINTER — EXHAUST GAS RECIRCULATION SYSTEM

1708

25601PIPE SUB-ASSY, EGR, NO.1

main25601-64030i2C..CE100,104,108199106-199401

sub25601-64031

main25601-64070i2C..CE108;2C..CE106..4FC199508-199707

main25601-64071i2C..CE106..4FC;2C,3CE..CE102,105,107,108199707

25618ABOLT, STUD(FOR EGR INLET)

main92122-60822×2i2C..CE100,104,108199106-199401

25620VALVE ASSY, EGR

main25620-64080i2C..CE100,104,108199106-199401

main25620-64150i2C..CE108..5F199508-199804

main25620-64200i3CE..CE10#199804

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08198×2i2C..CE100,104,108199106-199401

25627GASKET, EGR VALVE

main25627-64030i2C..CE100,104,108199106-199401

25628GASKET, EGR INLET

main25628-64030i2C..CE100,104,108199106-199401

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-64060i2C..CE100,104,108199106-199401

main25800-64090i2C..CE108..5F199508-199804

main25800-64160i3CE..CE10#199804

9017908012

main90179-08012

9017908040

main90179-08040

9040230002

main90402-30002

9041022001

main90410-22001

12 parts on this diagram · 1 diagram in section
