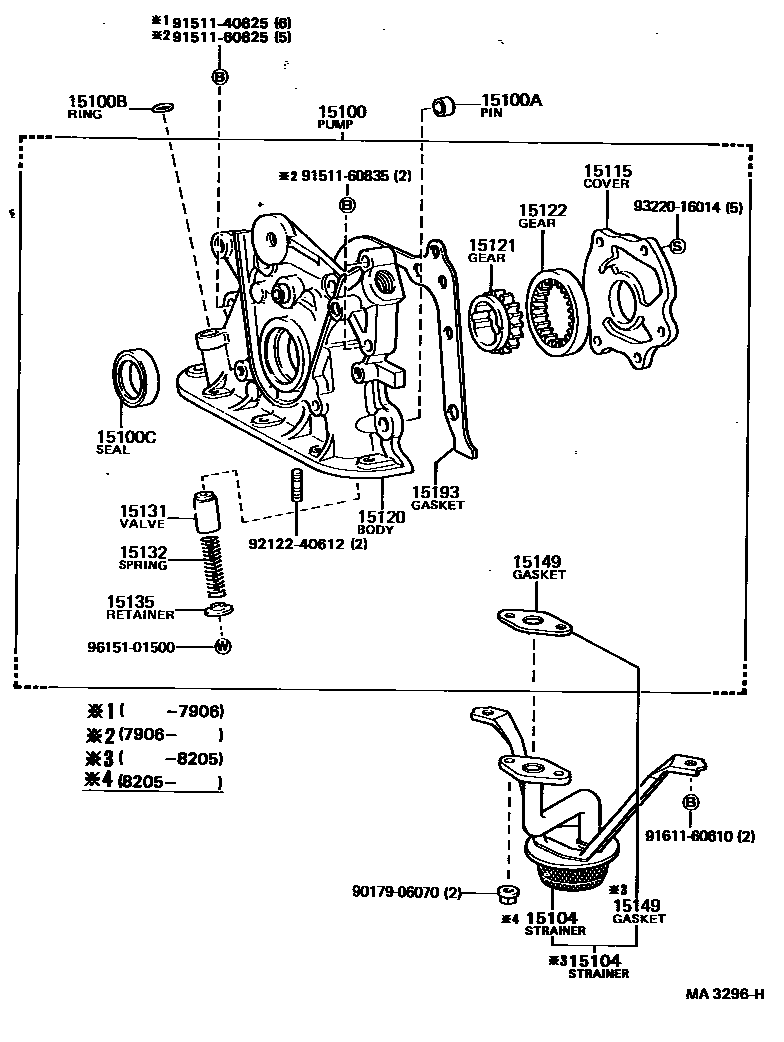

Toyota SPRINTER — ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15100PUMP ASSY, OIL

main15100-13010i4KU..KE70197903-198009

main15100-13011i4KU..KE70198009-198304

sub15100-13030

main15100-19015i3AU..AE70197903-198304

sub15100-15020

main15100-25020i13TU,2TGEU..TE7#197903-198304

main15100-64010i1C..CE70198202-198207

main15100-64011i1C..CE70198207-198304

sub15100-64012

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i1C..CE70197903-198304

15100BRING, O(FOR OIL PUMP)

main96710-01010i3AU..AE70197903-198112

main96711-19010i3AU..AE70198112-198304

15100CSEAL(FOR OIL PUMP)

main15165-64010i1C..CE70198202-198304

ROTOR,NOK

main15165-64011i1C..CE70198202-198304

ROTOR,ARAI

main90311-32001i3AU..AE70197903-198304

sub90311-32018

main90311-42003i1C..CE70198202-198304

CRANKSHAFT

sub90311-42026

15104STRAINER SUB-ASSY, OIL

main15104-15080i3AU..AE70198205-198304

sub15104-15090

main15104-19025i3AU..AE70197903-198205

main15104-64010i1C..CE70198202-198304

15115COVER, OIL PUMP

main15012-13010i4KU..KE70197903-198304

sub15012-13030

main15012-25020i13TU,2TGEU..TE7#197903-198304

main15115-15010i3AU..AE70197903-198304

15120BODY SUB-ASSY, OIL PUMP

main15120-15010i3AU..AE70197903-198101

main15120-15011i3AU..AE70198101-198304

15121GEAR, OIL PUMP DRIVE

main15121-15010i3AU..AE70197903-198304

15122GEAR, OIL PUMP DRIVEN

main15122-15010i3AU..AE70197903-198304

15131VALVE, OIL PUMP RELIEF

main15131-22010i1C..CE70197903-198212

main15131-24010i4KU..KE70197903-198304

main15131-64020i1C..CE70198212-198304

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i13TU,2TGEU..TE7#197903-198304

main15132-76011i1C..CE70198202-198304

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-13010i4KU..KE70197903-198304

main15135-15010i3AU..AE70197903-198304

15149GASKET, OIL STRAINER FLANGE

main15149-15010i3AU..AE70197903-198304

sub15149-15011

15193GASKET, OIL PUMP

main15193-64020i1C..CE70198202-198207

main15193-64021i1C..CE70198207-198304

sub15193-64022

main15197-15010i3AU..AE70197903-198101

main15197-15011i3AU..AE70198101-198304

sub15197-15012

9017906070

main90179-06070

9151140825

main91511-40825

9151160825

main91511-60825

9151160835

main91511-60835

9161160610

main91611-60610

9212240612

main92122-40612

9322016014

main93220-16014

9615101500

main96151-01500

22 parts on this diagram · 4 diagrams in section
