Toyota SPRINTER — ENGINE OIL PUMP

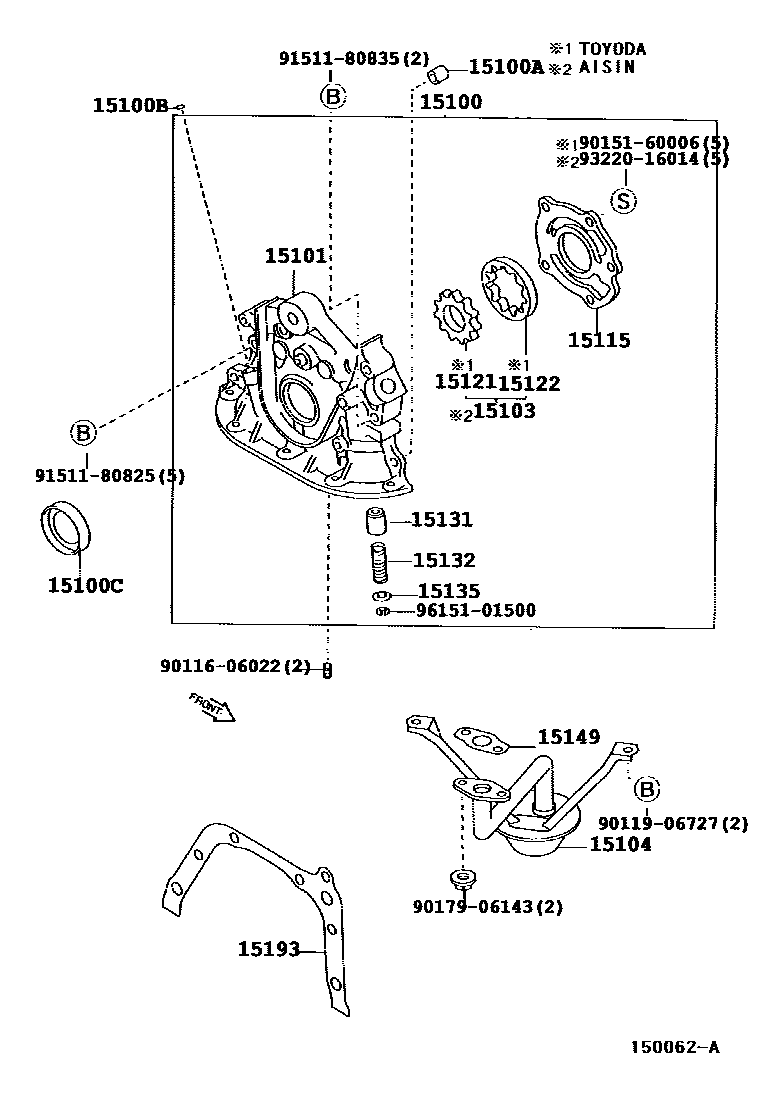

Parts diagram
15100PUMP ASSY, OIL
main15100-11071i199505-199704
main15100-11110i199704-200008
main15100-15060i199505-199704
main15100-19045i199704-200008
main15100-64040i199704-199812
main15100-64041i199812-199906
main15100-64042i199906-200008
15100APIN, RING(FOR OIL PUMP SET)
main90253-09001×2i199505-199704
main90253-11021×2i199505-199704
15100BRING, O(FOR OIL PUMP)
main90301-62006i199505-199704
main96721-19010i199505-199704
15100CSEAL(FOR OIL PUMP)
main90029-21020i199704-200008
main90311-32002i199912-200003
main90311-32018i199505-199702
main90311-32020i200003-200008
15101BODY SUB-ASSY, OIL PUMP
main15011-15060i199505-199704
main15011-16080i199704-200008
main15101-15070i199704-200008
TOYODA KOUKI
15103GEAR SET, OIL PUMP
main15103-15020i199505-199704
main15103-16030i199704-200008
15104STRAINER SUB-ASSY, OIL
main15104-11180i199505-199704
main15104-15090i199505-199704
main15104-64070i199704-199804
main15104-64080i199804-200008
15115COVER, OIL PUMP
main15115-15020i199704-200008
main15115-16060i199505-199704
TOYODA KOUKI
main15115-16080i199704-200008
15121GEAR, OIL PUMP DRIVE
main15121-15040i199505-199704
15122GEAR, OIL PUMP DRIVEN
main15122-15040i199505-199704
15131VALVE, OIL PUMP RELIEF
main15131-15030i199505-199704
TOYODA KOUKI
main15131-24010i199505-199704
main15131-64020i199505-199704
main15131-64041i199812-200008
15132SPRING, OIL PUMP RELIEF VALVE
main15132-15030i199704-200008
TOYODA KOUKI
main15132-17010i199812-200008
main15132-40010i199704-200008
main15132-64012i199505-199704
15135RETAINER, OIL PUMP RELIEF VALVE
main15135-15010i199704-200008
main15135-15030i199704-200008
TOYODA KOUKI
15149GASKET, OIL STRAINER FLANGE
main15149-16010i199505-199704
15193GASKET, OIL PUMP
main15193-64021i199704-199804
main15193-64022×2i199804-200008
main15197-15030i199704-199908
main15197-16030i199908-200008
9011606022
main90116-06022
9011906727
main90119-06727
9015160006
main90151-60006
9017906143
main90179-06143
9151180825
main91511-80825
9151180835
main91511-80835
9322016014
main93220-16014
9615101500
main96151-01500

23 parts on this diagram · 4 diagrams in section

ENGINE OIL PUMP for Toyota SPRINTER

This section contains 45 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota SPRINTER. Key components include: TIMING GEAR COVER & REAR END PLATE, PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP).
