Toyota SPRINTER — ENGINE OIL PUMP

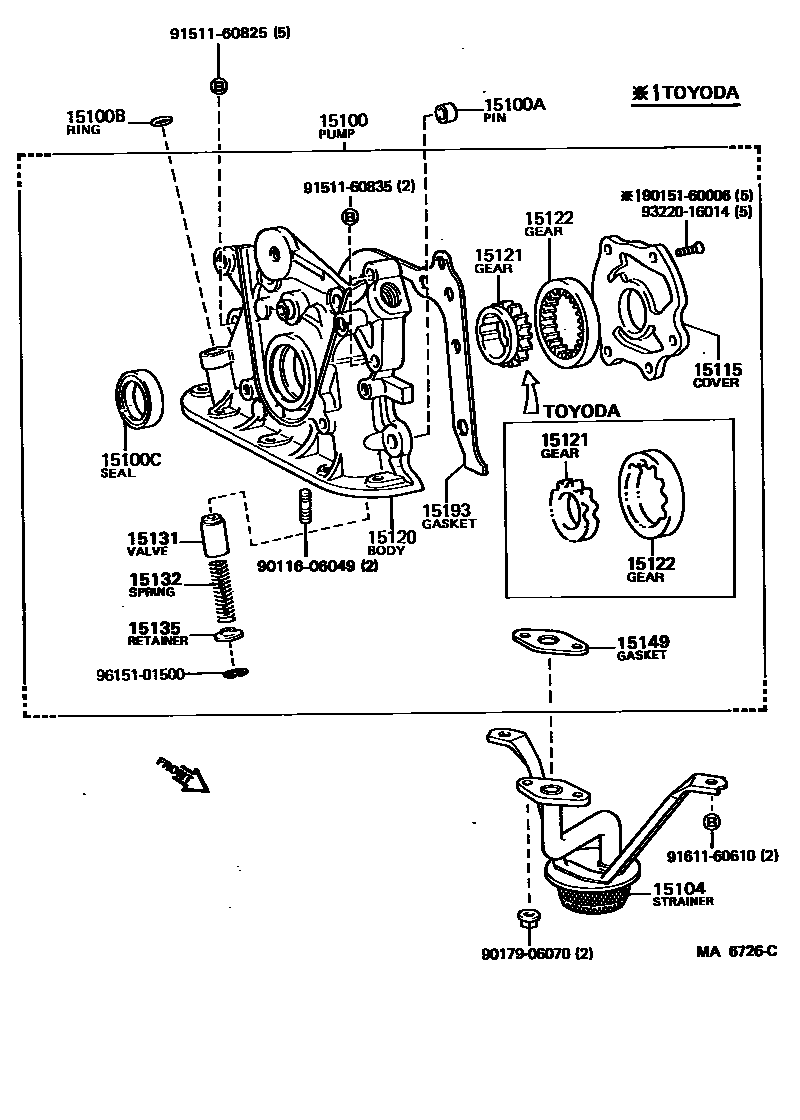

Parts diagram
15100PUMP ASSY, OIL
main15100-10020i198505-198604
main15100-11050i198604-198704
main15100-15020i198511-198704
main15100-19015i198305-198511
main15100-19025i198410-198704
main15100-64011i198305-198704
15100APIN, RING(FOR OIL PUMP SET)
main90253-09001×2i198505-198704
main90253-11021×2i198305-198704
15100BRING, O(FOR OIL PUMP)
main96711-19010i198305-198704
main96721-24056i198505-198704
15100CSEAL(FOR OIL PUMP)
main15165-64010i198305-198505
main90029-21005i198505-198604
main90029-21007i198505-198704
main90311-32001i198305-198704
15104STRAINER SUB-ASSY, OIL
main15104-10020i198505-198704
main15104-15080i198305-198704
main15104-64020i198305-198505
main15104-64021i198505-198704
15115COVER, OIL PUMP
main15115-15010i198305-198511
AISIN
main15115-15020i198511-198704
AISIN
main15115-15030i198505-198704
TOYODA
main15115-16010i198410-198704
15120BODY SUB-ASSY, OIL PUMP
main15101-15020i198511-198704
AISIN
main15101-15030i198505-198704
TOYODA
main15120-15011i198305-198511
AISIN
main15120-16010i198410-198704
15121GEAR, OIL PUMP DRIVE
main15121-15010i198305-198511
AISIN
main15121-15030i198505-198704
TOYODA
main15121-16010i198410-198704
15122GEAR, OIL PUMP DRIVEN
main15122-15010i198305-198511
AISIN
main15122-15030i198505-198704
TOYODA
main15122-16010i198410-198704
15131VALVE, OIL PUMP RELIEF
main15131-15030i198505-198704
TOYODA
main15131-24010i198305-198704
AISIN
main15131-64020i198305-198704
15132SPRING, OIL PUMP RELIEF VALVE
main15132-15030i198505-198704
TOYODA
main15132-40010i198305-198704
AISIN
main15132-76011i198305-198704
15135RETAINER, OIL PUMP RELIEF VALVE
main15135-15010i198305-198704
AISIN
main15135-15030i198505-198704
TOYODA
15149GASKET, OIL STRAINER FLANGE
main15149-15010i198305-198704
15193GASKET, OIL PUMP
main15193-64021i198305-198704
main15197-15011i198305-198704
9011606049
main90116-06049
9015160006
main90151-60006
9017906070
main90179-06070
9151160825
main91511-60825
9151160835
main91511-60835
9161160610
main91611-60610
9322016014
main93220-16014
9615101500
main96151-01500

22 parts on this diagram · 5 diagrams in section

ENGINE OIL PUMP for Toyota SPRINTER

This section contains 46 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota SPRINTER. Key components include: TIMING GEAR COVER & REAR END PLATE, PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP).
