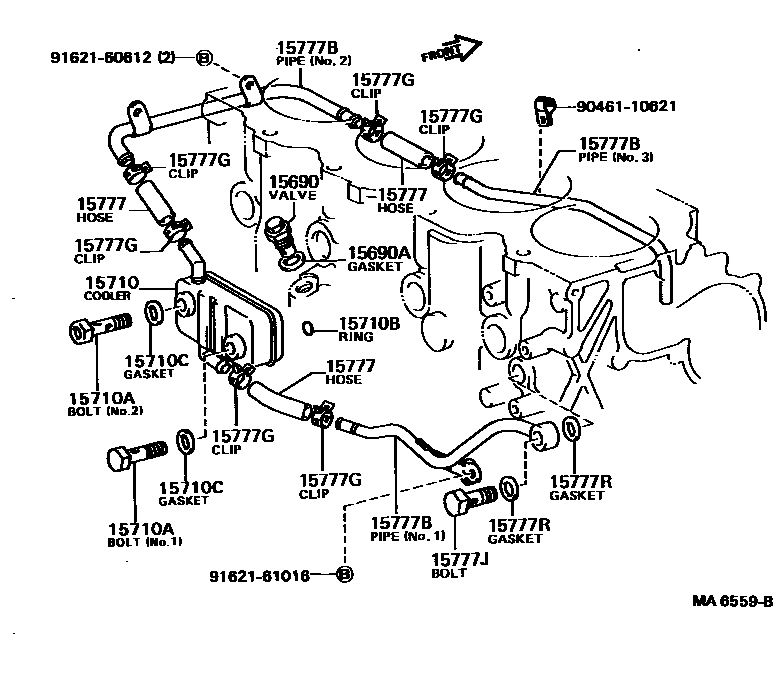

Toyota SPRINTER — ENGINE OIL COOLER

15690VALVE ASSY, OIL COOLER RELIEF

main15690-64010i198305-198704

15690AGASKET(FOR OIL COOLER RELIEF VALVE)

main90430-22003i198305-198704

15710COOLER ASSY, OIL

main15710-64010i198305-198704

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18009i198305-198704

NO.1

main90401-18011i198305-198704

NO.2

15710BRING, O(FOR OIL COOLER)

main90301-22002×2i198305-198704

15710CGASKET(FOR OIL COOLER)

main90430-18012×2i198305-198704

15777HOSE, OIL COOLER

main90445-21006×3i198305-198704

15777BPIPE, OIL COOLER

main15767-64010i198305-198704

NO.2

main15768-64030i198305-198608

NO.1

main15768-64031i198608-198704

NO.1

main15769-64010i198305-198704

NO.3

15777GCLAMP OR CRIP, HOSE

main90467-20005×6i198305-198704

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i198305-198704

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20004×2i198305-198704

9046110621

main90461-10621

9162160612

main91621-60612

9162161016

main91621-61016

14 parts on this diagram · 1 diagram in section

ENGINE OIL COOLER for Toyota SPRINTER

This section contains 14 genuine Toyota parts for the ENGINE OIL COOLER system of the Toyota SPRINTER. Key components include: VALVE ASSY, OIL COOLER RELIEF, GASKET(FOR OIL COOLER RELIEF VALVE), COOLER ASSY, OIL, BOLT, UNION(FOR OIL COOLER), RING, O(FOR OIL COOLER).
