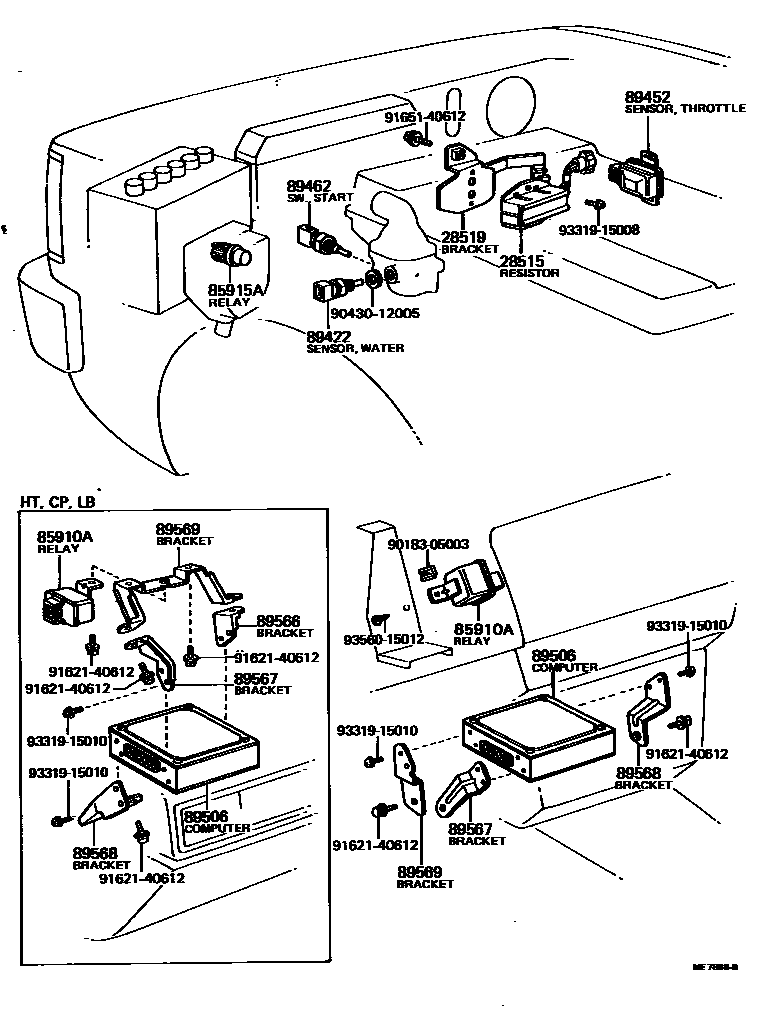

Toyota SPRINTER — ELECTRONIC FUEL INJECTION SYSTEM
28515RESISTOR, SOLENOID
28519BRACKET, SOLENOID RESISTOR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85915ARELAY, MAIN
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
sub89422-12010
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89506COMPUTER SET, FUEL INJECTION
89566BRACKET, FUEL INJECTION COMPUTER
89567BRACKET, FUEL INJECTION COMPUTER
89568BRACKET, FUEL INJECTION COMPUTER
89569BRACKET, FUEL INJECTION COMPUTER
9018305003
main90183-05003
9043012005
main90430-12005
9162140612
main91621-40612
9165140612
main91651-40612
9331915008
main93319-15008
9331915010
main93319-15010
9356015012
main93560-15012
19 parts on this diagram · 2 diagrams in section
