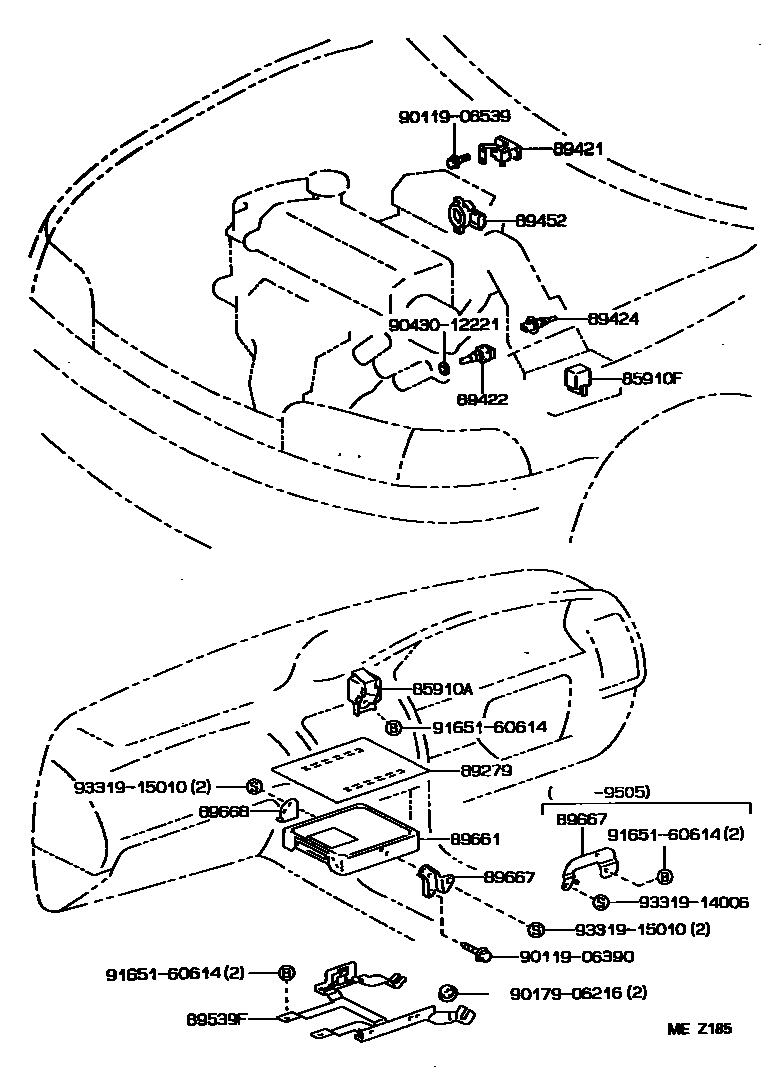

Toyota SPRINTER — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12020iAE10#,EE101,102,103,104..DX,DXJ,L,LX,SEG,SEL,XE,XL199106

main85910-12030iAE101..GT199106-199505

85910FRELAY, COMPUTER (FOR EFI)

main85915-26010iAE109,EE10#199804

main90987-02009iAE10#,EE101,102,103,104199106-199804

89279COVER, ENGINE CONTROL COMPUTER

main89279-12080iAE100,104;AE101..5F;AE101..4FC..GT199402-199407

main89279-12100iAE109;AE101..4FC..SEG199307-199704

main89279-12110iAE101..5F;AE101..4FC..GT;AE100,104,EE10#199407-199508

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-12060iEE101199305-199401

FUJI

main89420-12070iAE10#..DX,LX,SEG,SEL,XE199305-199401

main89420-12170iEE10#199704

main89420-12190iAE109199808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEE10#199704

main89422-20010iEE101,102,103,104199106-199704

main89422-22030iEE10#199704

main89422-35010iAE10#199106

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE10#,EE101,102,103,104..DX,DXJ,L,LX,SEG,SEL,XE,XL199106

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEE10#199704-199807

main89452-12060iEE101,102,103,104199106-199704

main89452-20130iEE10#199807

main89452-22080iAE101..GT199106-199505

main89452-22090iAE10#..DX,LX,SEG,SEL,XE199106-199704

main89452-33030iAE109199704

89539FBRACKET, COMPUTER

main89539-12050iAE10#,EE101,102,103,104199106-199508

89661COMPUTER, ENGINE CONTROL

main89661-12700iEE101199106-199305

main89661-12730iAE100..3FC,5F199106-199305

sub89661-12731

main89661-12740iAE100..4FC199106-199305

sub89661-12741

main89661-12750iAE101..5F..SEG199106-199202

main89661-12751iAE101..5F..SEG199202-199305

main89661-12752iAE101..5F..SEG199305-199408

main89661-12753iAE101..5F..SEG199408-199505

main89661-12760iAE101..4FC..SEG199106-199202

main89661-12761iAE101..4FC..SEG199202-199305

main89661-12770iAE101..5F..GT199106-199205

main89661-12771iAE101..5F..GT199205-199305

main89661-12780iAE101..4FC..GT199106-199205

main89661-12781iAE101..4FC..GT199205-199305

main89661-12840iAE104199109-199202

main89661-12841iAE104199202-199305

main89661-12842iAE104199305-199408

main89661-12843iAE104199408-199505

main89661-1A120iAE100..3FC,5F199305-199505

main89661-1A130iAE100..4FC199305-199505

main89661-1A140iAE101..4FC..SEG199305-199505

main89661-1A180iAE101..4FC..GT199305-199505

main89661-1A190iAE101..5F..GT199305-199505

main89661-1A200iEE101199305-199505

main89661-1A260iEE102199401-199704

main89661-1A270iEE103,104199401-199704

main89661-1A310iAE109199605-199704

main89661-1A820iEE102199704-200008

main89661-1E110iAE109..5F199704-199804

main89661-1E120iAE109..4FC199704-199804

main89661-1E170iEE103,104199704-200008

main89661-1E250iAE109..5F199804

main89661-1E260iAE109..4FC199804

main89666-12330iEE10#200008

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12110iAE10#,EE101,102,103,104199106-199508

main89667-12120iAE109,EE10#199508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12050iAE10#,EE101,102,103,104199106

9011906390

main90119-06390

9011906539

main90119-06539

9017906216

main90179-06216

9043012221

main90430-12221

9165160614

main91651-60614

9331914006

main93319-14006

9331915010

main93319-15010

18 parts on this diagram · 3 diagrams in section
