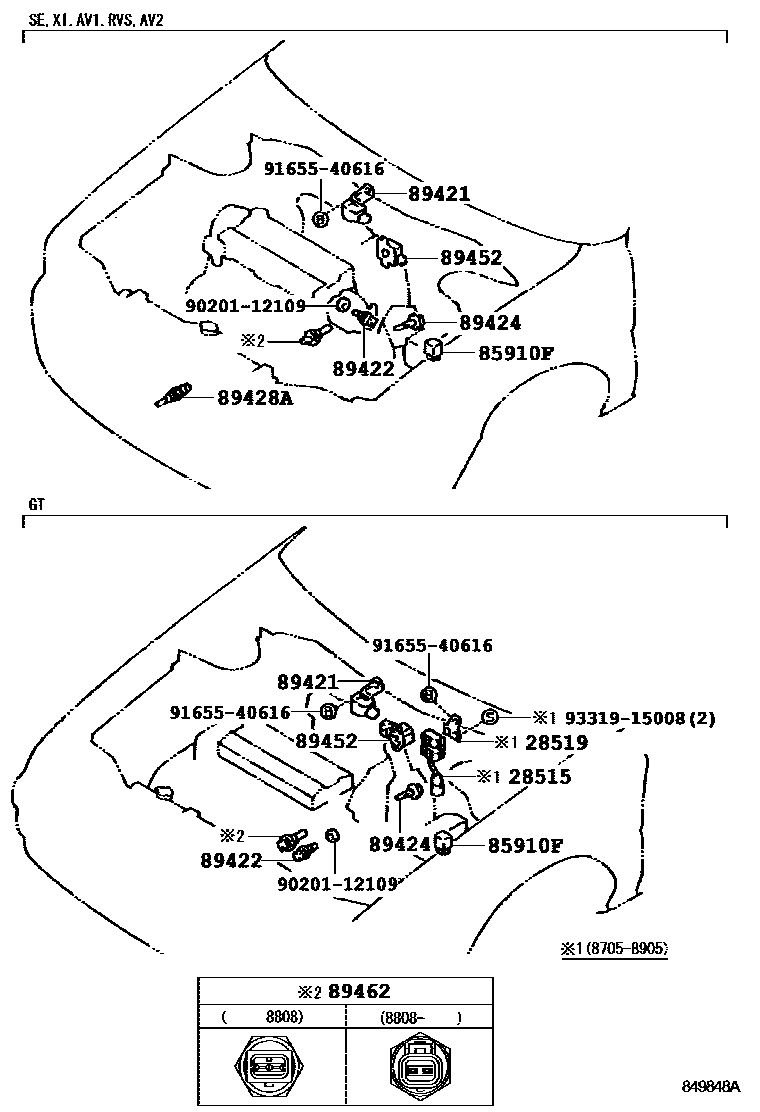

Toyota SPRINTER — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-16010i4AGE..AE92198705-198905

28519BRACKET, SOLENOID RESISTOR

main28519-16030i4AGE..AE92198705-198905

85910FRELAY, COMPUTER (FOR EFI)

main90987-02006iAE9#..EFI,EFIS198705-199106

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-12010iAE9#..EFI198705-198905

main89420-12040iAE9#..4D,5D198905-198908

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-12010iAE9#..EFI198705-198808

main89422-20010iAE9#..EFI,EFIS198808-199106

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE9#..EFI,EFIS198705-199106

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-12110iAE95..EFI198802-199106

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iAE95198905-199106

main89452-12040iAE92198705-198903

main89452-12050iAE92198705-198903

sub89452-33010

main89452-14020iAE91198905-199106

89462SWITCH, START INJECTOR TIME

main89462-12010iAE9#..EFI198705-198808

main89462-20030iAE9#..EFI198808-198905

9020112109

main90201-12109

9165540616

main91655-40616

9331915008

main93319-15008

12 parts on this diagram · 2 diagrams in section
