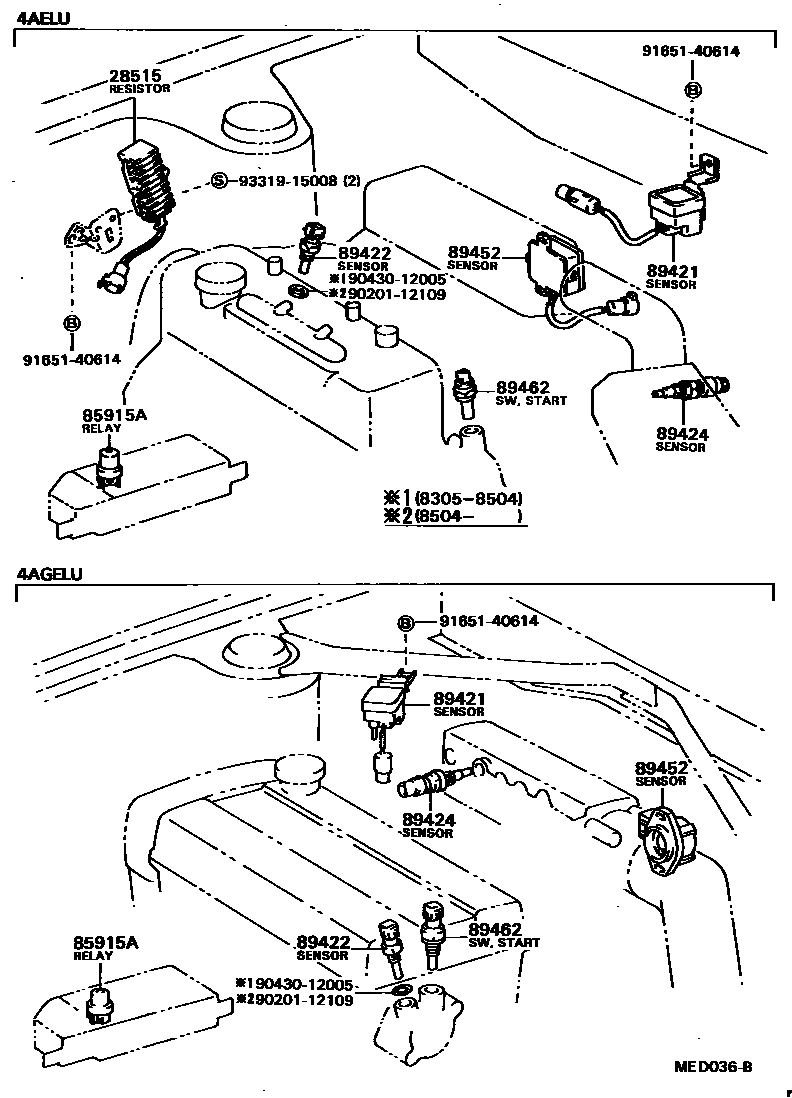

Toyota SPRINTER — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-52010i4AELU..AE82198305-198505

sub28515-11010

85915ARELAY, MAIN

main90987-02004iAE82198305-198704

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-12010iAE82..SE,SR,SX,ZX198305-198704

main89421-12030iAE82..GT198410-198704

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iAE82198305-198704

sub89422-12010

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iAE82198305-198704

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iAE82..5F..(SE,SR,SX,ZX)198305-198704

main89452-20070iAE82..GT198607-198704

main89452-22040iAE82..4FC..(SE,SR,SX,ZX)198305-198704

main89452-28010iAE82..GT198410-198607

89462SWITCH, START INJECTOR TIME

main89462-30011iAE82198305-198704

9020112109

main90201-12109

9043012005

main90430-12005

9165140614

main91651-40614

9331915008

main93319-15008

11 parts on this diagram · 2 diagrams in section
